Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the digital radio extension cable (5) to the I/P.
Engage the antenna cable clips (4, 6) to the I/P.

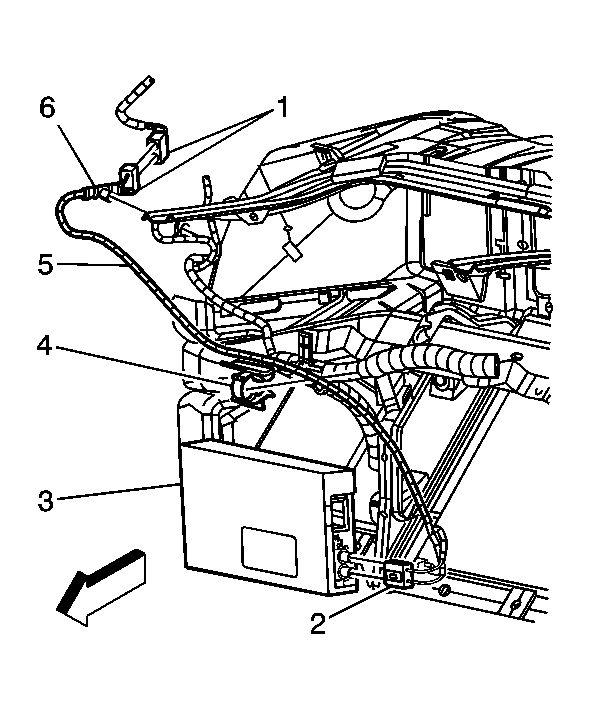

Fig 1: Installing Digital Receiver
Courtesy of GENERAL MOTORS CORP.
Connect the antenna cable (2) to the digital receiver (3).
Connect the digital radio antenna extension cable to the digital radio antenna cable (1).

Fig 2: Connecting Digital Radio Antenna Extension Cable To The Digital Radio Antenna Cable (1)
Courtesy of GENERAL MOTORS CORP.
Install the I/P upper trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Upper in Instrument Panel, Gages and Console.
Close the I/P storage compartment.
