Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open both doors.
  2. Remove the sill plate. Refer to Door Sill Plate Replacement - Front or Door Sill Plate Replacement - Rear in Interior Trim.
  3. Remove the hinge pillar trim pillar. Refer to Trim Panel Replacement - Hinge Pillar in Interior Trim.
  4. Remove the windshield pillar molding. Refer to Garnish Molding Replacement - Windshield Pillar in Interior Trim.
  5. Remove the weather-strip from the rear side door pinch-weld flange.

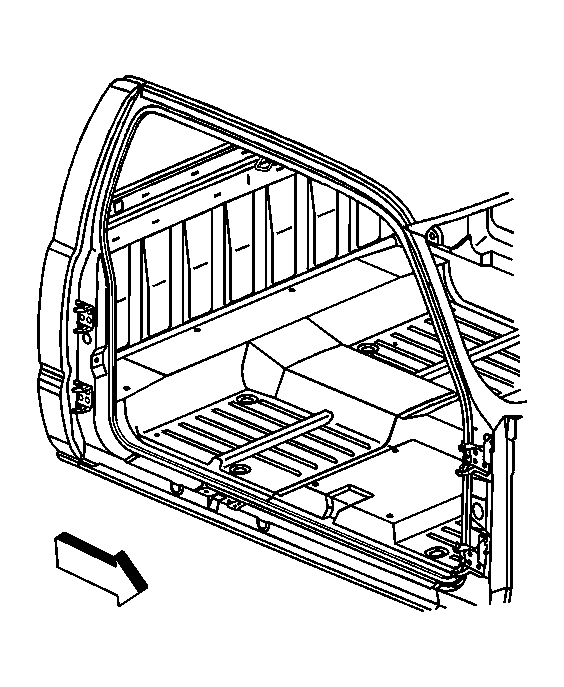

    Fig 1: Removing Side Door Opening Weatherstrip
    GM379214Courtesy of GENERAL MOTORS CORP.
