Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door handle bezel. Refer to Handle Bezel Replacement - Inside .
  2. Remove the screws that retain the trim panel armrest.
    3. Fig 1: Removing Trim Panel Armrest Retaining Screw
    GM370139Courtesy of GENERAL MOTORS CORP.
  3. Insert a flat-bladed tool between the trim panel and the door in order to carefully pry the panel from the door.

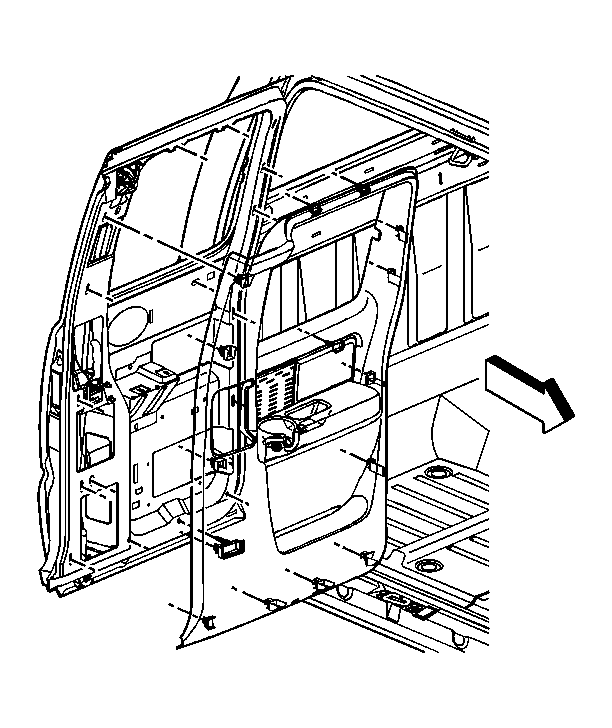

    4. Fig 2: Removing Side Access Door Trim Panel
    GM370137Courtesy of GENERAL MOTORS CORP.
