Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door (With YE9 Early Production)  or Trim Panel Replacement - Side Front Door (With YE9 Late Production) .
  2. Remove mirror. Refer to Mirror Replacement (Manual)  or Mirror Replacement (Power Mirror) .
  3. Remove the window. Refer to Window Replacement - Front Door .
  4. Remove the window module. Refer to Module Replacement - Front Power Window .
  5. Remove the inside door handle. Refer to Door Handle Replacement - Inside .
  6. Remove the outside door handle. Refer to Door Handle Replacement - Outside .
  7. Remove the door lock actuator. Refer to Lock Actuator Replacement - Front Door .
  8. Remove the weatherstrip from the door. Refer to Weatherstrip Replacement - Front Door .
  9. Disconnect the door wire harness. Refer to Wiring Harness Replacement - Door .
  10. Remove the door check link bolt from the pillar side.
  11. Remove the bolts from the upper door hinge and the lower door hinge.

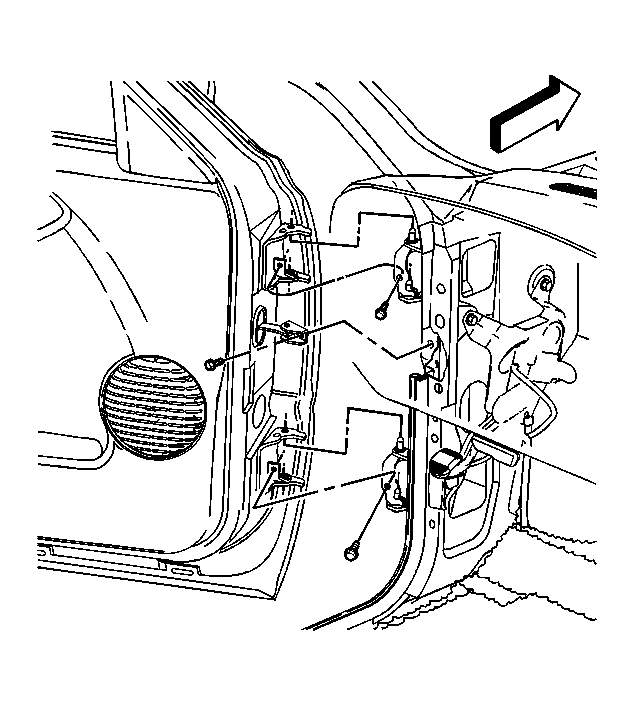

    12. Fig 1: Door Upper & Lower Hinge Bolts
    GM348485Courtesy of GENERAL MOTORS CORP.
  12. With an assistant, lift the door up from the hinge pins, and remove the door from the vehicle.
