Removal & Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1999 Oldsmobile Bravada, 1999 GMC Sonoma, 1999 GMC Jimmy, 1999 GMC Envoy, and 1999 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable. Remove Data Link Connector (DLC) from lower steering column trim panel. Disconnect remote control door lock receiver module electrical connectors. Remove lower steering column trim panel. Disconnect parking brake release cable from parking brake actuator. Remove courtesy light from knee bolster. Remove knee bolster.
  2. Remove instrument panel trim plate-to-instrument panel retaining screws. Remove trim plate from instrument panel. Remove 4 instrument cluster-to-instrument panel retaining screws. See Fig 1 . Disconnect electrical connectors. Remove instrument cluster. To install, reverse removal procedure.

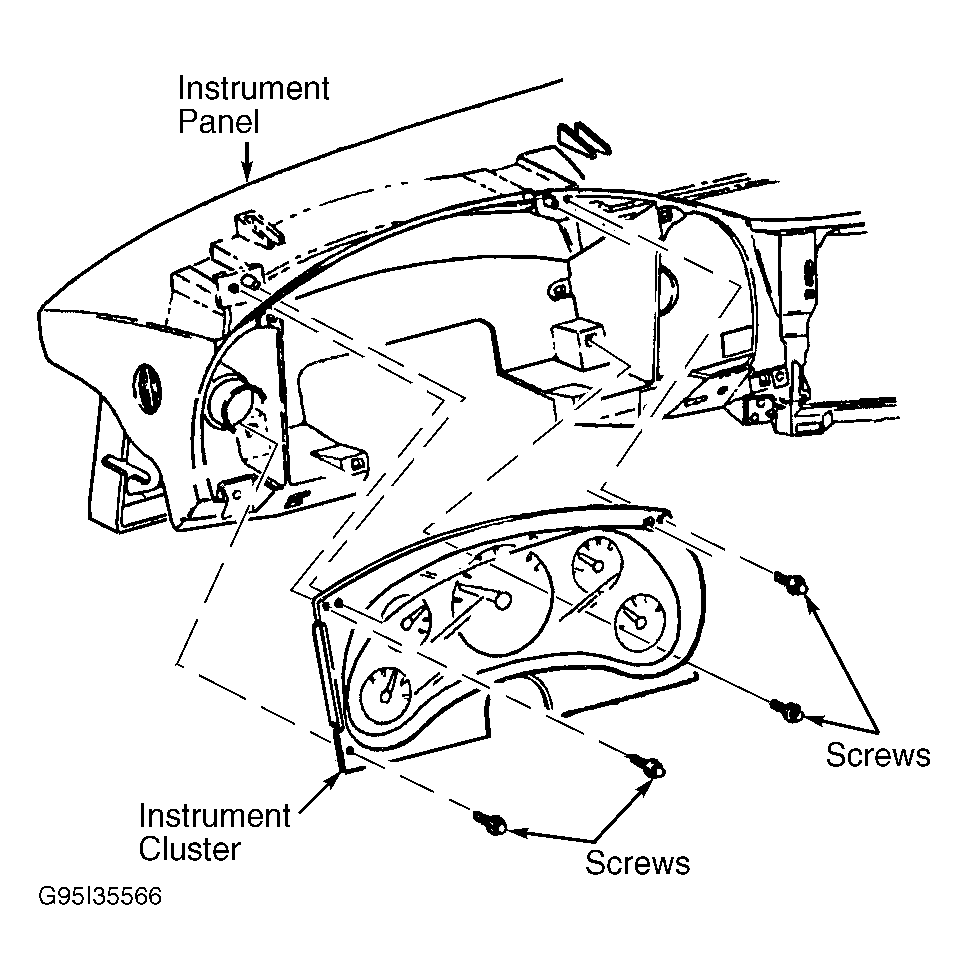

Fig 1: Exploded View Of Instrument Cluster (Typical)
G95I35566Courtesy of GENERAL MOTORS CORP.
