Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Upper in Instrument Panel, Gages and Console.
  2. Lower the headliner. Refer to Headliner Replacement in Interior Trim.
    3. Fig 1: View Of Antenna Base & Cables
    GM853340Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the cables from the antenna base.
    4. IMPORTANT: Observe the routing of the cables.
  4. Remove the cable retainers from the roof and pillar.

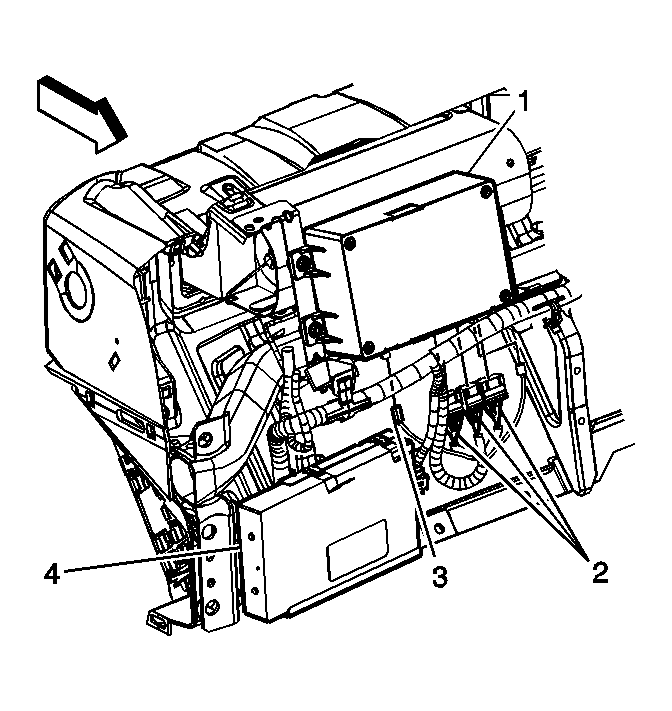

    5. Fig 2: Disconnecting The Cable (3) From The Module
    GM854863Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the cable (3) from the module.
