Special Tools and Equipment

WARNING: This page is about a different car, the 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

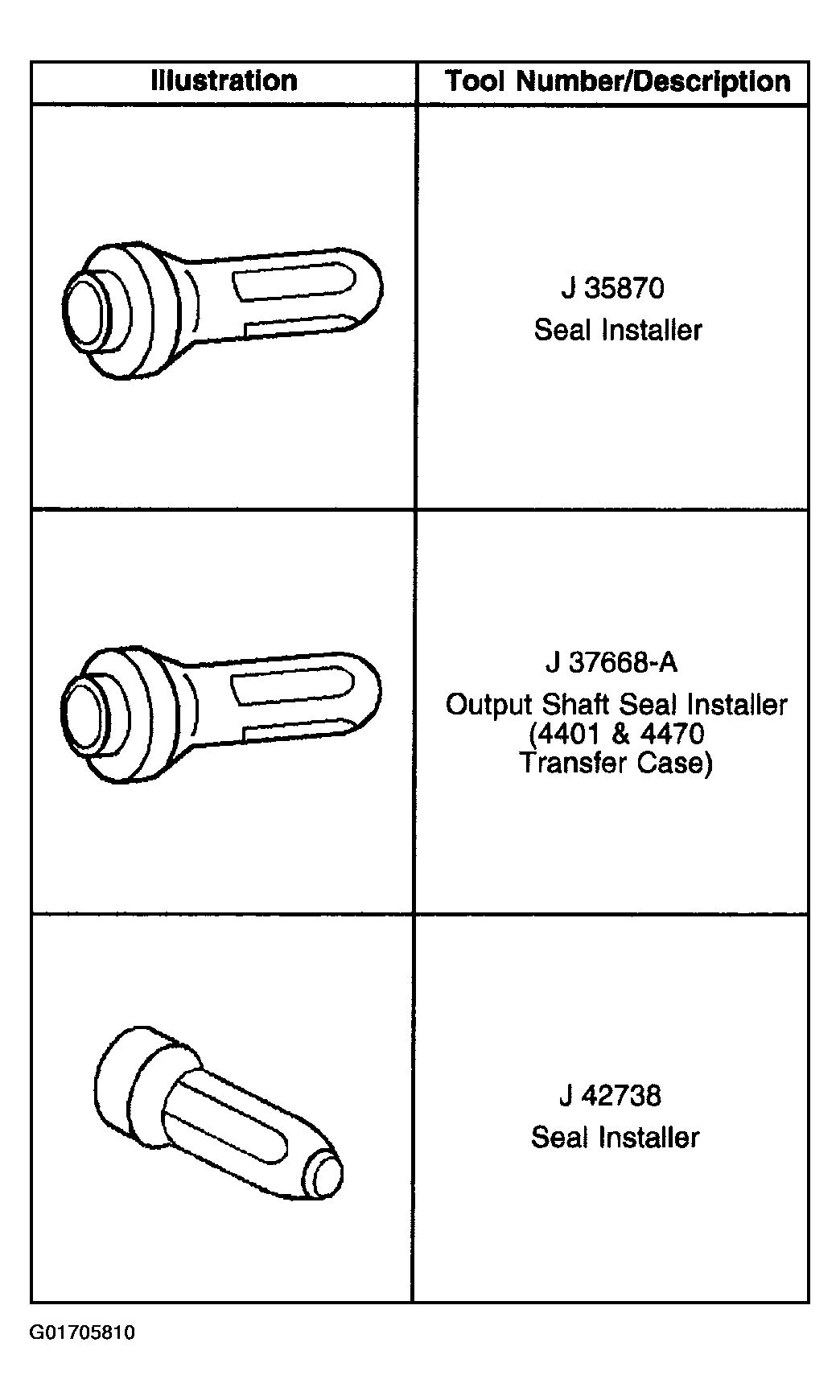

Fig 1: Special Tools And Equipment (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

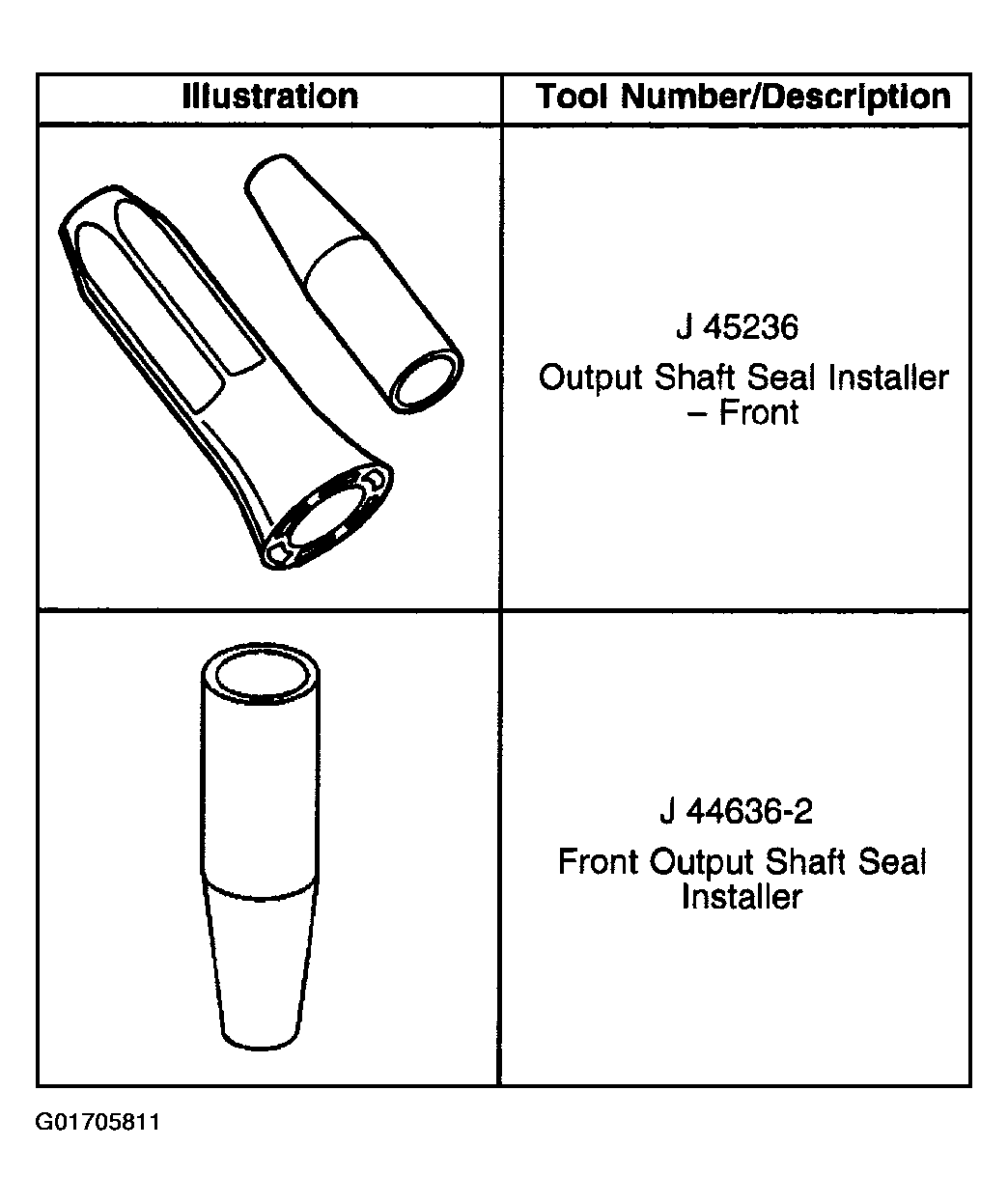

Fig 2: Special Tools And Equipment (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
