Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the fuel tank shield mounting bolts.
  3. Remove the fuel tank shield.

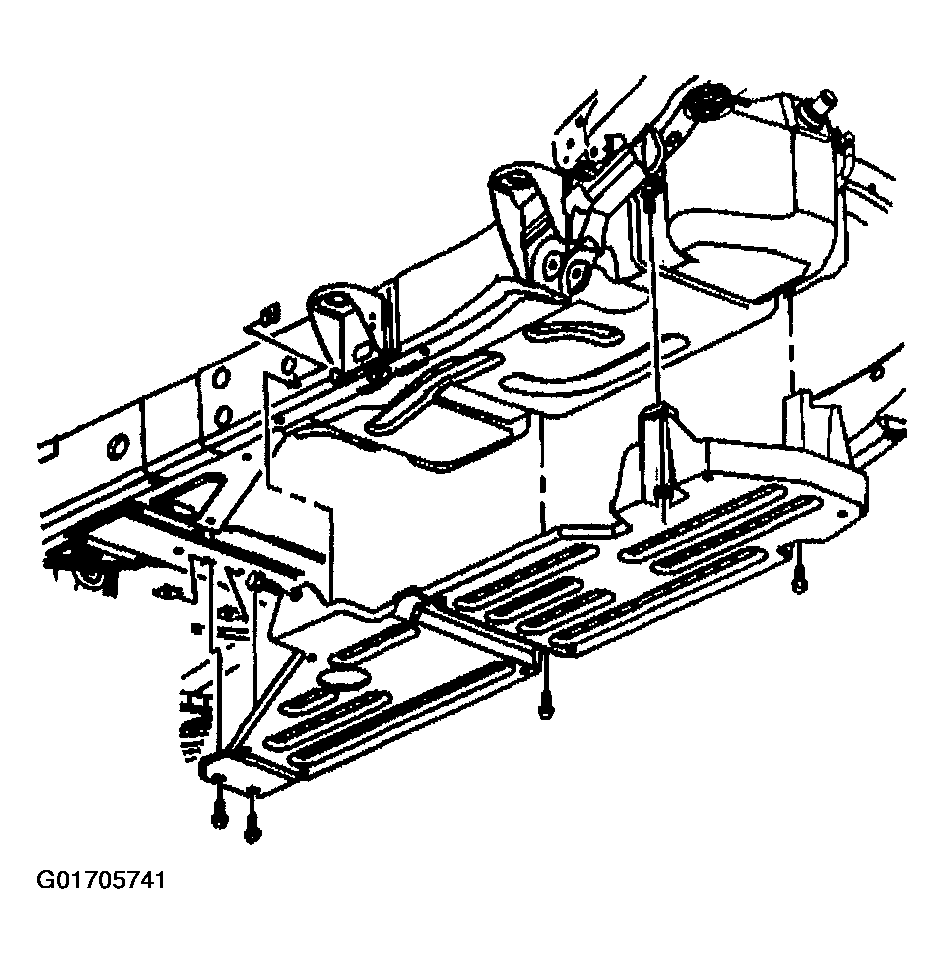

    4. Fig 1: Removing Fuel Tank Shield
    G01705741Courtesy of GENERAL MOTORS CORP.
  4. Remove the transfer case left rear speed sensor electrical connector.
  5. Remove the transfer case left rear speed sensor.

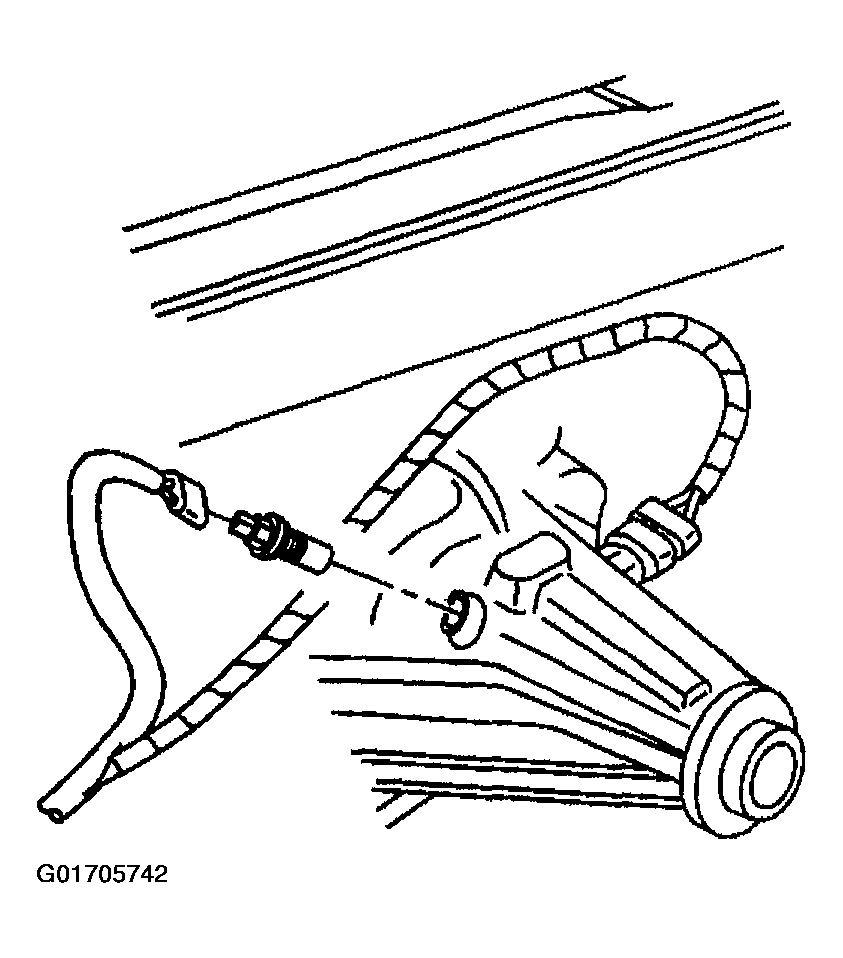

    6. Fig 2: Removing Transfer Case Left Rear Speed Sensor
    G01705742Courtesy of GENERAL MOTORS CORP.
