Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transfer case left rear speed sensor into the transfer case.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Tighten

    Tighten the transfer case left rear speed sensor to 20 N.m (15 lb ft).

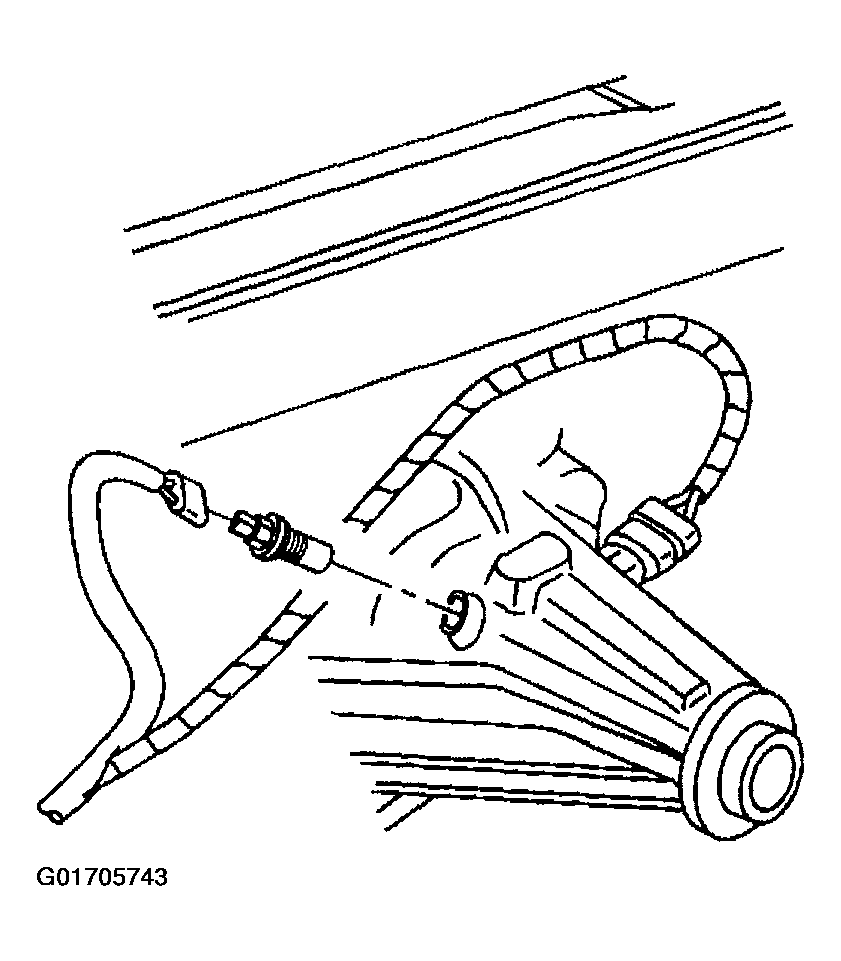

    2. Fig 1: Installing Transfer Case Left Rear Speed Sensor Into Transfer Case
    G01705743Courtesy of GENERAL MOTORS CORP.
  2. Install the transfer case left rear speed sensor electrical connector.
  3. Install the fuel tank shield.

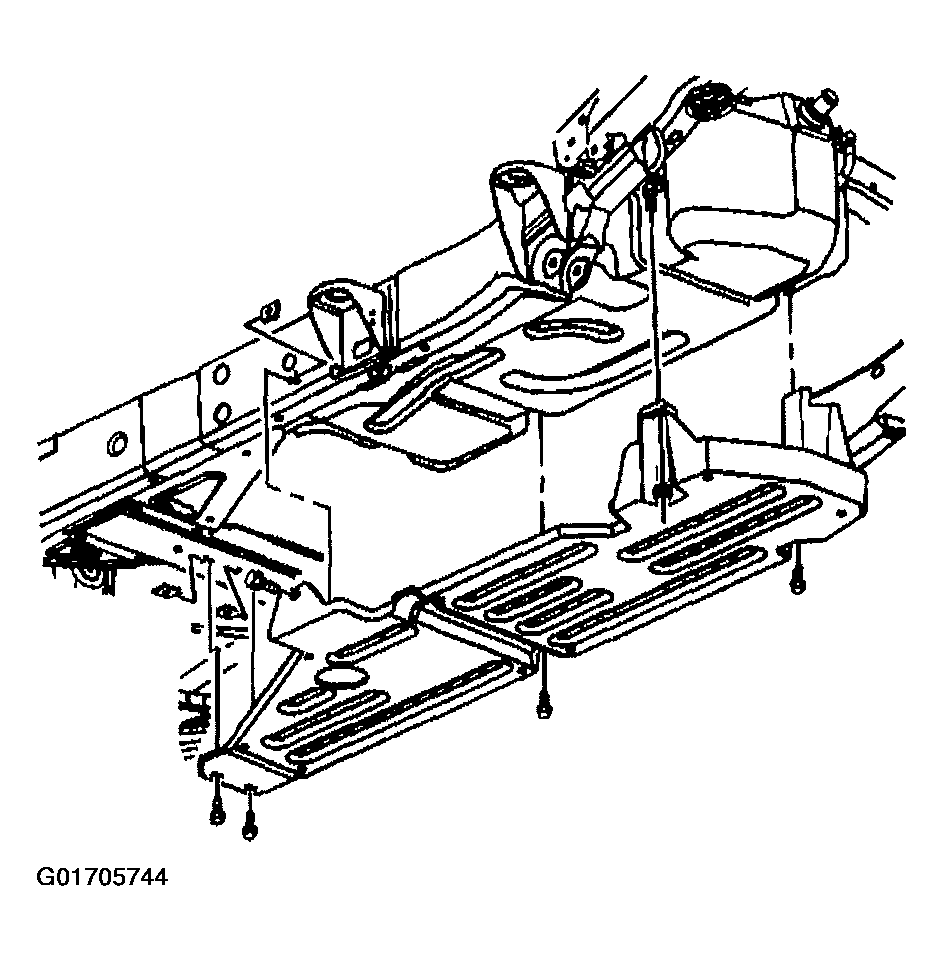

    4. Fig 2: Installing Fuel Tank Shield
    G01705744Courtesy of GENERAL MOTORS CORP.
  4. Install the fuel tank mounting bolts.

    Tighten

    Tighten the fuel tank mounting bolts to 25 N.m (18 lb ft).

  5. Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
