Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transfer case front speed sensor.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Tighten

    Tighten the transfer case front speed sensor to 20 N.m (15 lb ft).

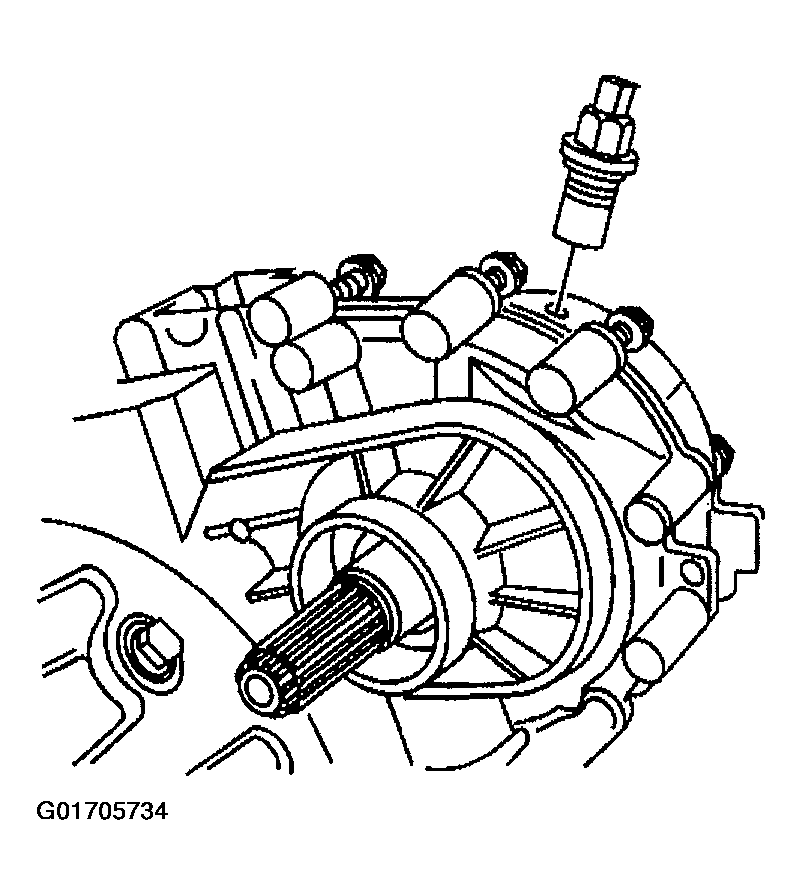

    2. Fig 1: Installing Transfer Case Front Speed Sensor
    G01705734Courtesy of GENERAL MOTORS CORP.
  2. Install the transfer case front speed sensor electrical connector.

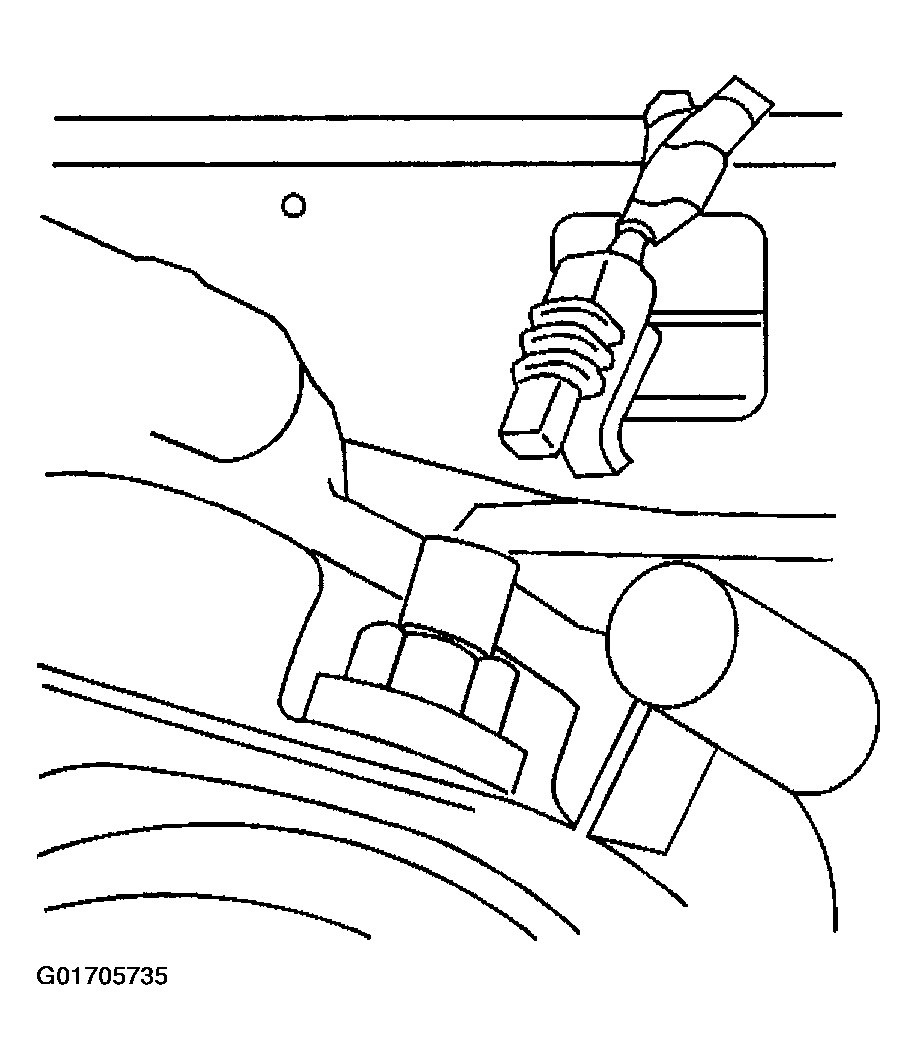

    3. Fig 2: Installing Transfer Case Front Speed Sensor Electrical Connector
    G01705735Courtesy of GENERAL MOTORS CORP.
  3. Install the fuel tank shield.

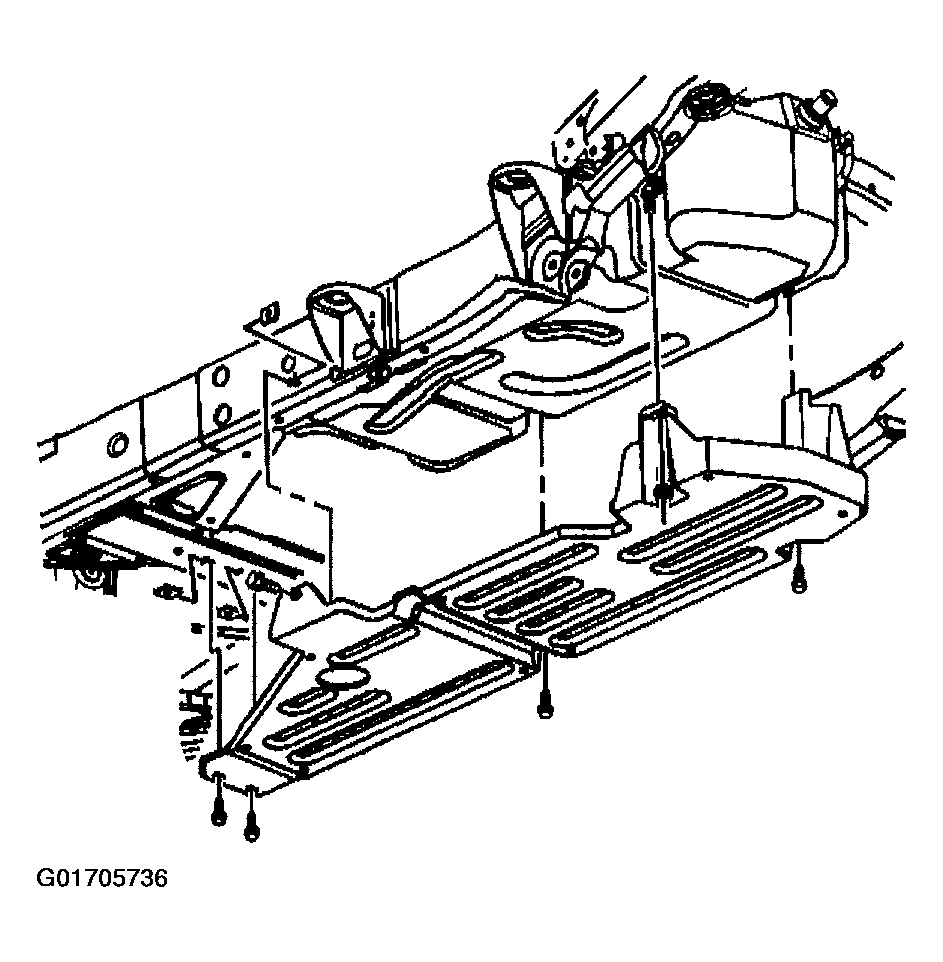

    4. Fig 3: Installing Fuel Tank Shield
    G01705736Courtesy of GENERAL MOTORS CORP.
  4. Install the fuel tank shield mounting bolts.

    Tighten

    Tighten the fuel tank mounting bolts to 25 N.m (18 lb ft).

  5. Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
