Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor console. Refer to CONSOLE REPLACEMENT in Instrument Panel, Gages, and Console.

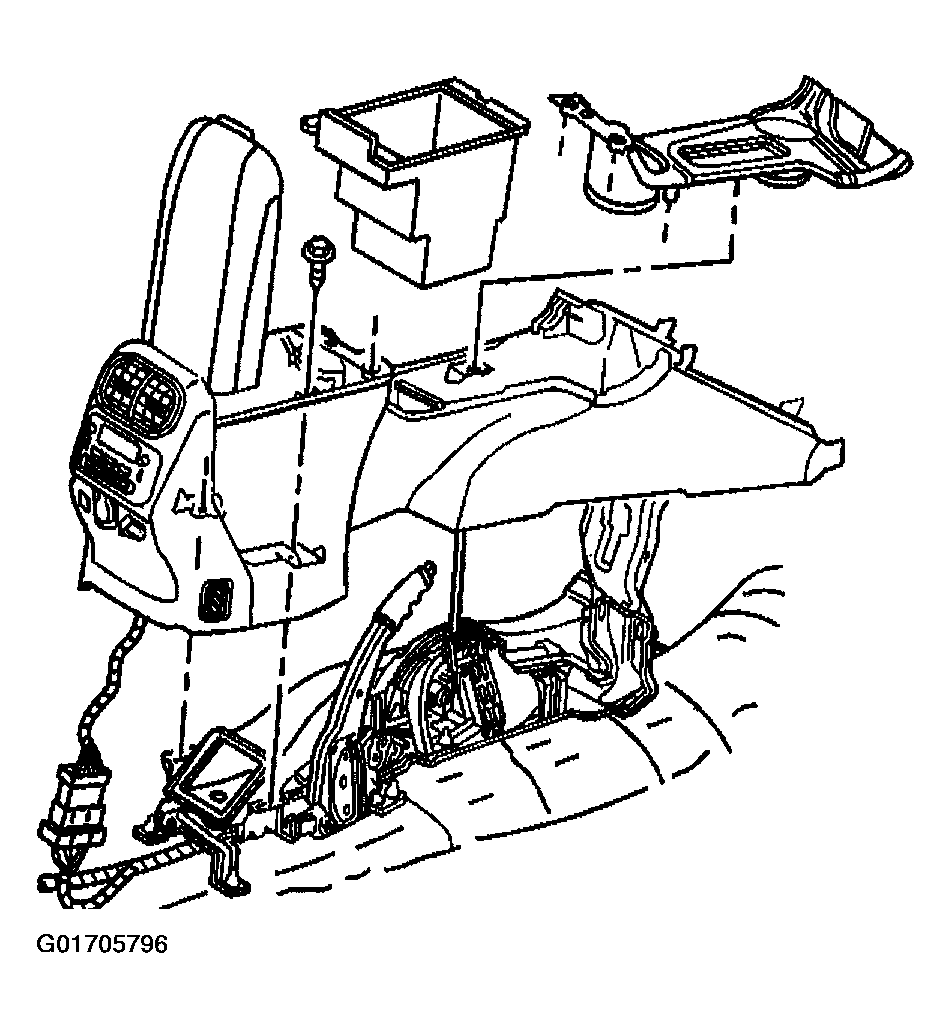

    2. Fig 1: Removing Floor Console
    G01705796Courtesy of GENERAL MOTORS CORP.
  2. Remove the trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I//P) ACCESSORY (GMC/OLDSMOBILE) in Instrument Panel, Gages, and Console.

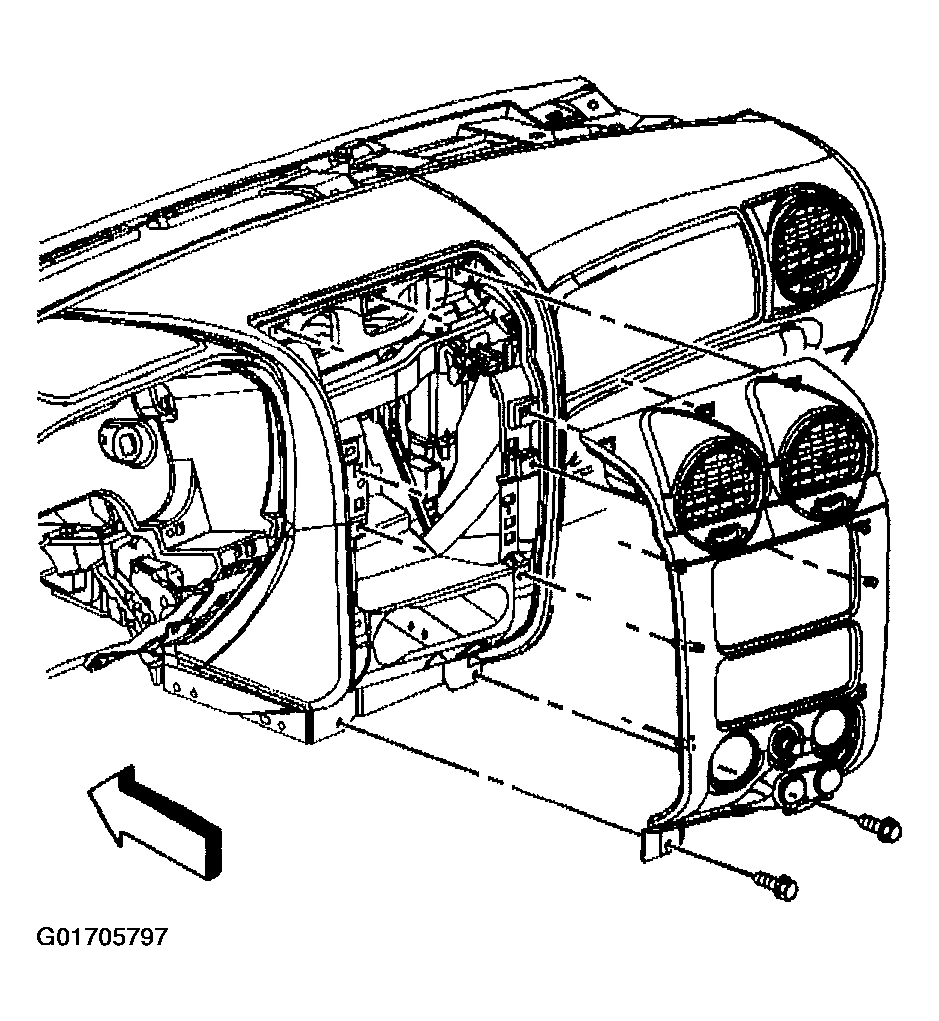

    3. Fig 2: Removing Trim Plate
    G01705797Courtesy of GENERAL MOTORS CORP.
  3. Push in on the two tabs securing the control switch to the trim plate.
  4. Move the control switch toward the front of the trim plate.
  5. Remove the control switch.
  6. Disconnect the electrical connector from the control switch.

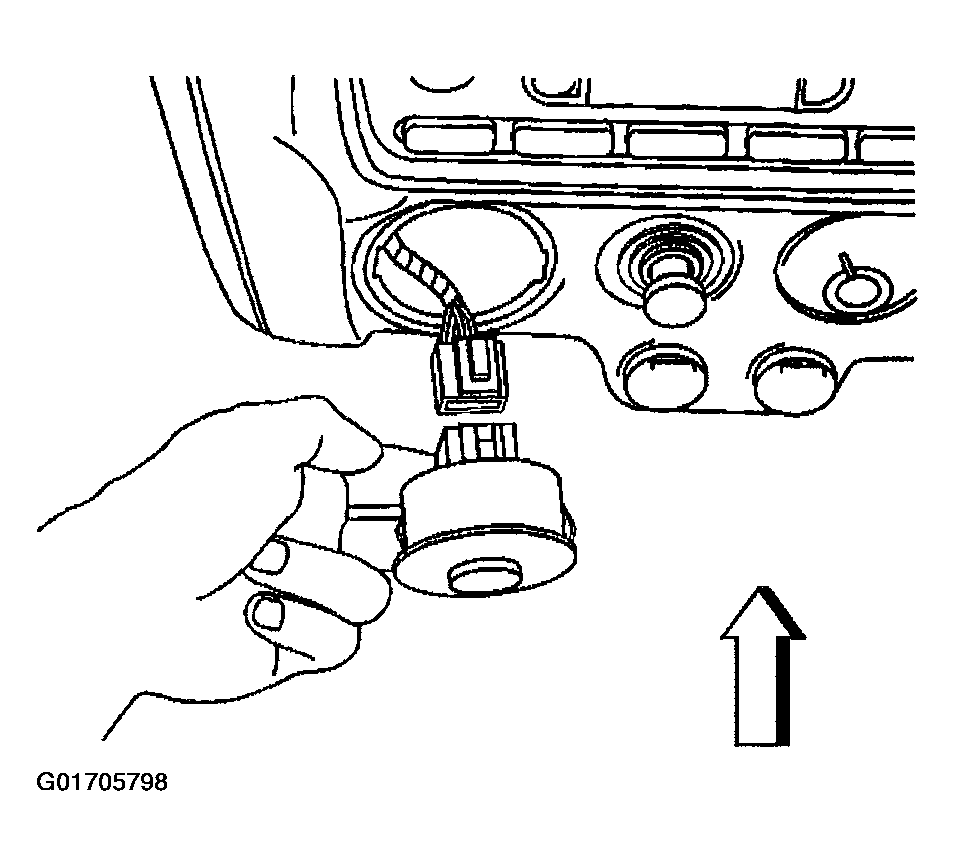

    7. Fig 3: Disconnecting Electrical Connector From Control Switch
    G01705798Courtesy of GENERAL MOTORS CORP.
