Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the electrical connector to the control switch.

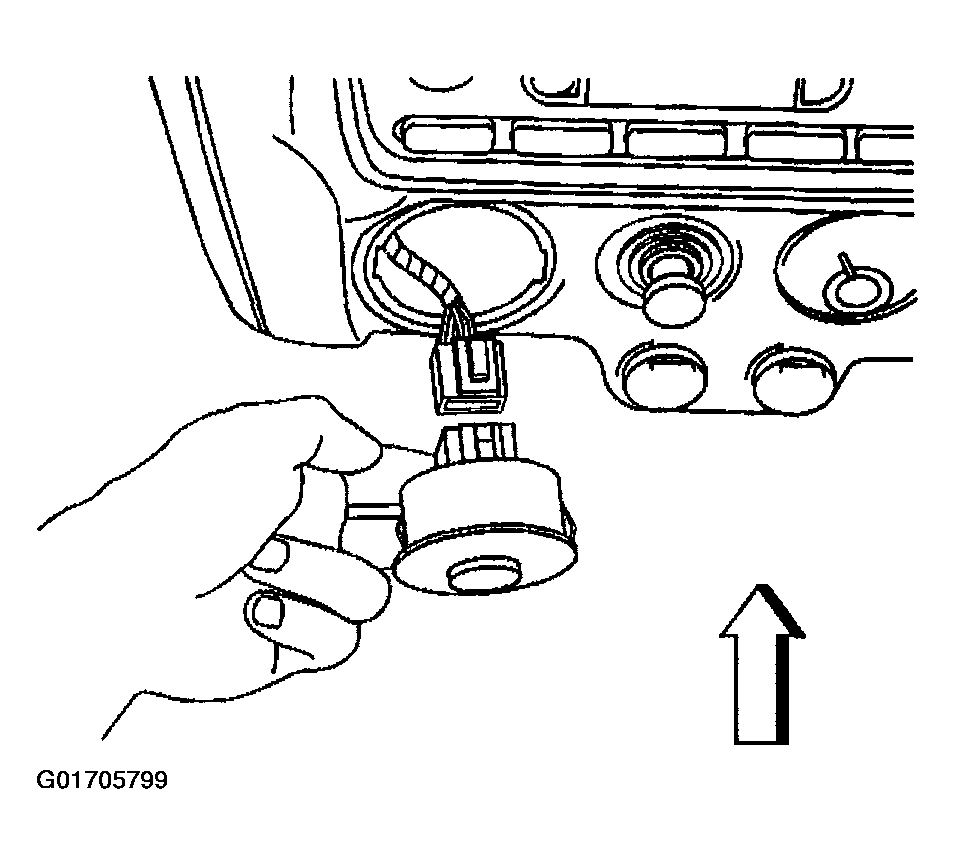

    Fig 1: Installing Electrical Connector To Control Switch
    G01705799Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: When installing the control switch in the trim plate, a snap should be felt or heard.
  2. Install the control switch in the trim plate.

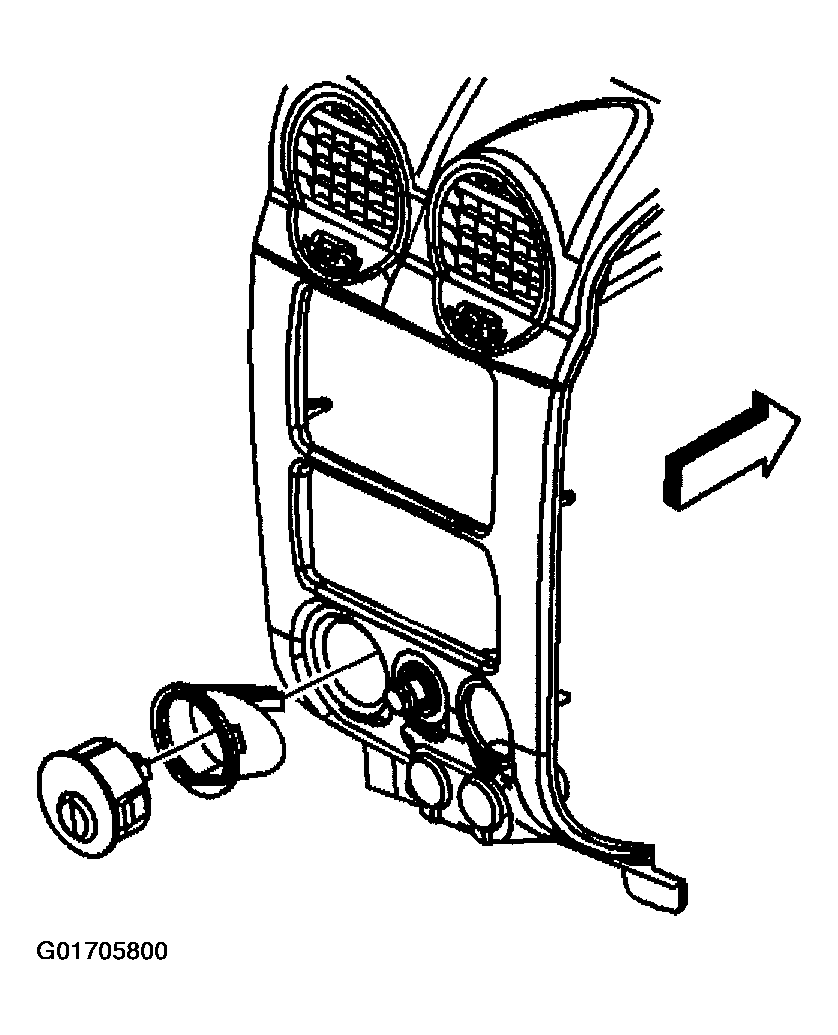

    3. Fig 2: Installing Control Switch In Trim Plate
    G01705800Courtesy of GENERAL MOTORS CORP.
  3. Install the trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I//P) ACCESSORY (GMC/OLDSMOBILE) in Instrument Panel, Gages, and Console.

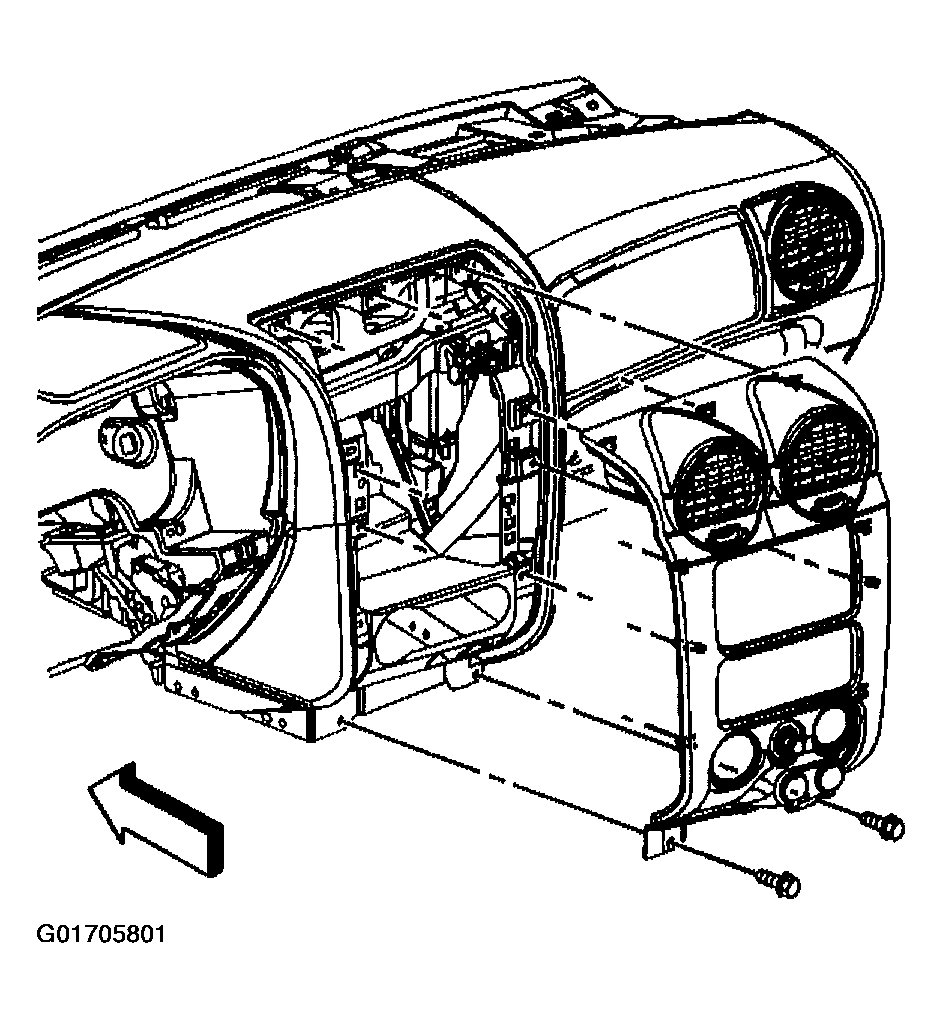

    4. Fig 3: Installing Trim Plate
    G01705801Courtesy of GENERAL MOTORS CORP.
  4. Install the floor console. Refer to CONSOLE REPLACEMENT in Instrument Panel, Gages, and Console.

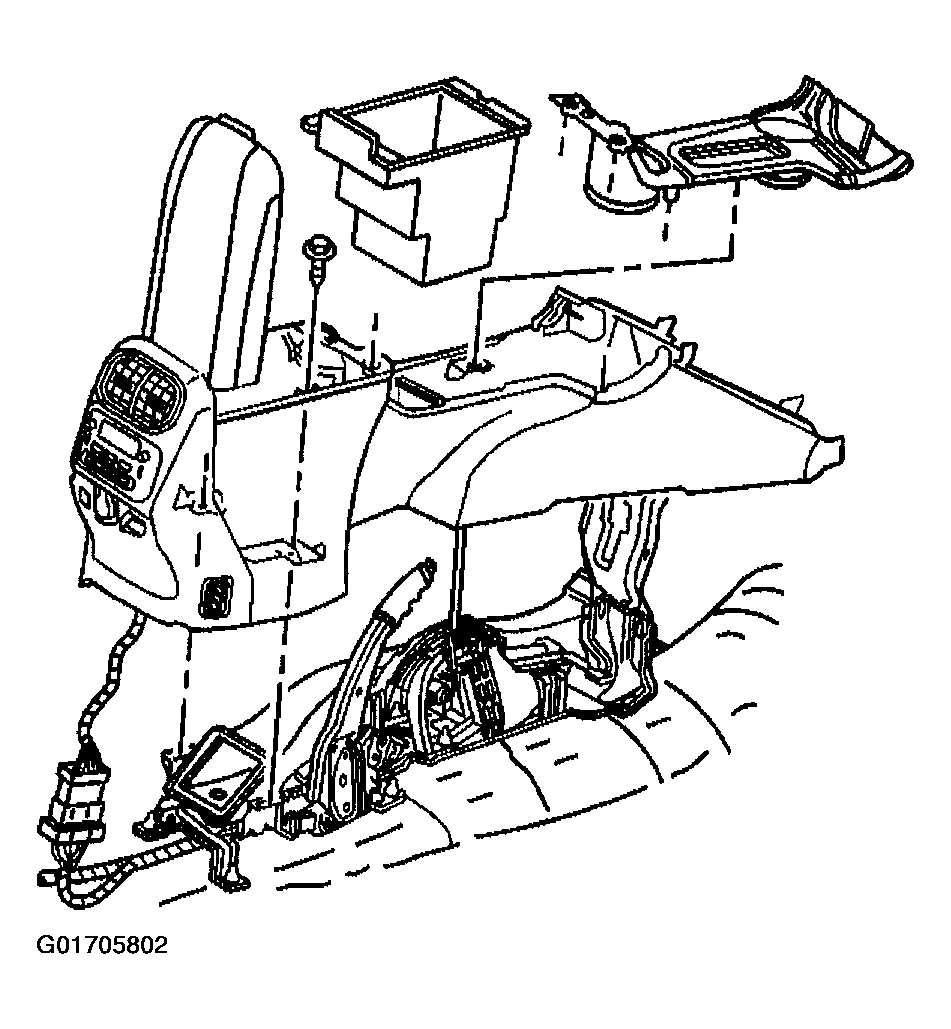

    5. Fig 4: Installing Floor Console
    G01705802Courtesy of GENERAL MOTORS CORP.
