Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bezel cover. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (CHEVROLET) or BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (GMC/OLDSMOBILE) in Instrument Panel, Gages, and Console

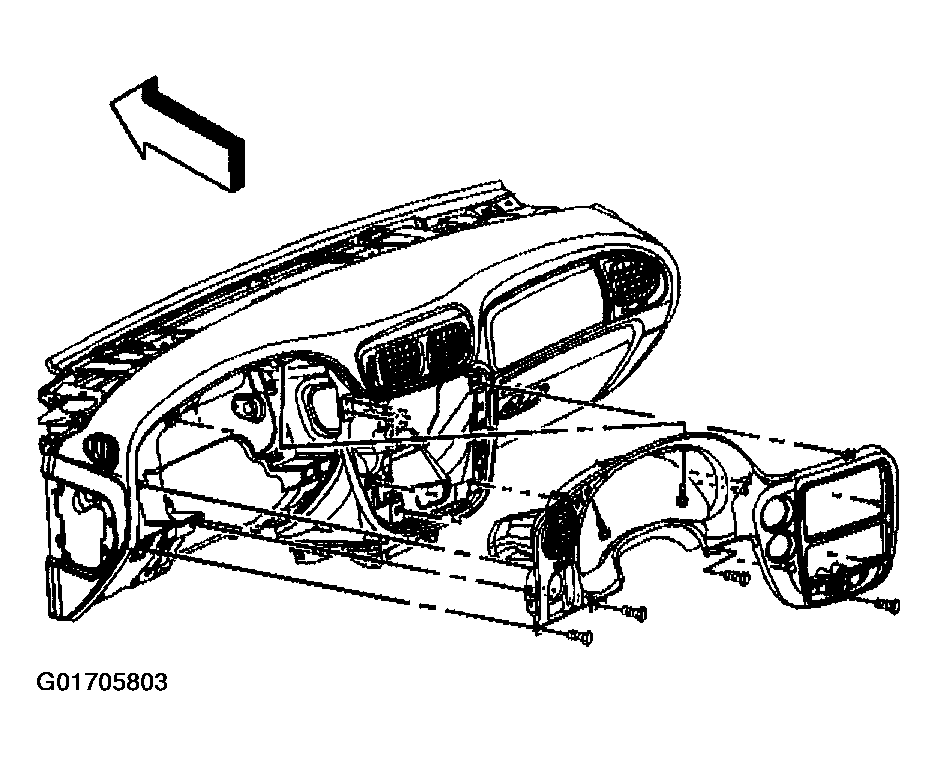

    2. Fig 1: Removing Bezel Cover
    G01705803Courtesy of GENERAL MOTORS CORP.
  2. Push in on the two tabs on the side of the control switch.
  3. Move the control switch toward the front of the trim plate.
  4. Disconnect the electrical connector.
  5. Remove the control switch.

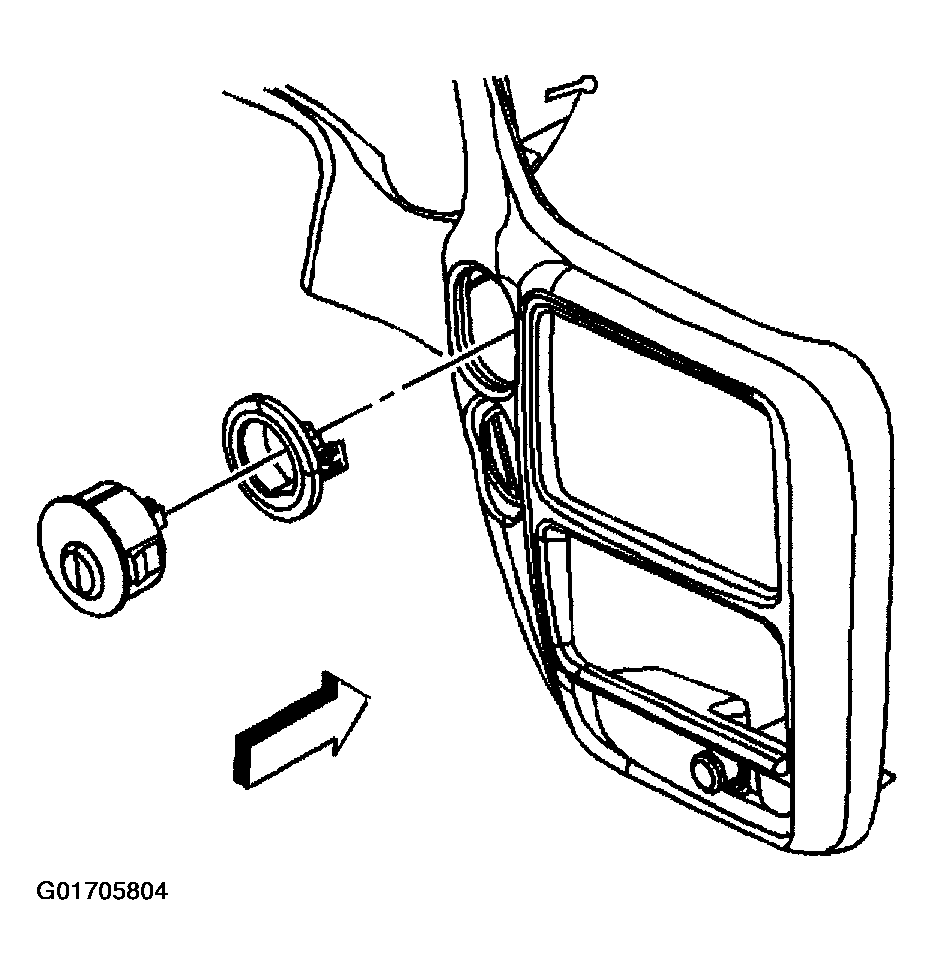

    6. Fig 2: Removing Control Switch
    G01705804Courtesy of GENERAL MOTORS CORP.
