Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the electrical connector to the control switch.
    IMPORTANT: When installing control switch in the trim bezel, a snap should be felt or heard.
  2. Install the control switch in the bezel cover.

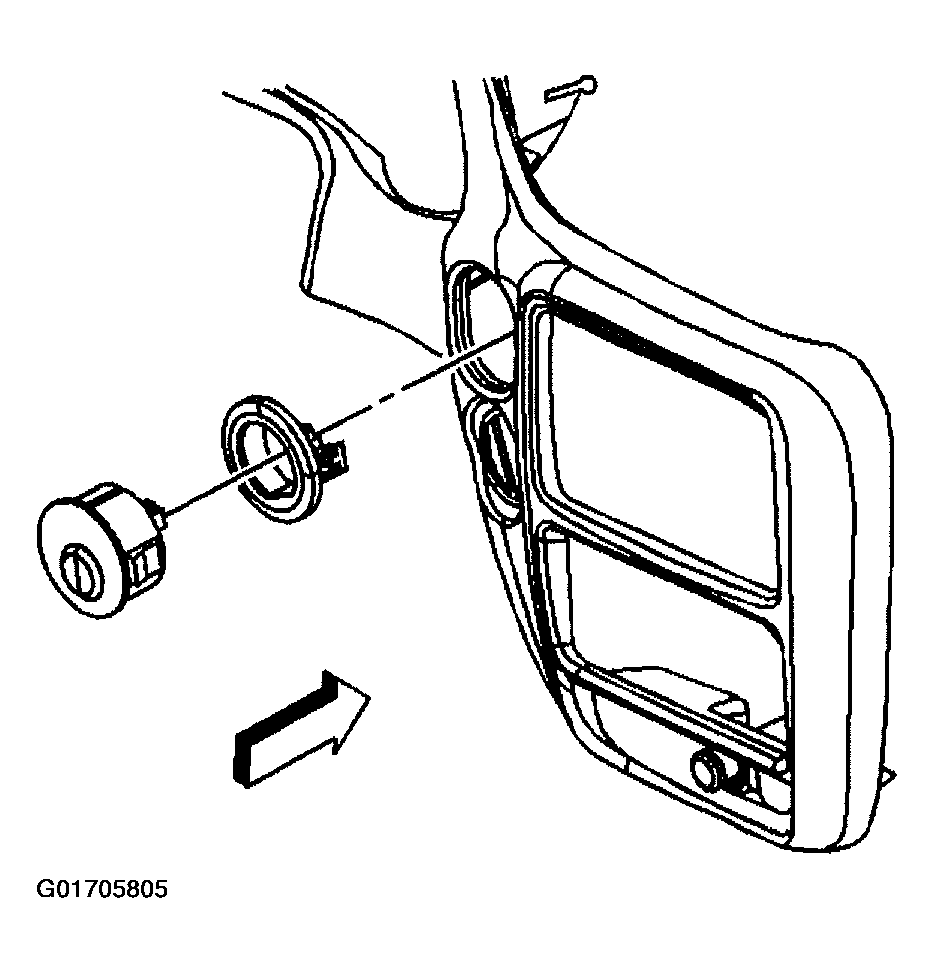

    Fig 1: Installing Control Switch In Bezel Cover
    G01705805Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure that the bezel cover is properly seated before installing the trim screws.
  3. Install the bezel cover. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (CHEVROLET) or BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (GMC/OLDSMOBILE) in Instrument Panel, Gages, and Console

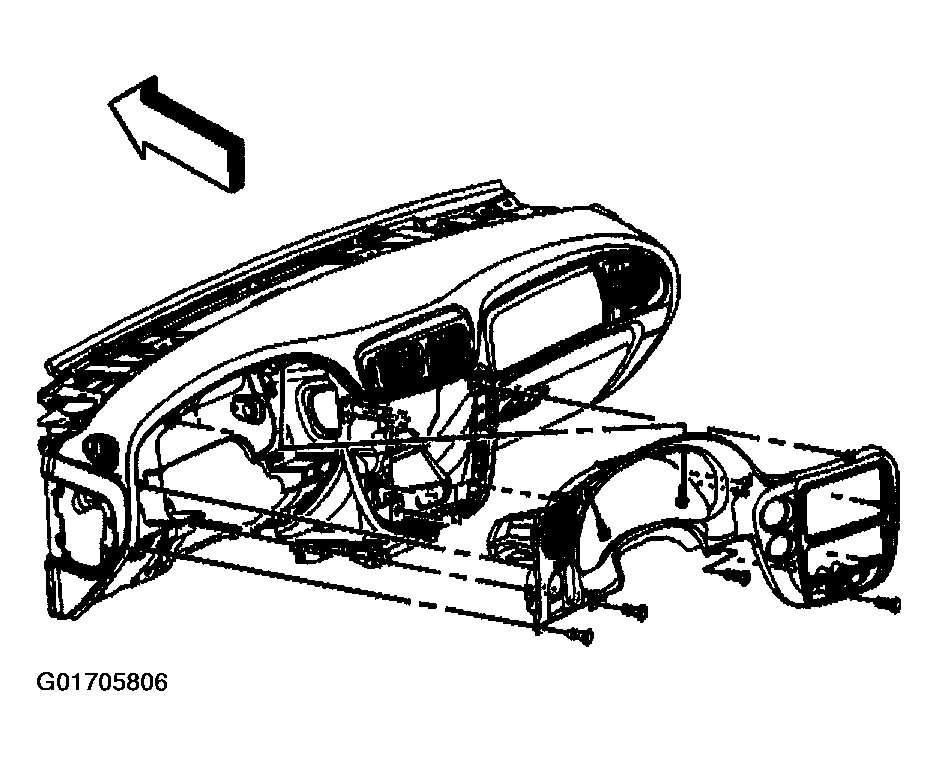

    4. Fig 2: Installing Bezel Cover
    G01705806Courtesy of GENERAL MOTORS CORP.
