Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the rear propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - REAR in Propeller Shaft.
    3. Fig 1: Removing Rear Propeller Shaft
    G01705756Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear output shaft seal.

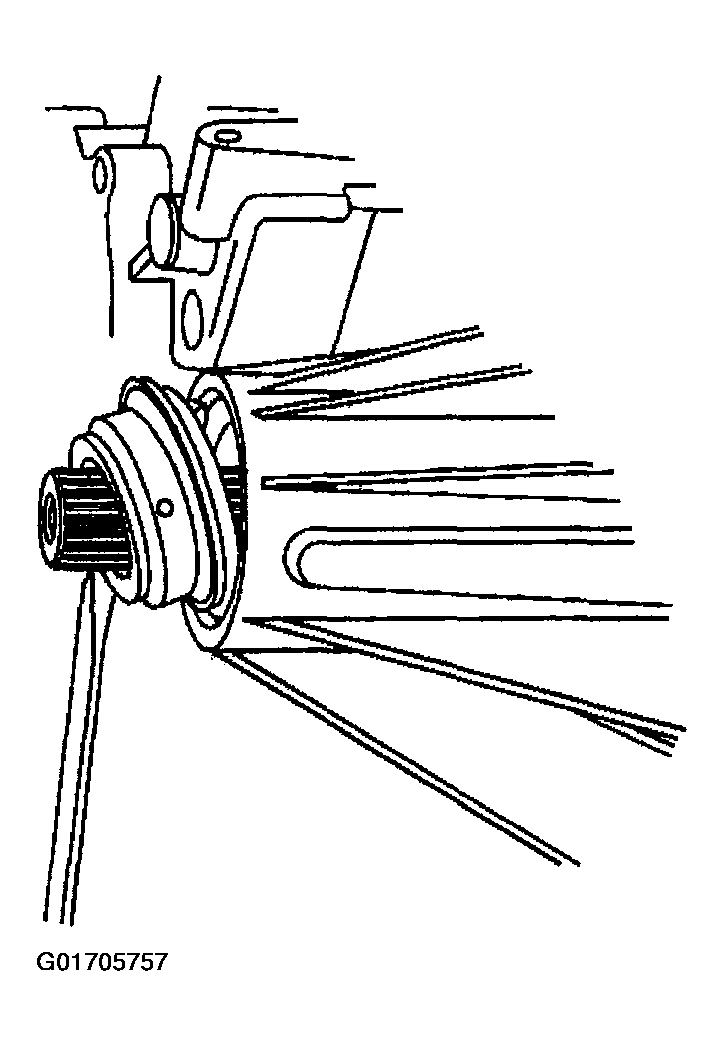

    4. Fig 2: Removing Rear Output Shaft Seal
    G01705757Courtesy of GENERAL MOTORS CORP.
