Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Before the motor/encoder is removed, ensure that the motor/encoder is in the neutral position.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the fuel tank shield mounting bolts.
  3. Remove the fuel tank shield.

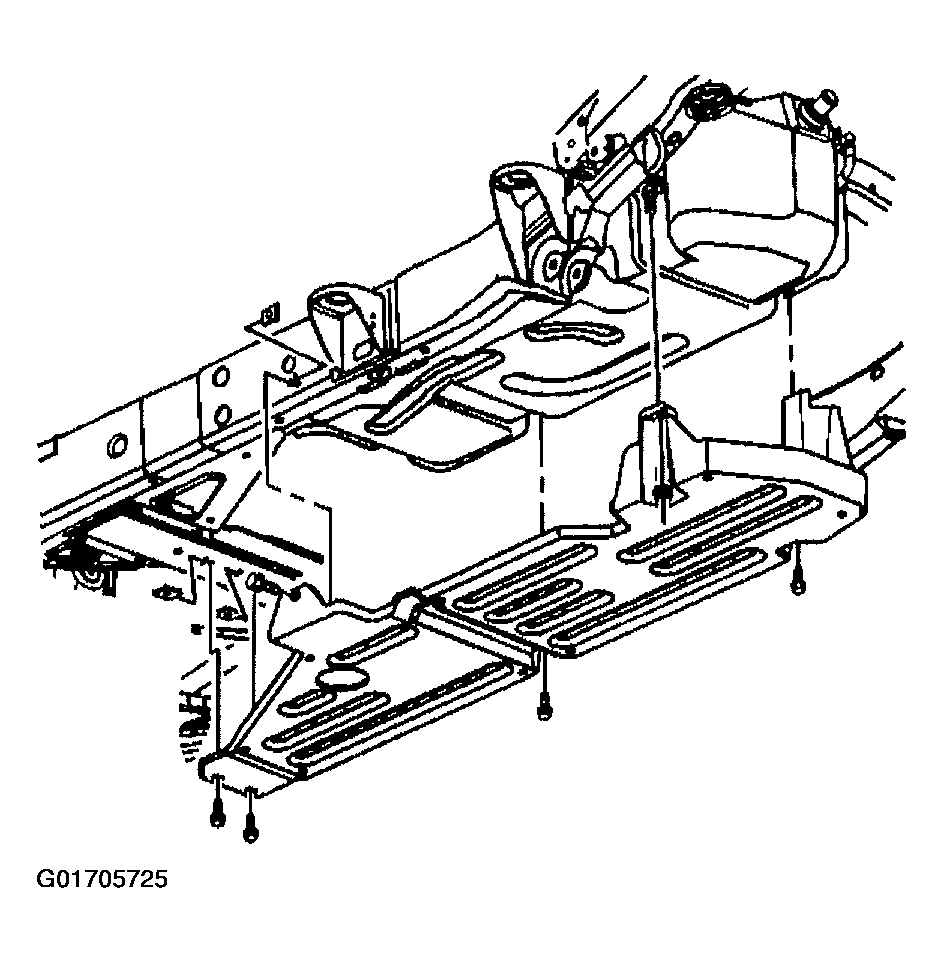

    4. Fig 1: Removing Fuel Tank Shield
    G01705725Courtesy of GENERAL MOTORS CORP.
  4. Remove the motor/encoder electrical connector.
  5. Remove the motor/encoder mounting bolts.

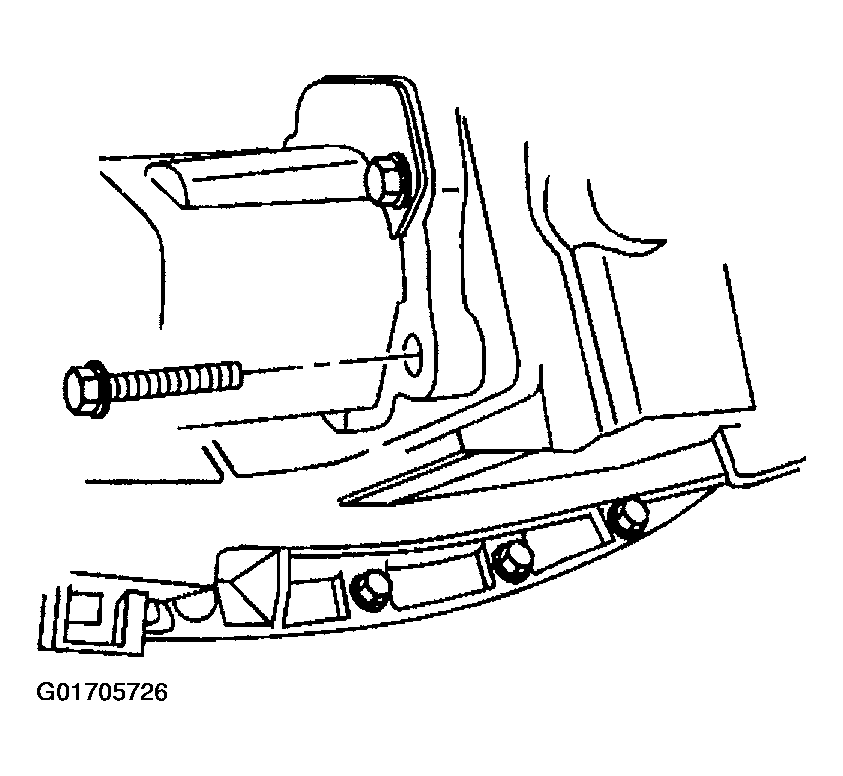

    6. Fig 2: Removing Motor/Encoder Mounting Bolts
    G01705726Courtesy of GENERAL MOTORS CORP.
  6. Remove the motor/encoder assembly.

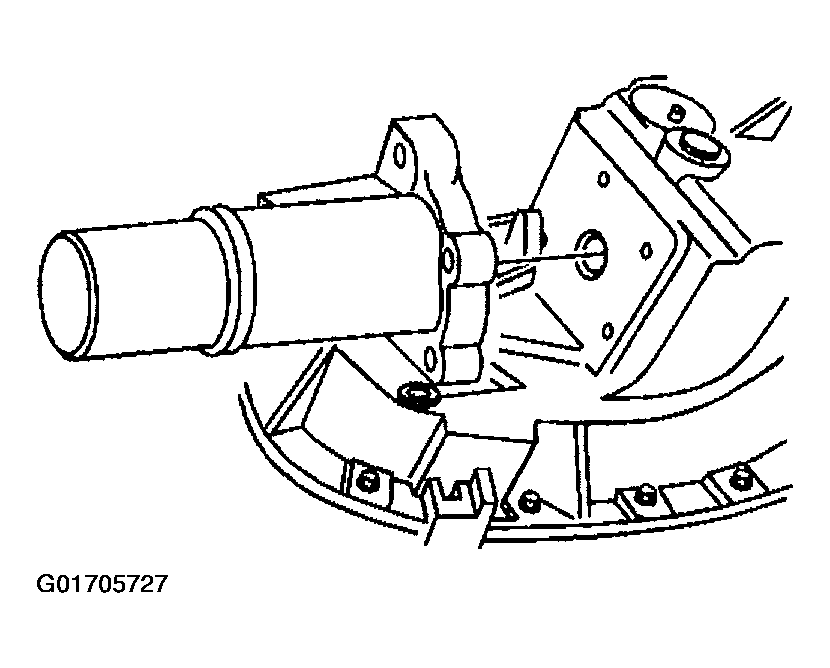

    7. Fig 3: Removing Motor/Encoder Assembly
    G01705727Courtesy of GENERAL MOTORS CORP.
