Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: When performing this service procedure, make sure that the motor/encoder unit is flat against the transfer case for proper installation.

Install the motor/encoder to the transfer case.

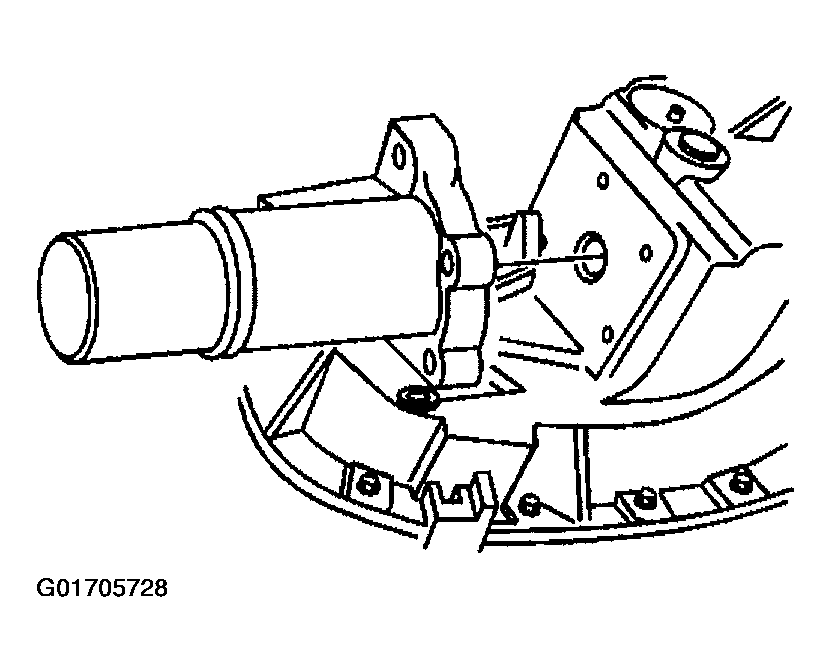

Fig 1: Installing Motor/Encoder To Transfer Case

Courtesy of GENERAL MOTORS CORP.

Install motor/encoder mounting bolts to the transfer case.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

Tighten

Tighten the motor/encoder mounting bolts to 24 N.m (18 lb ft).

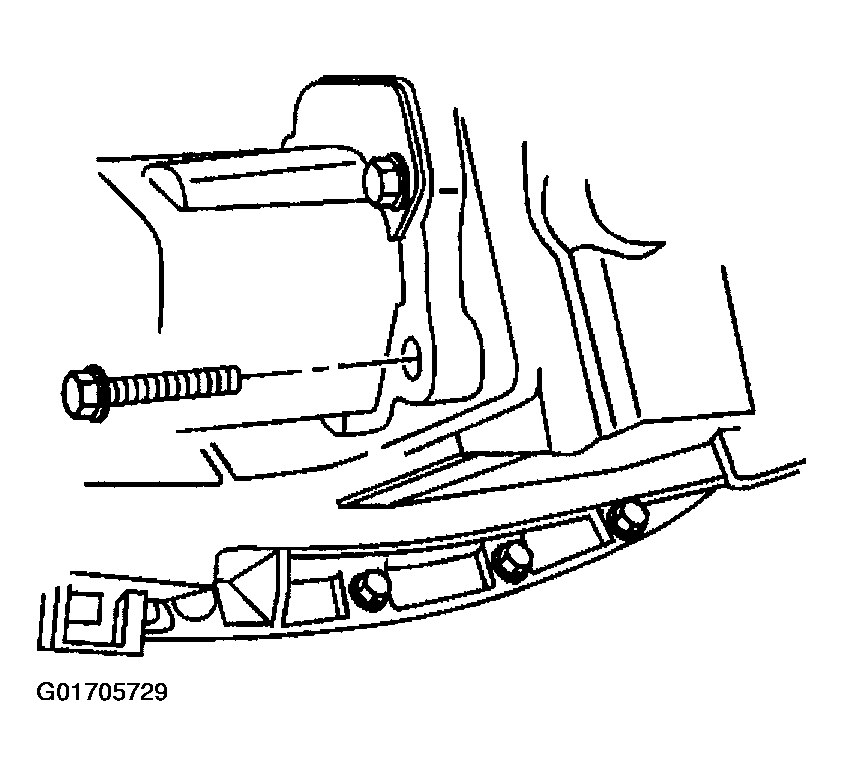

Fig 2: Installing Motor/Encoder Mounting Bolts To Transfer Case

Courtesy of GENERAL MOTORS CORP.

Install the motor/encoder electrical connector.
Install the fuel tank shield shield.

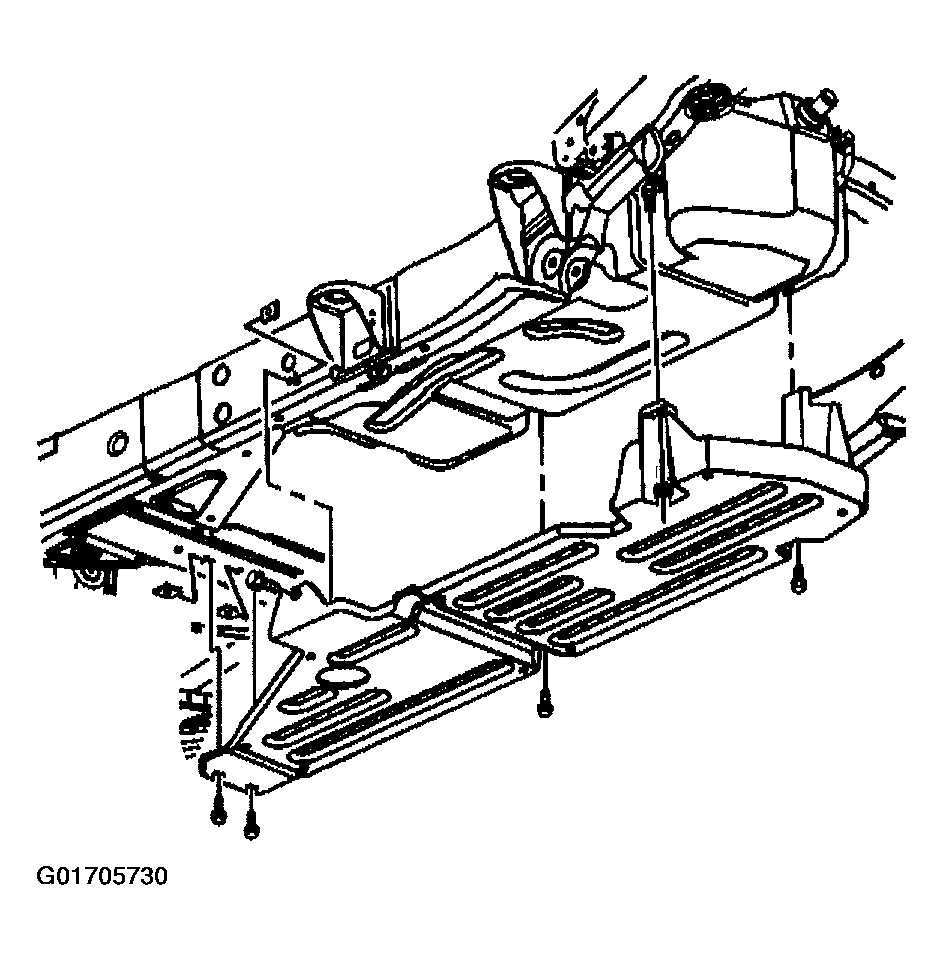

Fig 3: Installing Fuel Tank Shield

Courtesy of GENERAL MOTORS CORP.

Install the fuel tank shield mounting bolts.
Tighten

Tighten the fuel tank shield mounting bolts to 25 N.m (18 lb ft).
Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
