Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the transfer case assembly. Refer to Transfer Case Assembly Replacement .
    NOTE: Do not damage the sealing surfaces of the transfer cases or the shafts when prying the seals for removal. Damaging the sealing surface may cause leakage or require replacement of the damaged component.
  3. Insert a flat bladed screw driver between the input shaft seal and the transfer case.

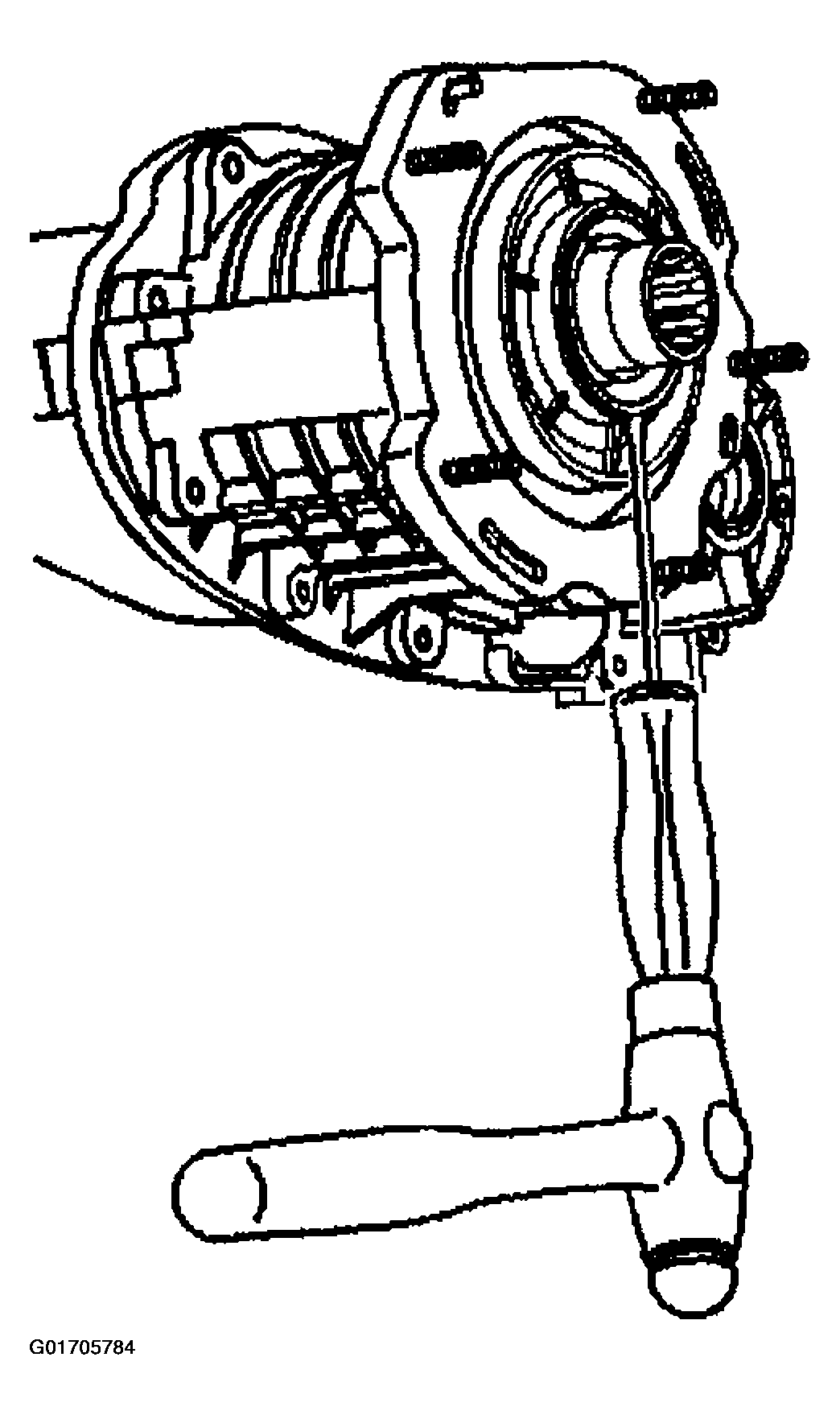

    4. Fig 1: Inserting Flat Bladed Screw Driver Between Input Shaft Seal And Transfer Case
    G01705784Courtesy of GENERAL MOTORS CORP.
  4. Pry the front input shaft seal from the transfer case.
  5. Remove the front input shaft seal.

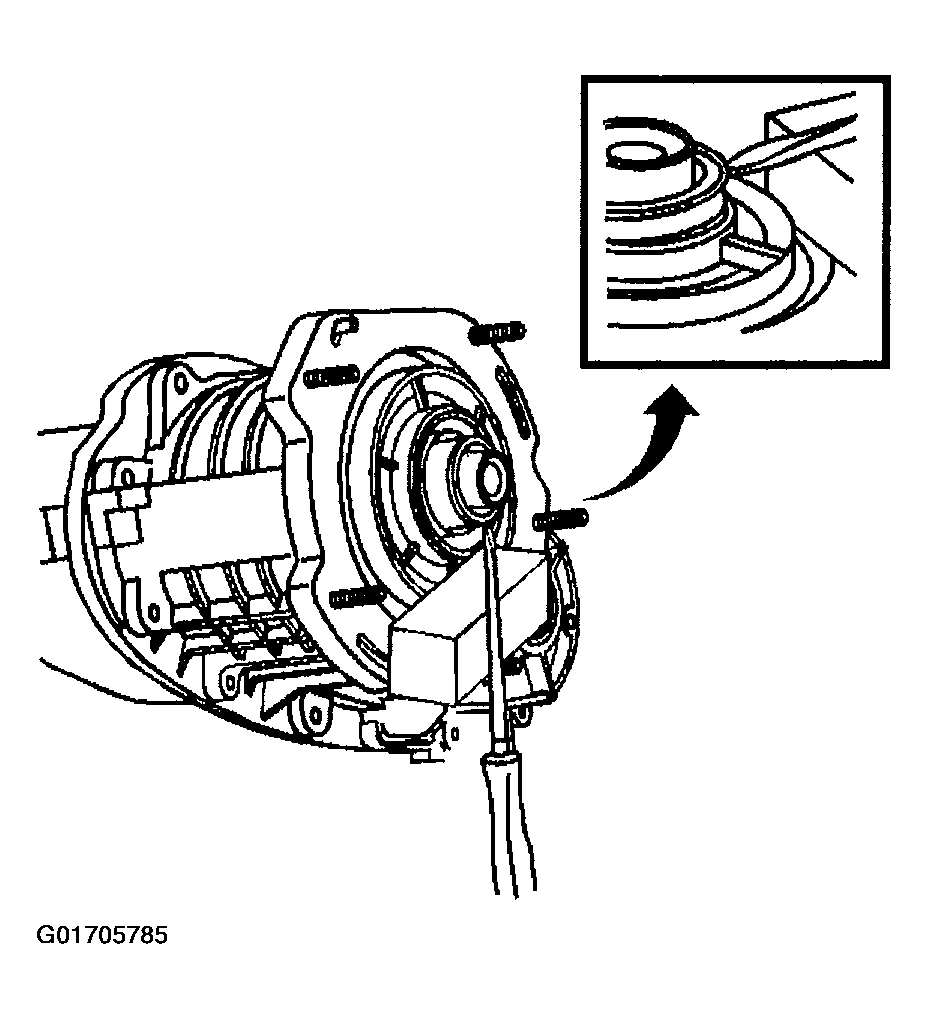

    6. Fig 2: Removing Front Input Shaft Seal
    G01705785Courtesy of GENERAL MOTORS CORP.
