Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the input shaft seal on the input shaft.
  2. Using the J 42738, install the input shaft seal.

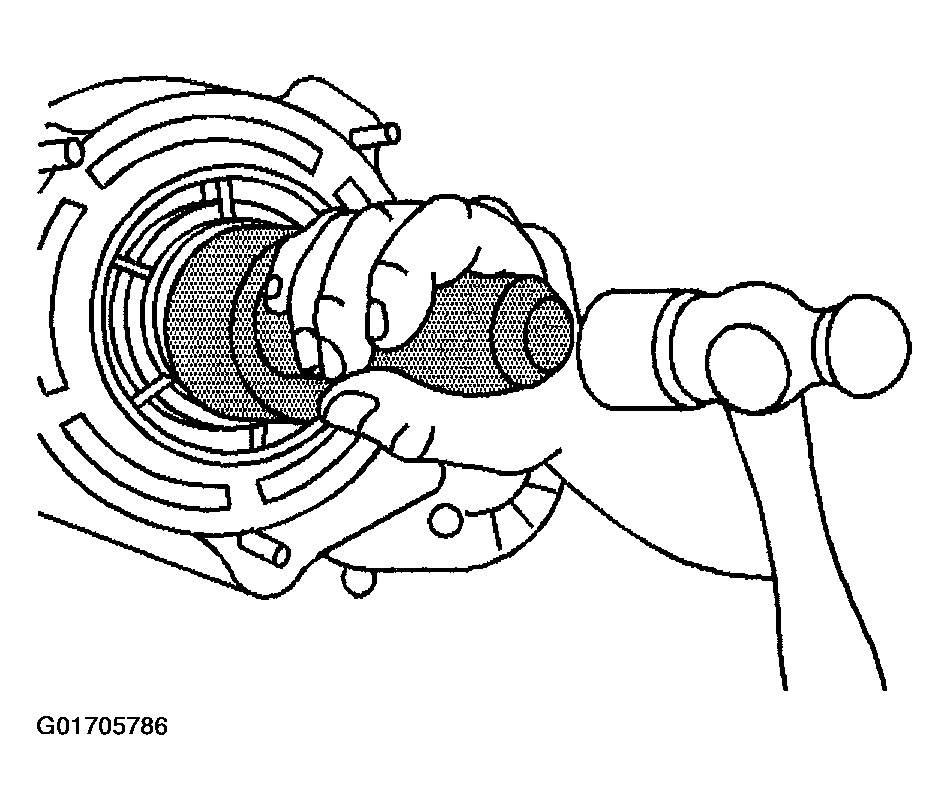

    3. Fig 1: Installing Input Shaft Seal
    G01705786Courtesy of GENERAL MOTORS CORP.
  3. Install the transfer case assembly. Refer to Transfer Case Assembly Replacement .
  4. Inspect the transfer case fluid level. Refer to Transfer Case Fluid Replacement .
  5. Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
