Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the fuel tank shield mounting bolts.
  3. Remove the fuel tank shield.

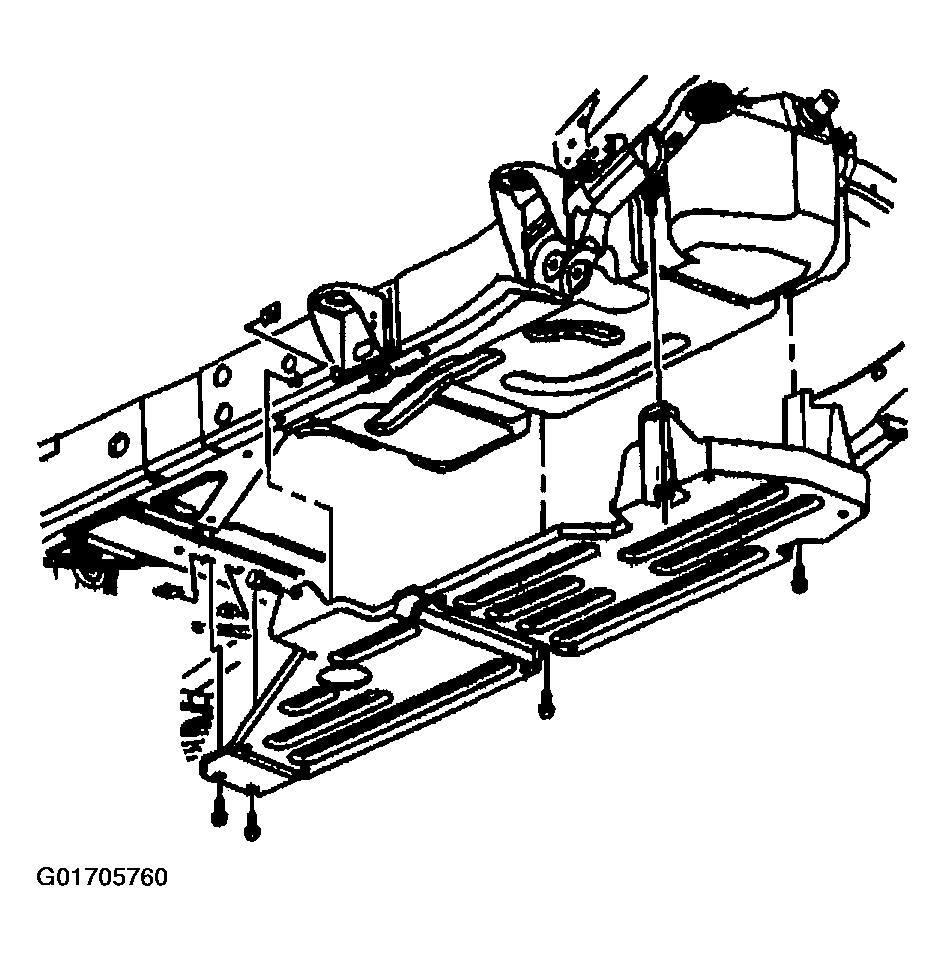

    4. Fig 1: Removing Fuel Tank Shield
    G01705760Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - REAR in Propeller Shaft.
    5. Fig 2: Removing Rear Propeller Shaft
    G01705761Courtesy of GENERAL MOTORS CORP.
  5. Drain the transfer case. Refer to Transfer Case Fluid Replacement .
  6. Remove the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - FRONT in Propeller Shaft.

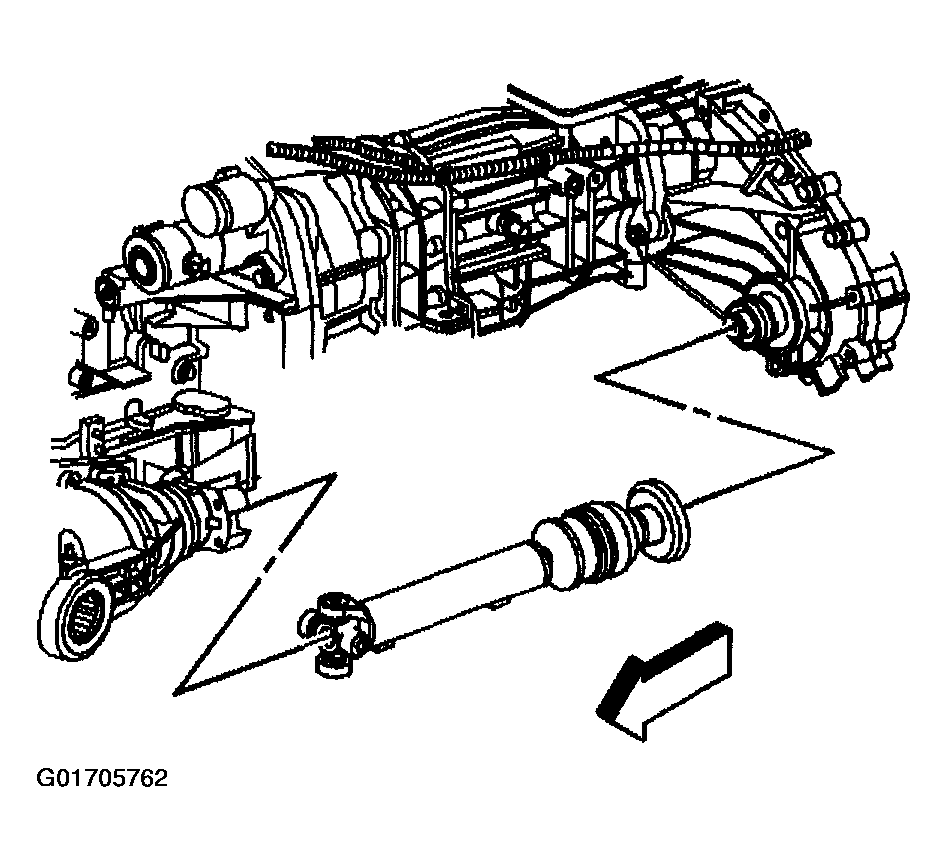

    7. Fig 3: Removing Front Propeller Shaft
    G01705762Courtesy of GENERAL MOTORS CORP.
  7. Remove the fuel lines from the retainer.

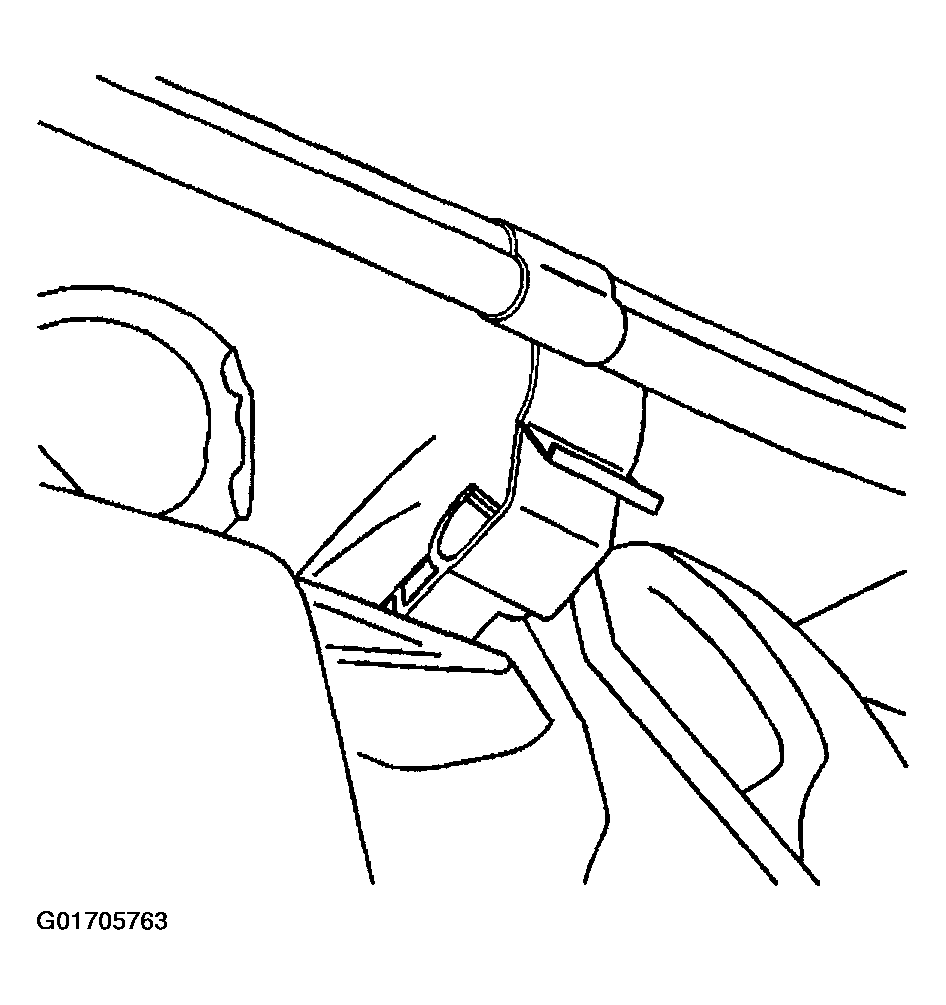

    8. Fig 4: Removing Fuel Lines From Retainer
    G01705763Courtesy of GENERAL MOTORS CORP.
  8. Remove the electrical harness from the retainer (right side).

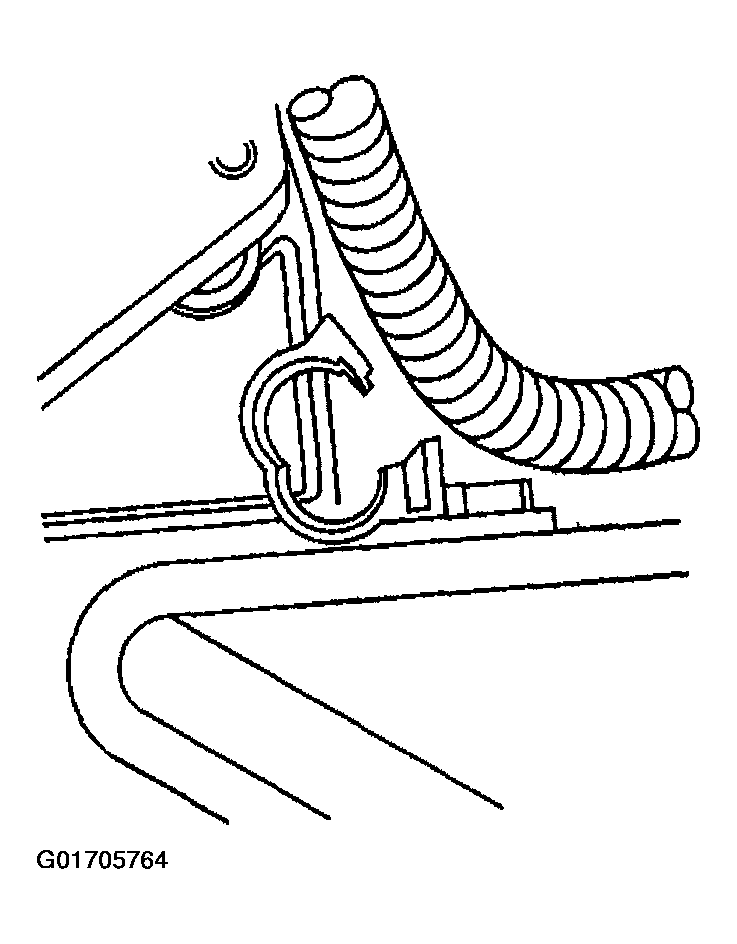

    9. Fig 5: Removing Electrical Harness From Retainer (Right Side)
    G01705764Courtesy of GENERAL MOTORS CORP.
  9. Remove the electrical harness from the retainer (left side).

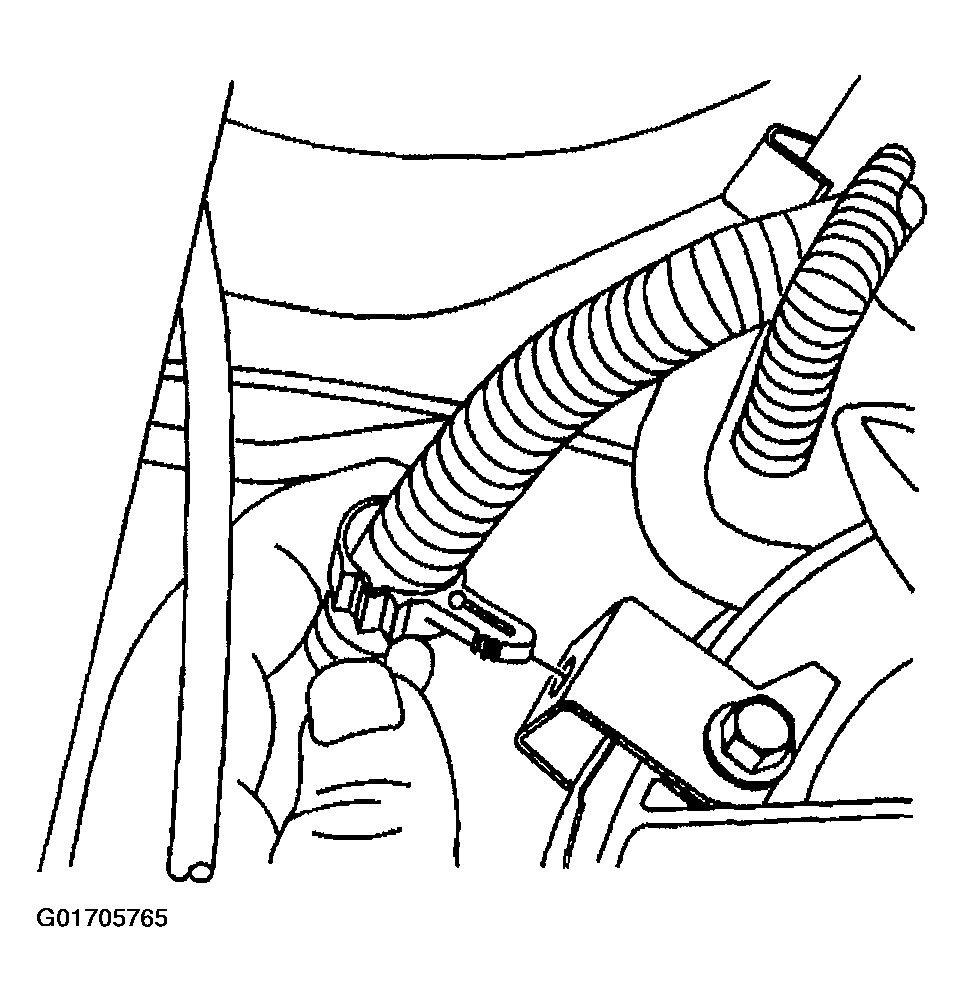

    10. Fig 6: Removing Electrical Harness From Retainer (Left Side)
    G01705765Courtesy of GENERAL MOTORS CORP.
  10. Remove the electrical connector from the speed sensors (front speed sensor shown).

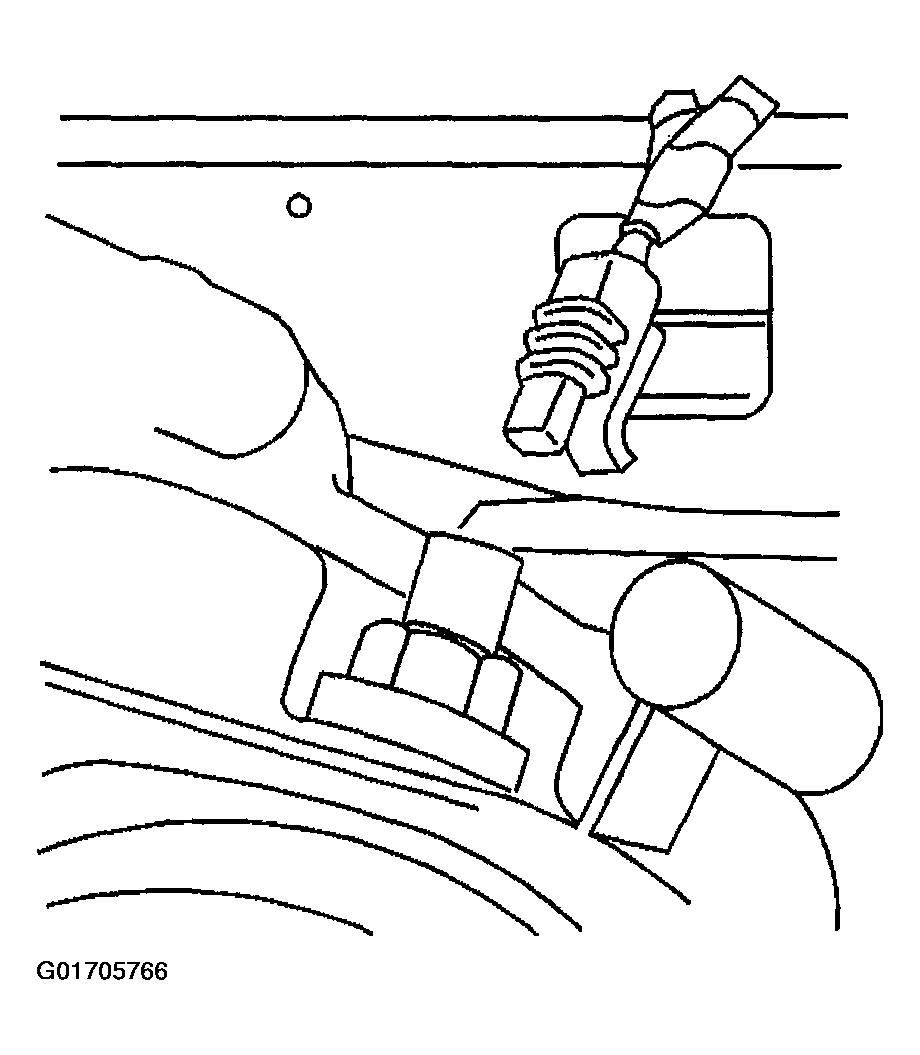

    11. Fig 7: Removing Electrical Connector From Speed Sensors
    G01705766Courtesy of GENERAL MOTORS CORP.
  11. Remove the motor/encoder electrical connector.
  12. Remove the transfer case wiring harness.

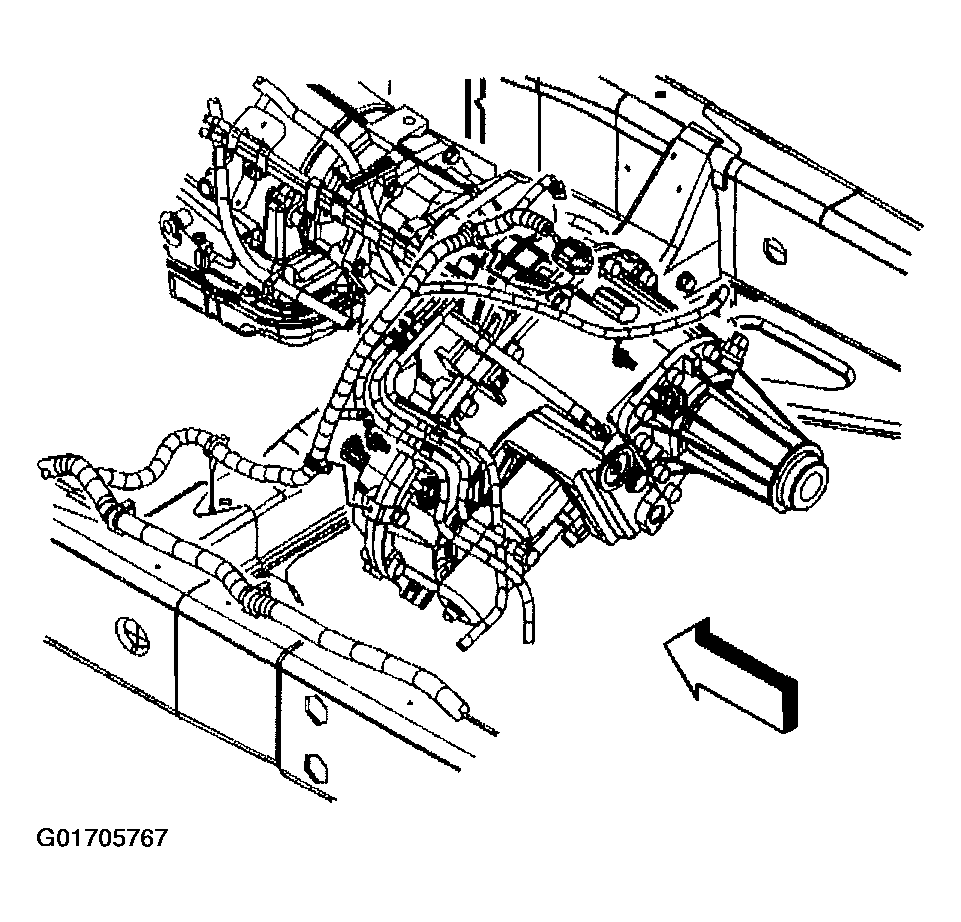

    Fig 8: Removing Transfer Case Wiring Harness
    G01705767Courtesy of GENERAL MOTORS CORP.
  13. Remove the vent hose.

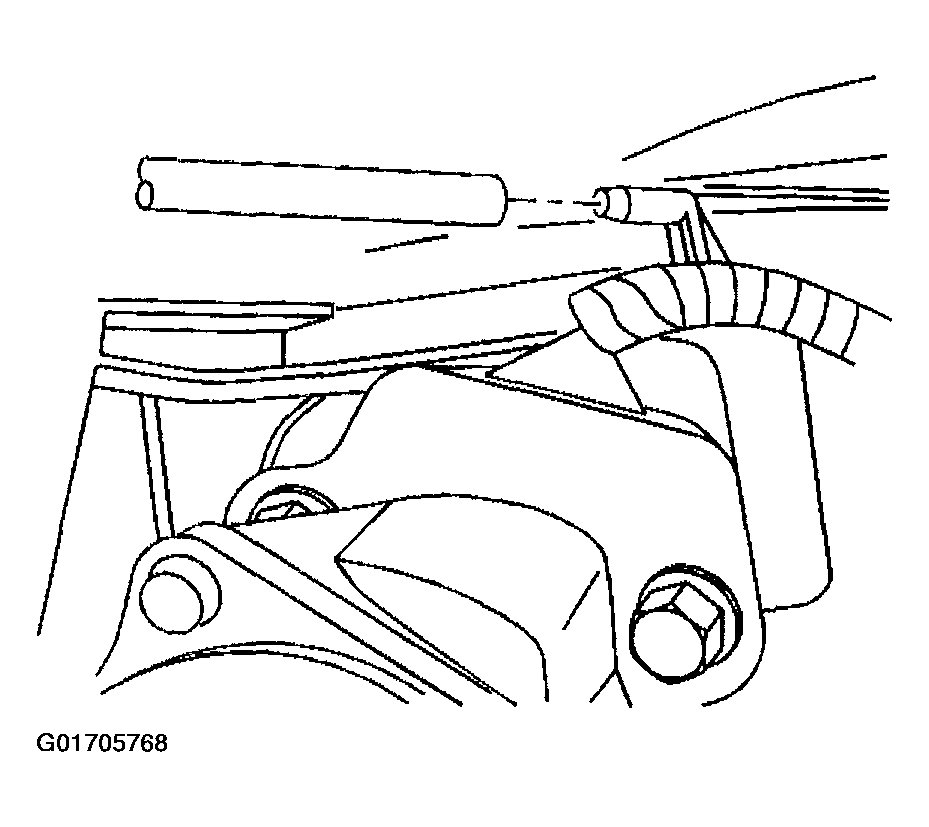

    14. Fig 9: Removing Vent Hose
    G01705768Courtesy of GENERAL MOTORS CORP.
  14. Install a transmission jack for the transfer case.
  15. Remove the transfer case mounting bolts.

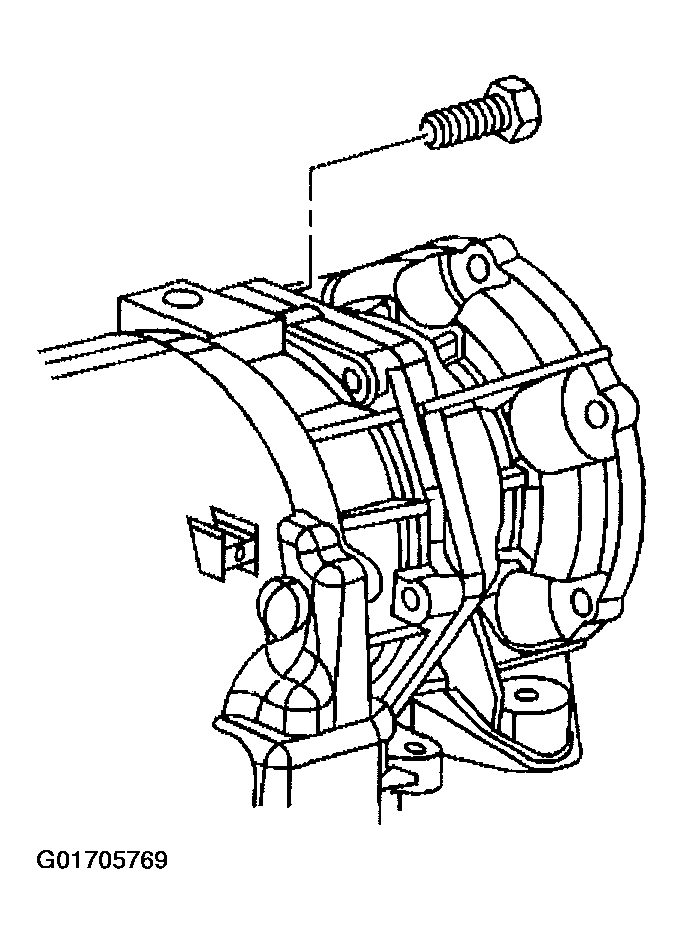

    16. Fig 10: Removing Transfer Case Mounting Bolts
    G01705769Courtesy of GENERAL MOTORS CORP.
  16. Remove the transfer case from the vehicle.

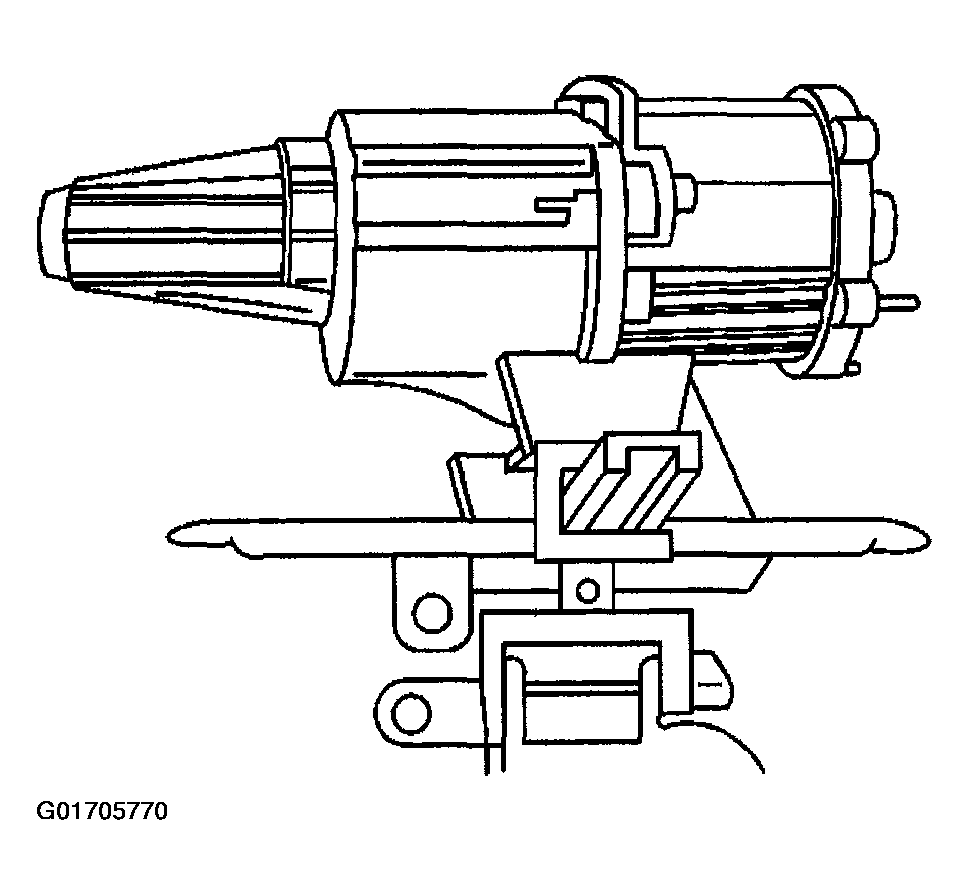

    Fig 11: Removing Transfer Case From Vehicle
    G01705770Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The transfer case gasket may become damaged during the removal Procedure.
  17. Remove the transfer case gasket.

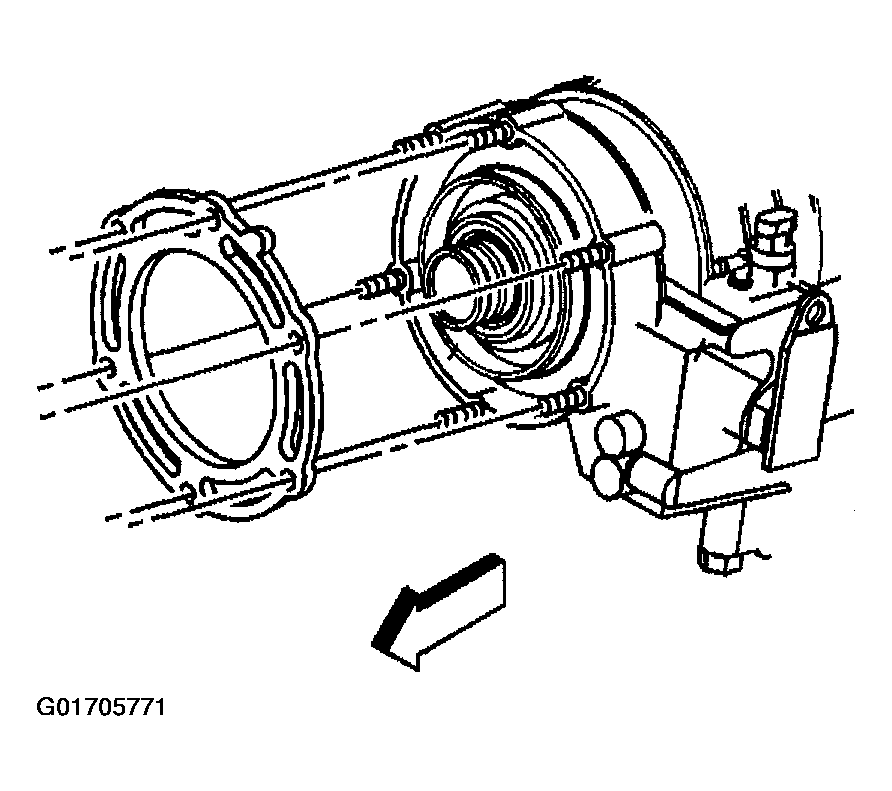

    18. Fig 12: Removing Transfer Case Gasket
    G01705771Courtesy of GENERAL MOTORS CORP.
