Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the transfer case assembly from the vehicle. Refer to Transfer Case Assembly Replacement .

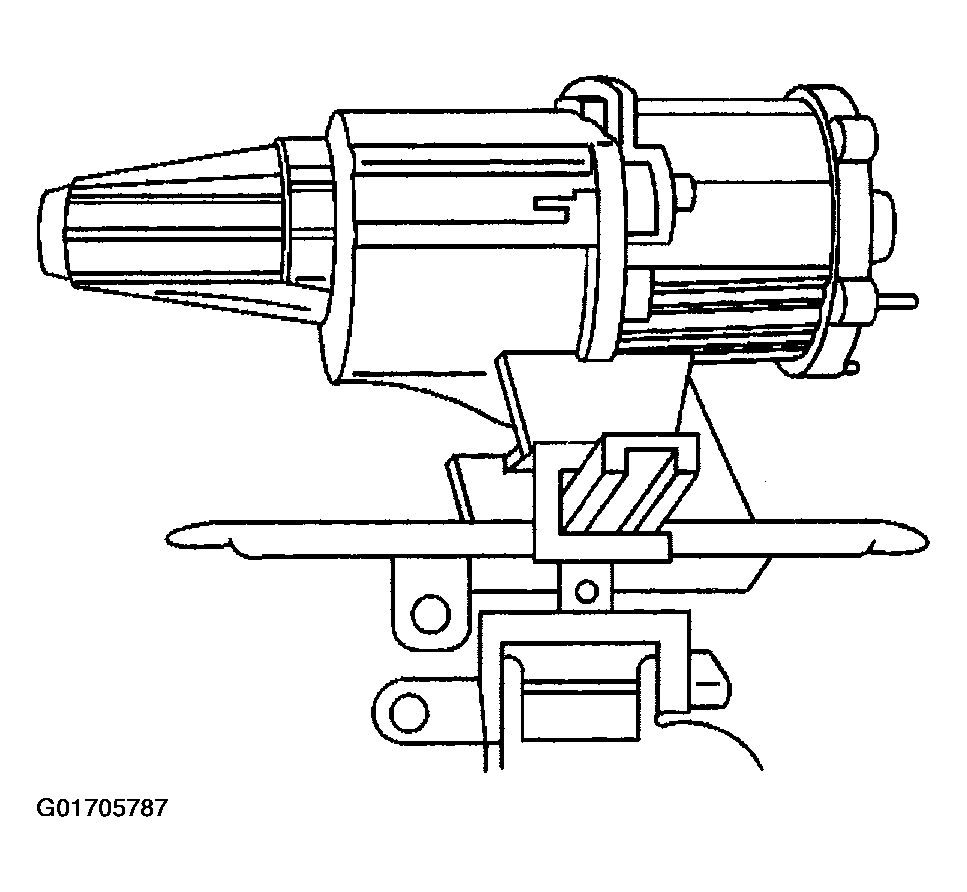

    Fig 1: Removing Transfer Case Assembly From Vehicle
    G01705787Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The transmission mount DOES NOT have to be removed to perform the following service procedure.
  3. Remove the transmission mount bolts.
    4. Fig 2: Removing Transmission Mount Bolts
    G01705788Courtesy of GENERAL MOTORS CORP.
  4. Install a transmission jack under the transmission.
  5. Lift the transmission just high enough to remove the transfer case adapter.

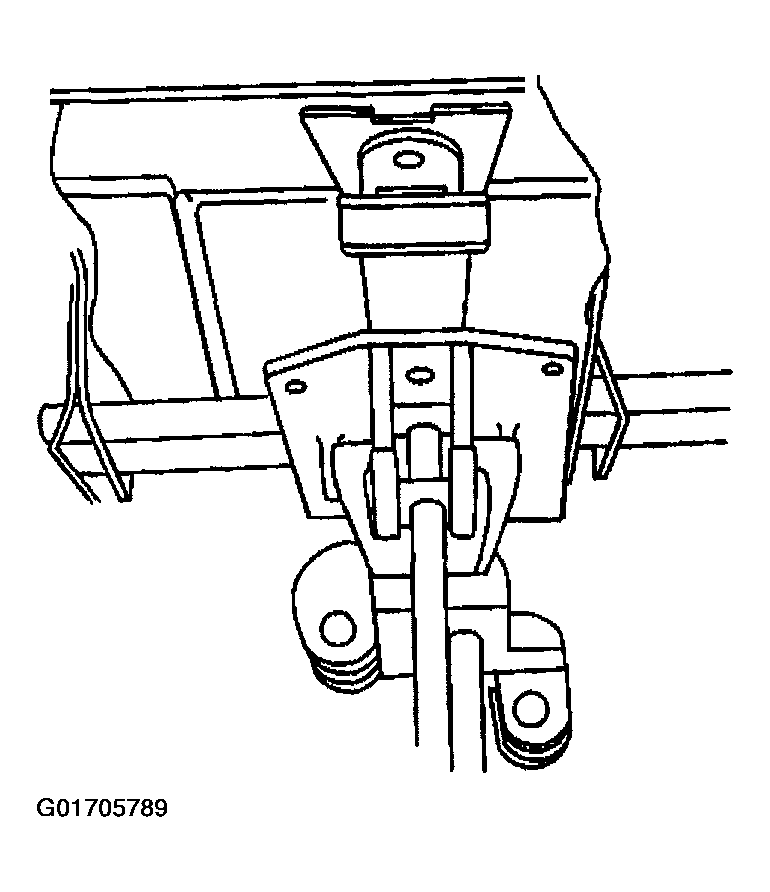

    6. Fig 3: Lifting Transmission Just High Enough To Remove Transfer Case Adapter
    G01705789Courtesy of GENERAL MOTORS CORP.
  6. Remove the transfer case adapter mounting bolts from the transmission.

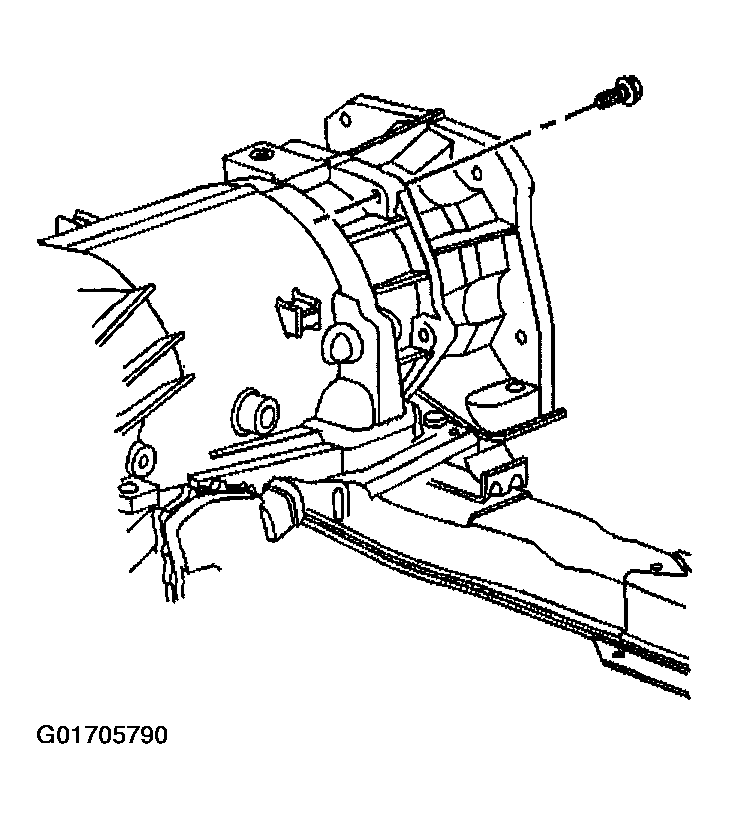

    7. Fig 4: Removing Transfer Case Adapter Mounting Bolts From Transmission
    G01705790Courtesy of GENERAL MOTORS CORP.
  7. Remove the transfer case adapter from the transmission.

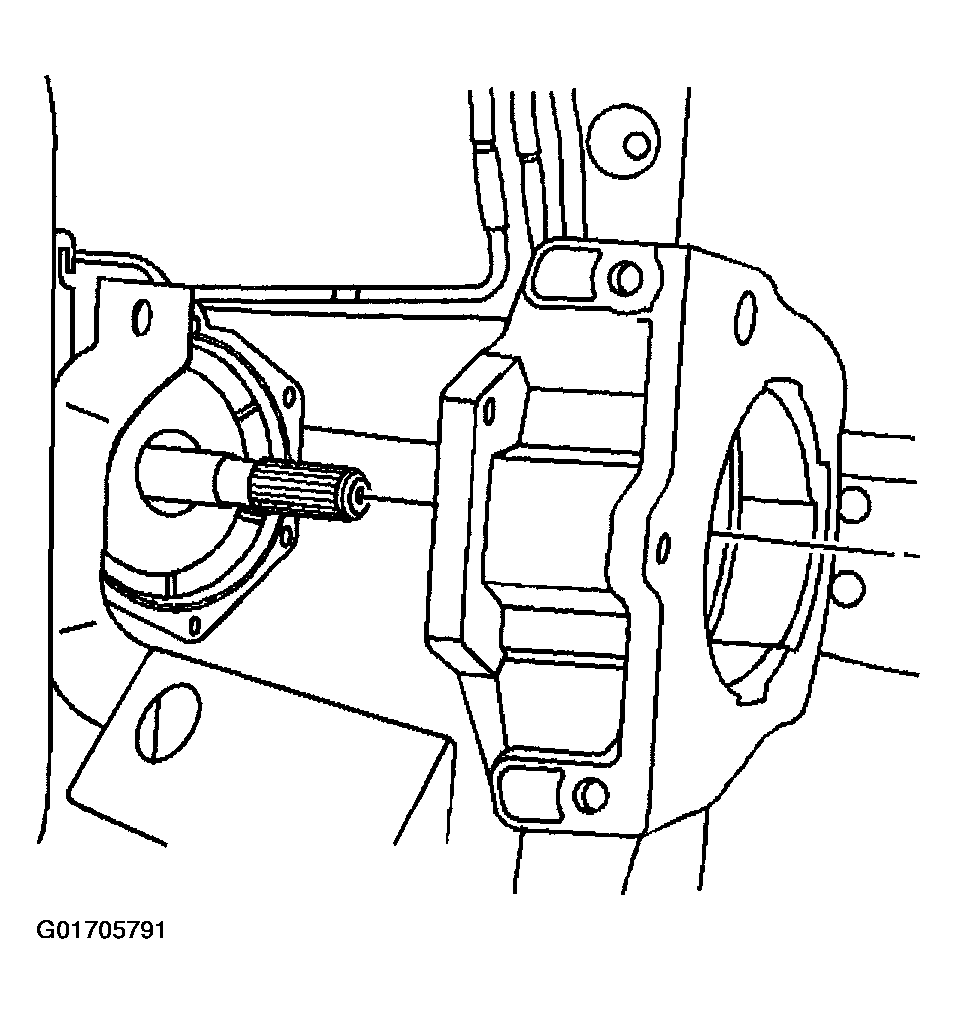

    8. Fig 5: Removing Transfer Case Adapter From Transmission
    G01705791Courtesy of GENERAL MOTORS CORP.
  8. Remove the transfer case adapter seal.

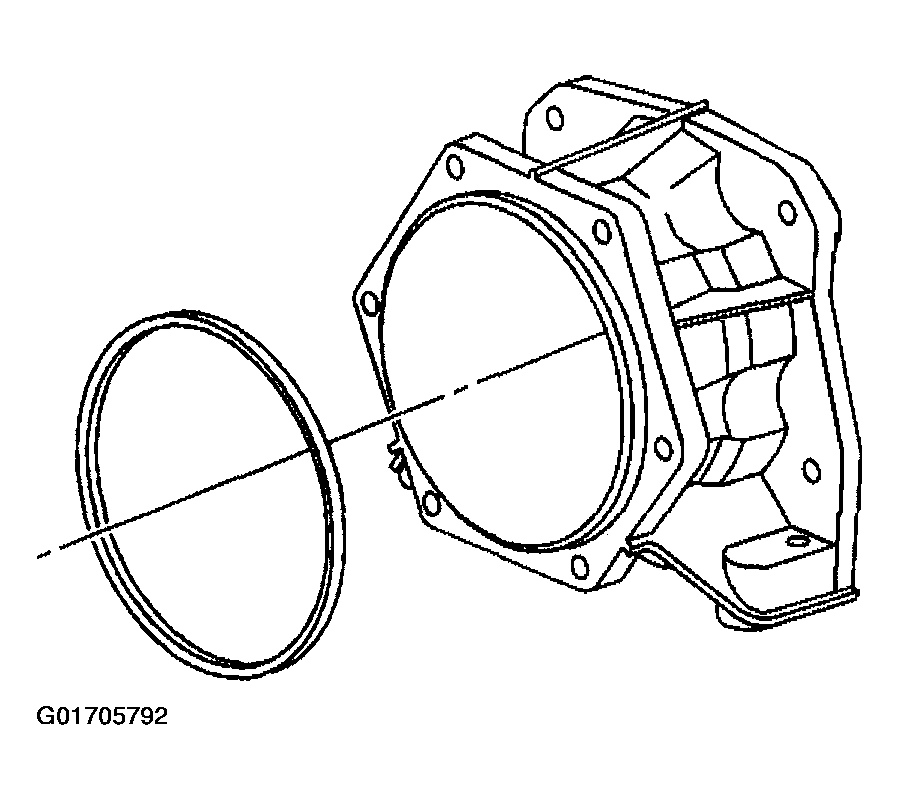

    9. Fig 6: Removing Transfer Case Adapter Seal
    G01705792Courtesy of GENERAL MOTORS CORP.
