Transfer Case Control Component Views

WARNING: This page is about a different car, the 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

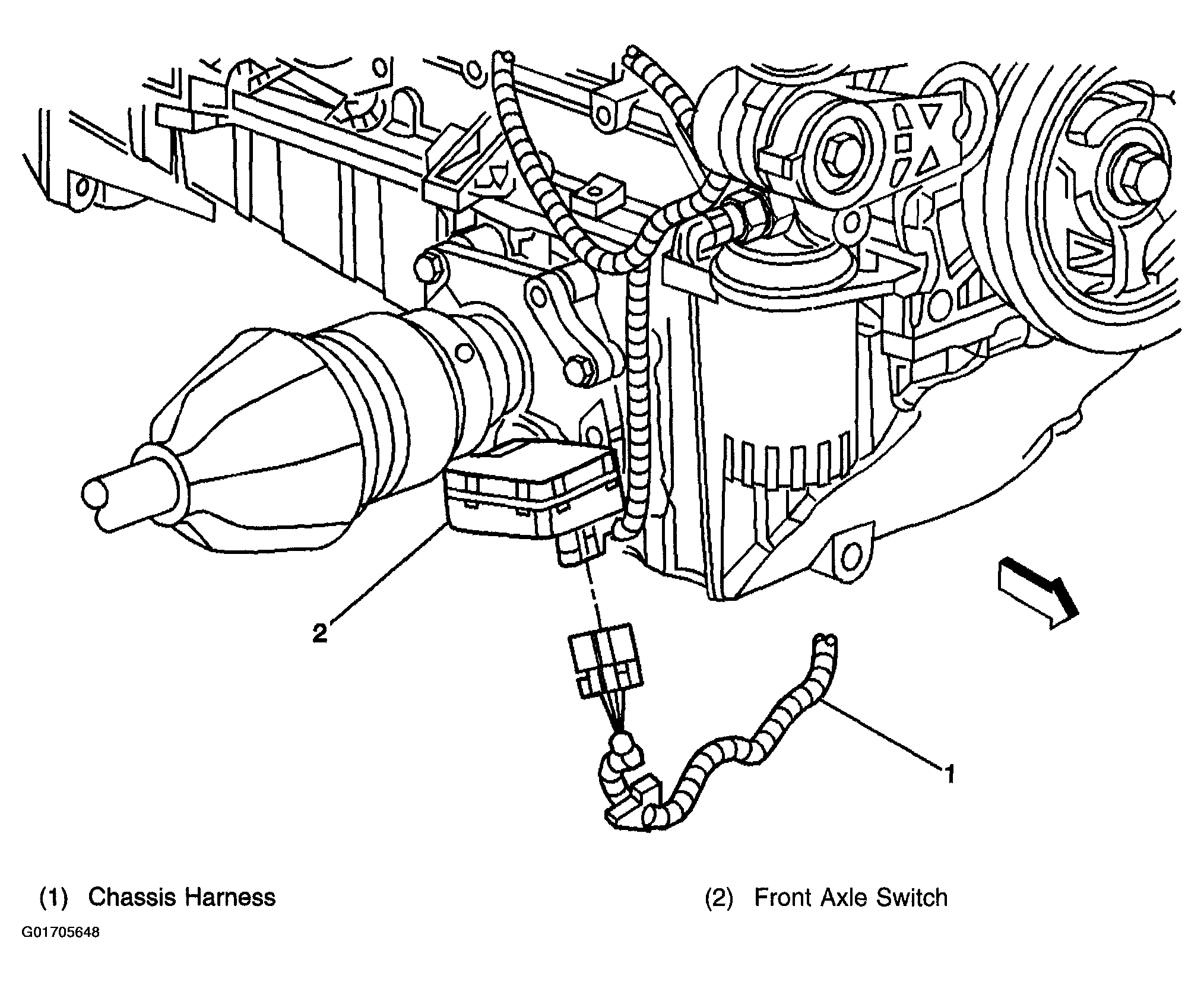

Fig 1: Engine (Lower Right)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Instrument Carrier Support (Lower Left)

Courtesy of GENERAL MOTORS CORP.

1. Transfer Case Shift Control Module

2. Instrument Carrier Support, Left Side

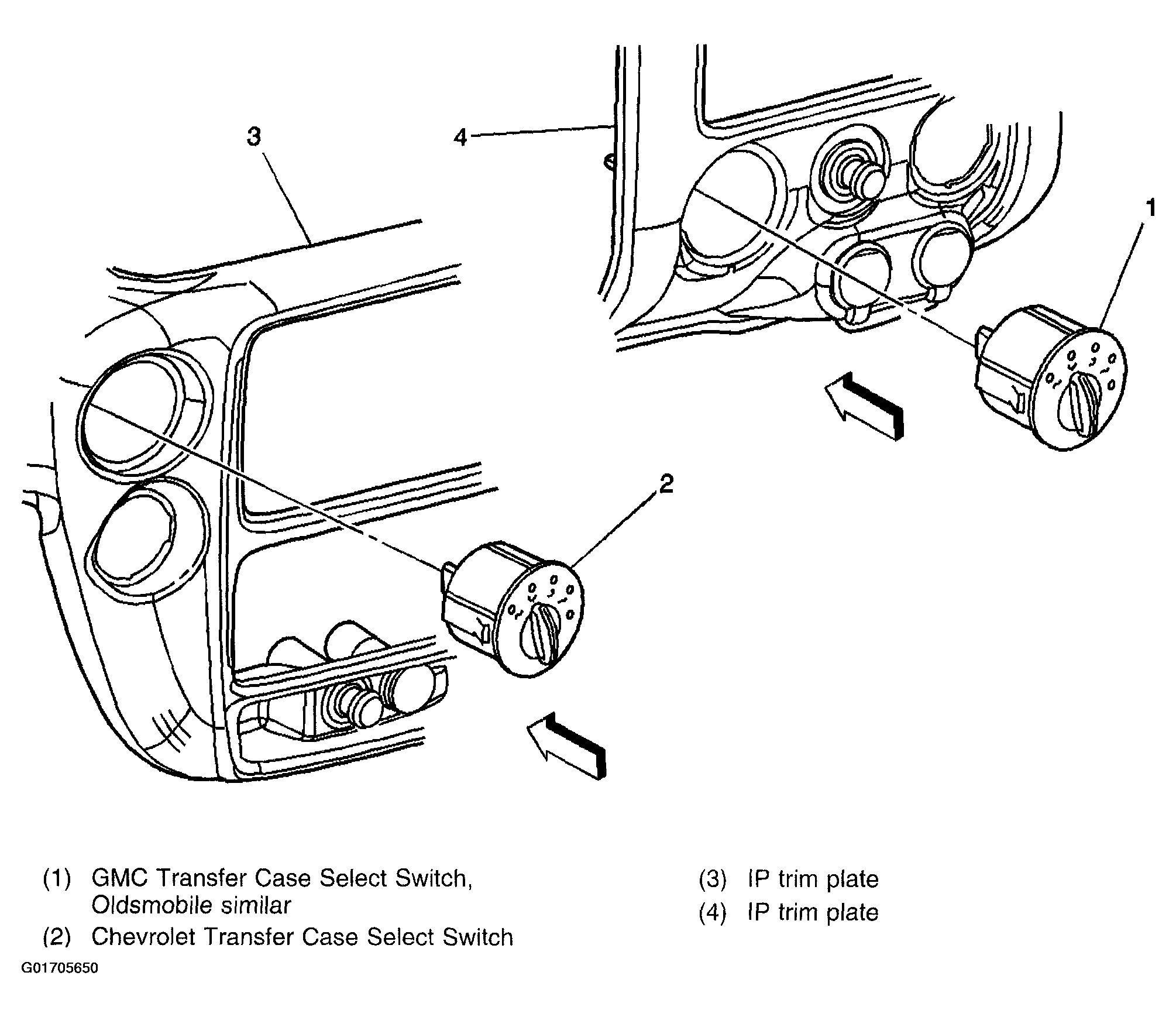

Fig 3: Transfer Case Select Switch

Courtesy of GENERAL MOTORS CORP.

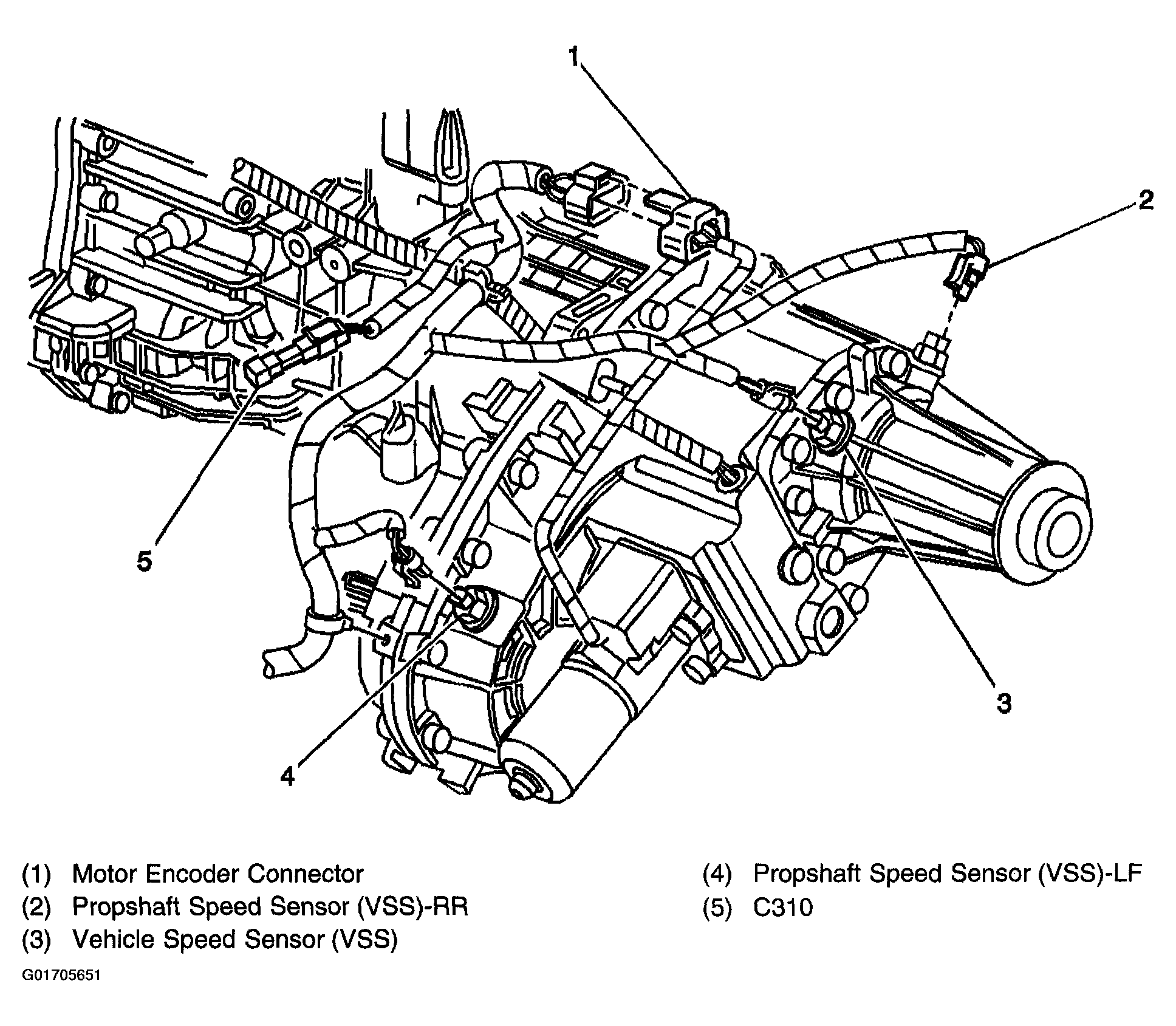

Fig 4: Transfer Case

Courtesy of GENERAL MOTORS CORP.
