Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the fuel tank shield mounting bolts.
  3. Remove the fuel tank shield.

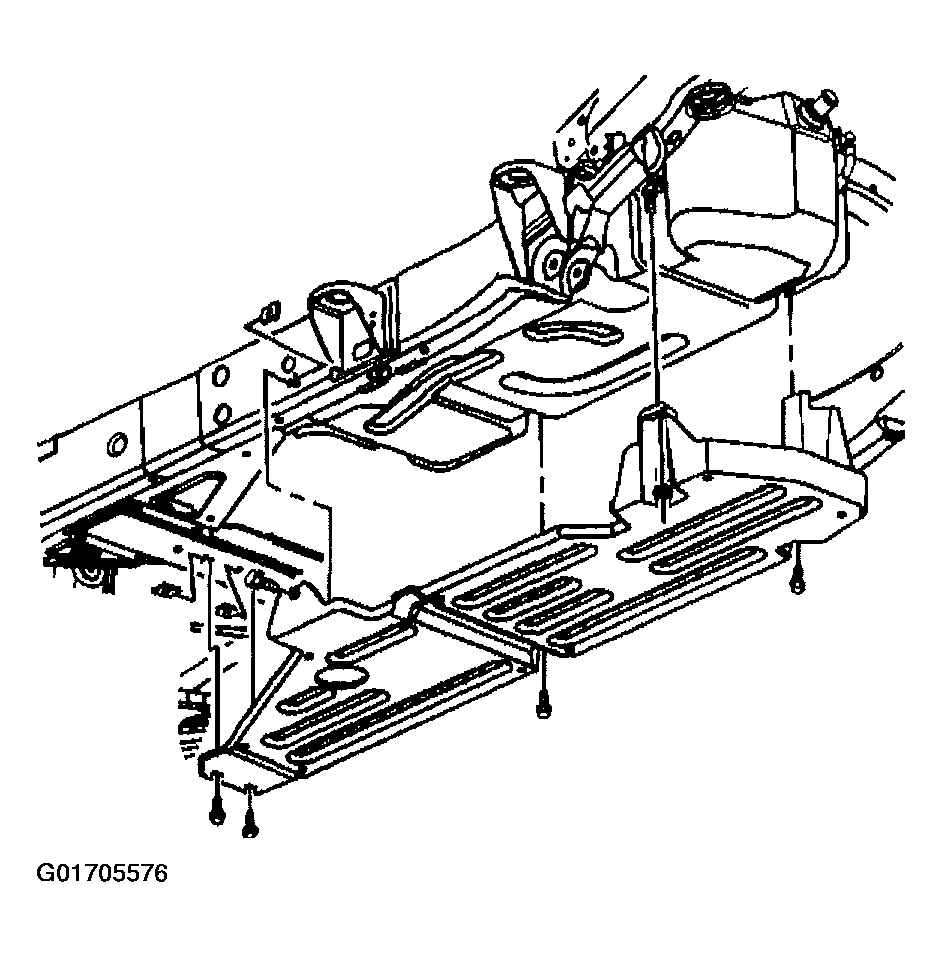

    4. Fig 1: Removing Fuel Tank Shield
    G01705576Courtesy of GENERAL MOTORS CORP.
  4. Remove the transfer case front speed sensor electrical connector.

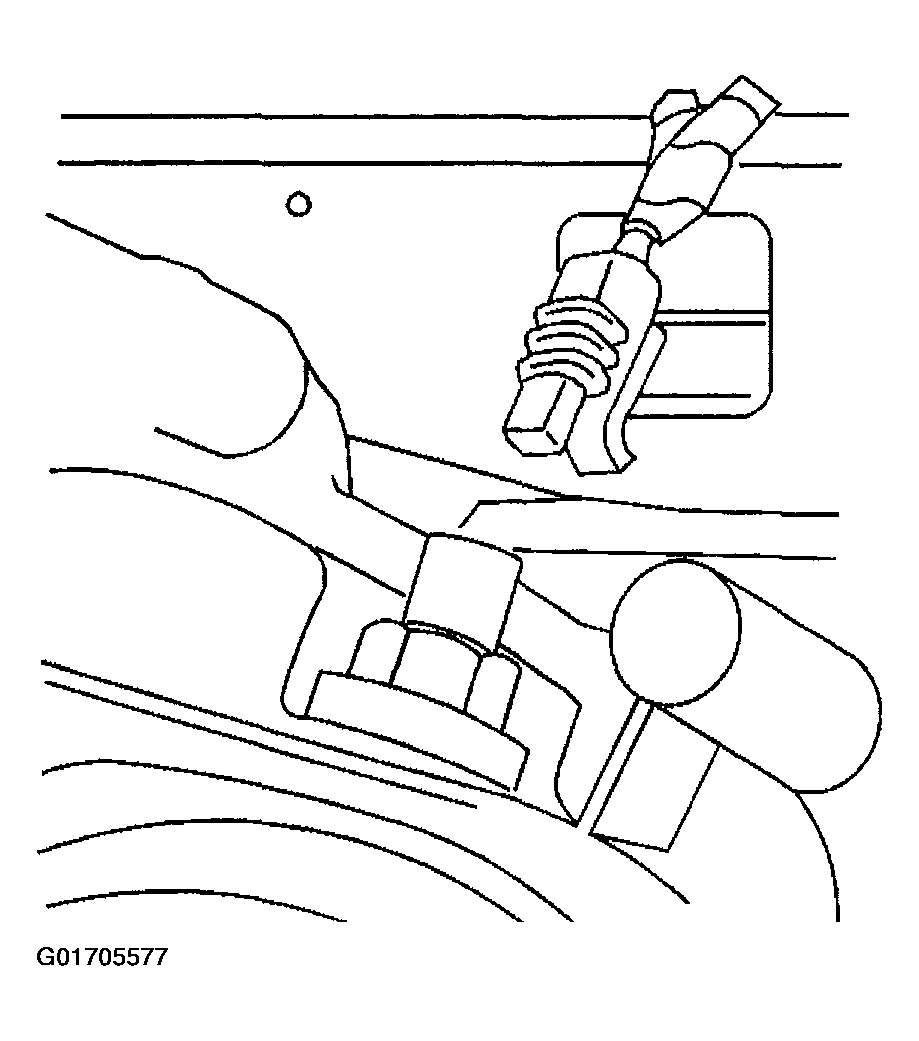

    5. Fig 2: Removing Transfer Case Front Speed Sensor Electrical Connector
    G01705577Courtesy of GENERAL MOTORS CORP.
  5. Remove the transfer case front speed sensor.

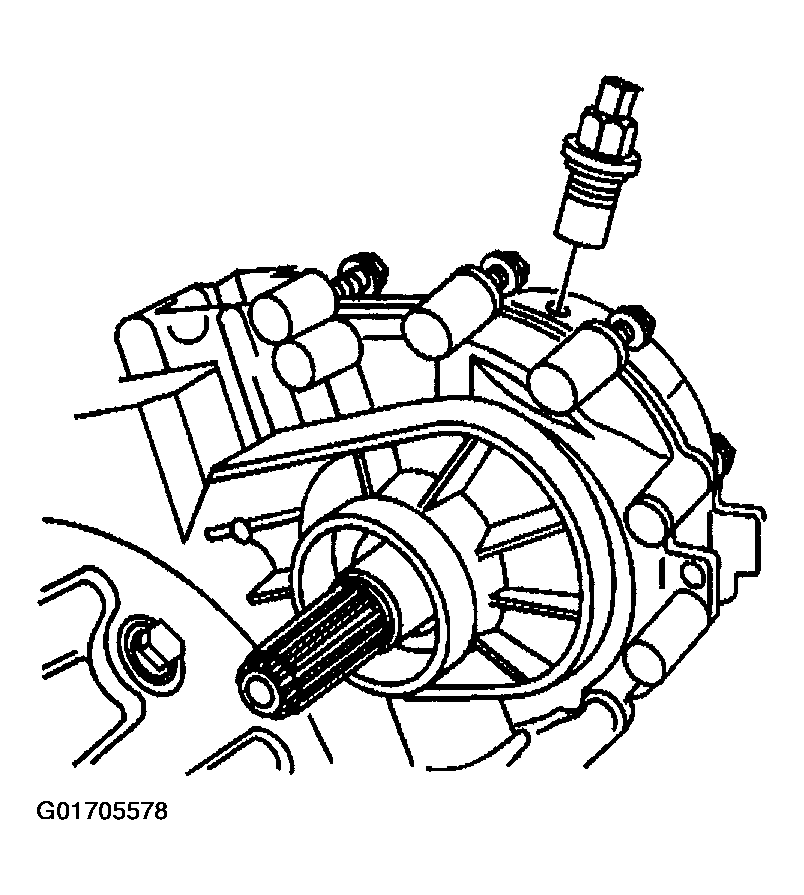

    6. Fig 3: Removing Transfer Case Front Speed Sensor
    G01705578Courtesy of GENERAL MOTORS CORP.
