Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the rear output shaft seal.
  2. Using the J 37668-A, install the rear output shaft seal.

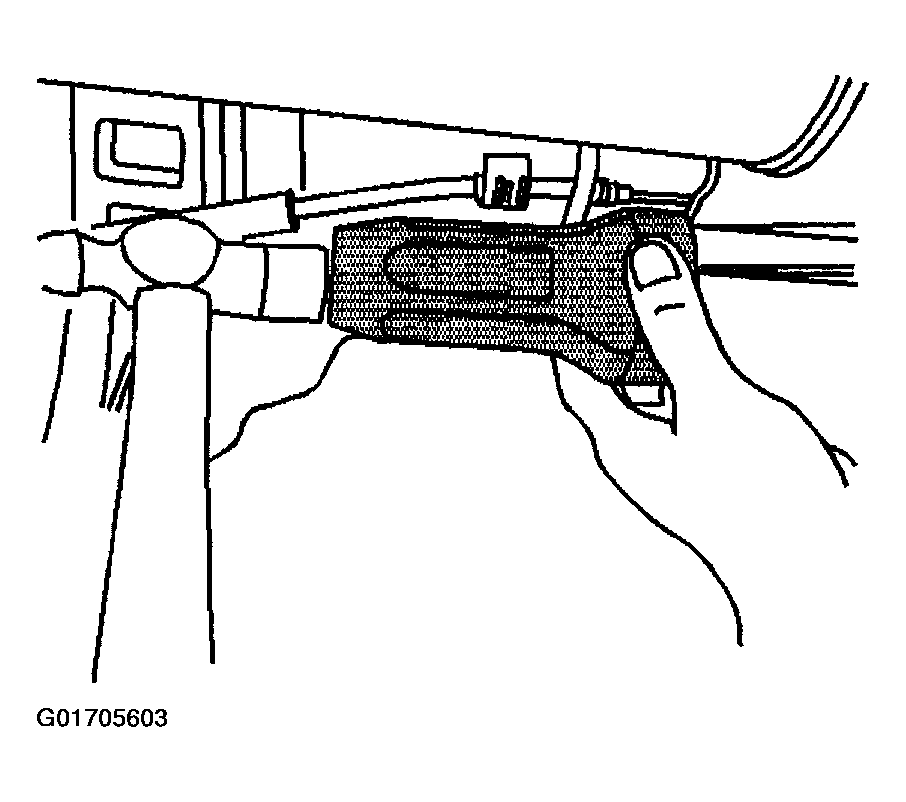

    3. Fig 1: Installing Rear Output Shaft Seal
    G01705603Courtesy of GENERAL MOTORS CORP.
  3. Install the rear propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - REAR in Propeller Shaft.
    4. Fig 2: Installing Rear Propeller Shaft
    G01705604Courtesy of GENERAL MOTORS CORP.
  4. Inspect the transfer case fluid level. Refer to Transfer Case Fluid Replacement .
  5. Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
