Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the J 44636-2 on the front output shaft.
  2. Align the front output shaft seal on the J 44636-2.

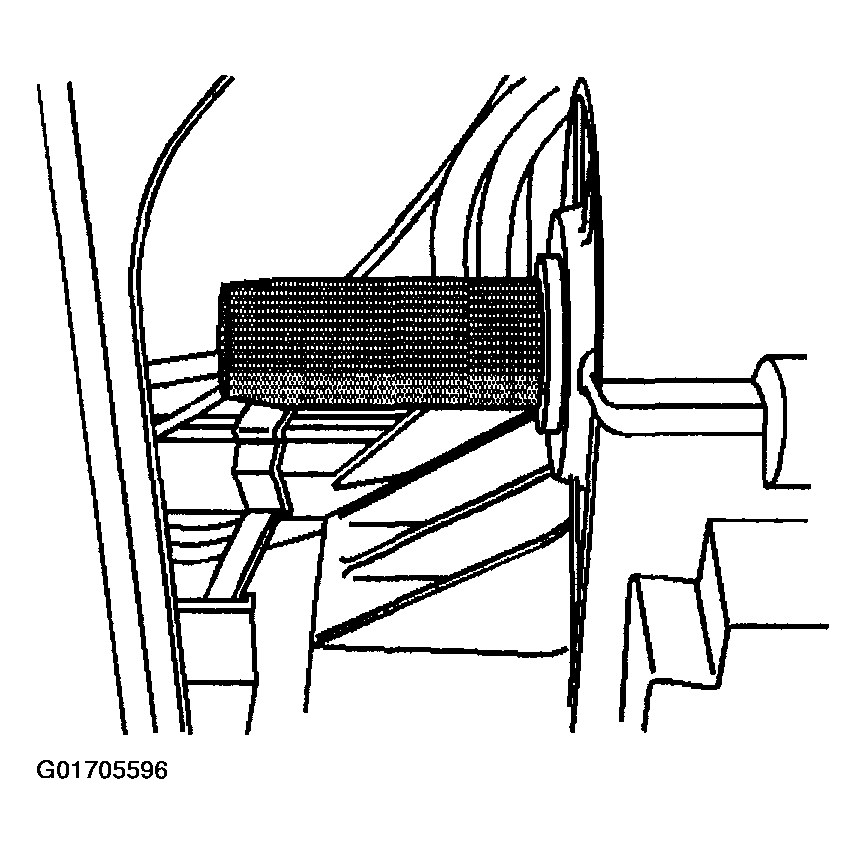

    3. Fig 1: Aligning Front Output Shaft Seal On J 44636-2
    G01705596Courtesy of GENERAL MOTORS CORP.
  3. Using the J 45236, install the front output shaft seal.

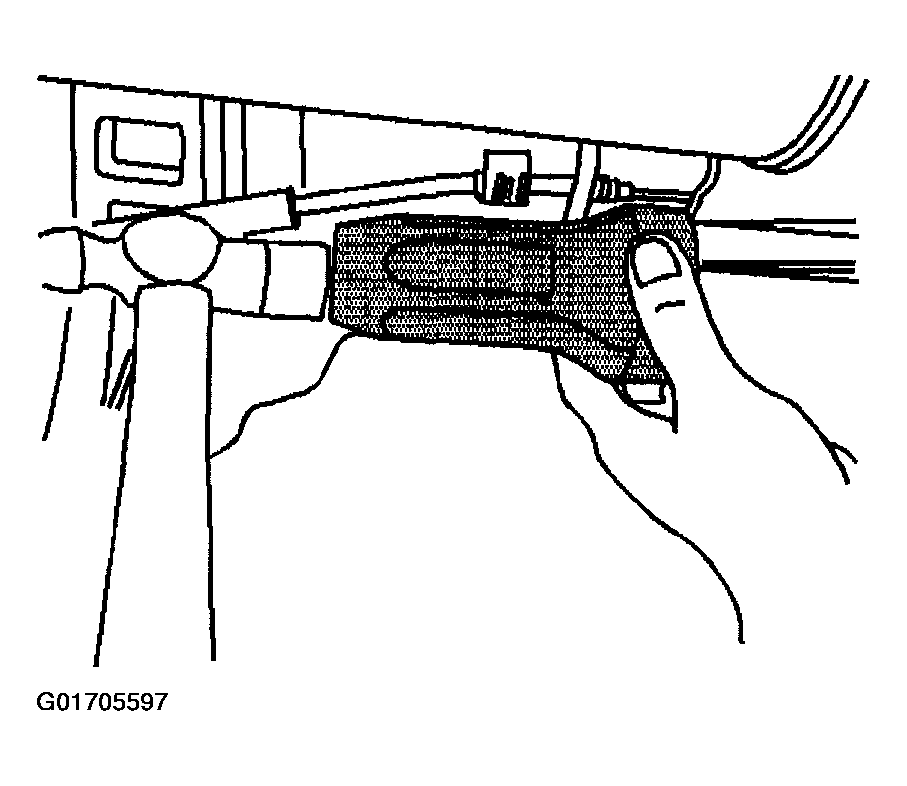

    4. Fig 2: Installing Front Output Shaft Seal
    G01705597Courtesy of GENERAL MOTORS CORP.
  4. Remove the J 44636-1 and the J 44636-2.
  5. Install the dust shield on the front output shaft.

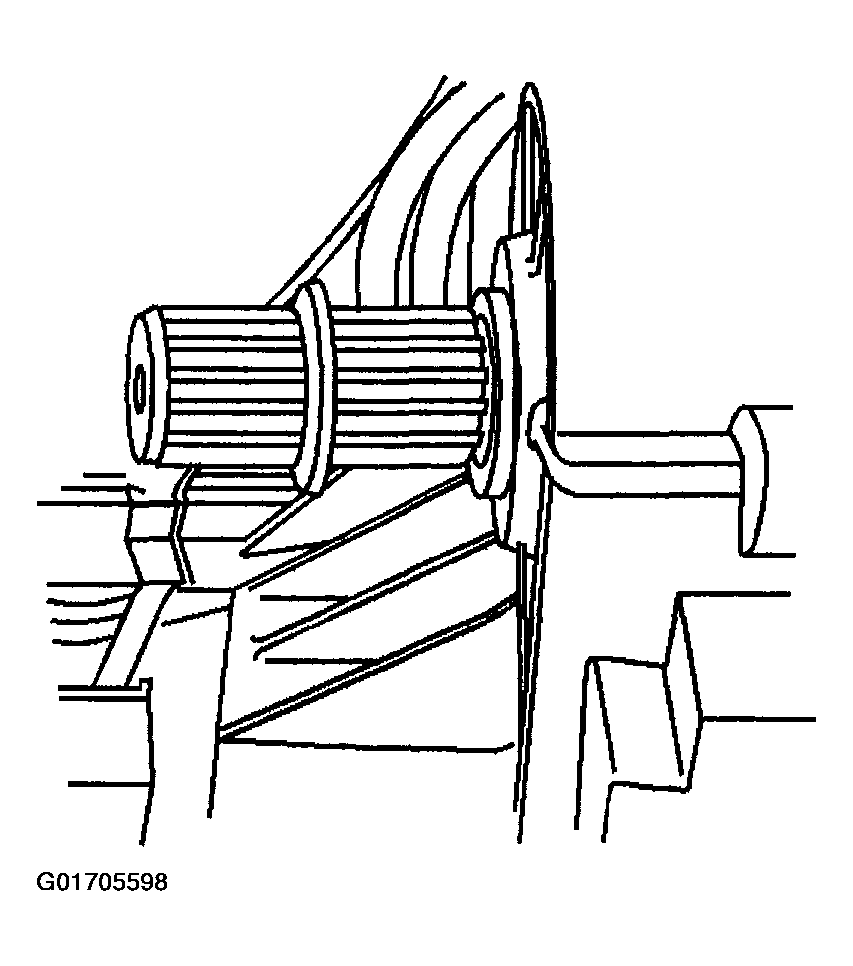

    6. Fig 3: Installing Dust Shield On Front Output Shaft
    G01705598Courtesy of GENERAL MOTORS CORP.
  6. Install the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - FRONT in Propeller Shaft.

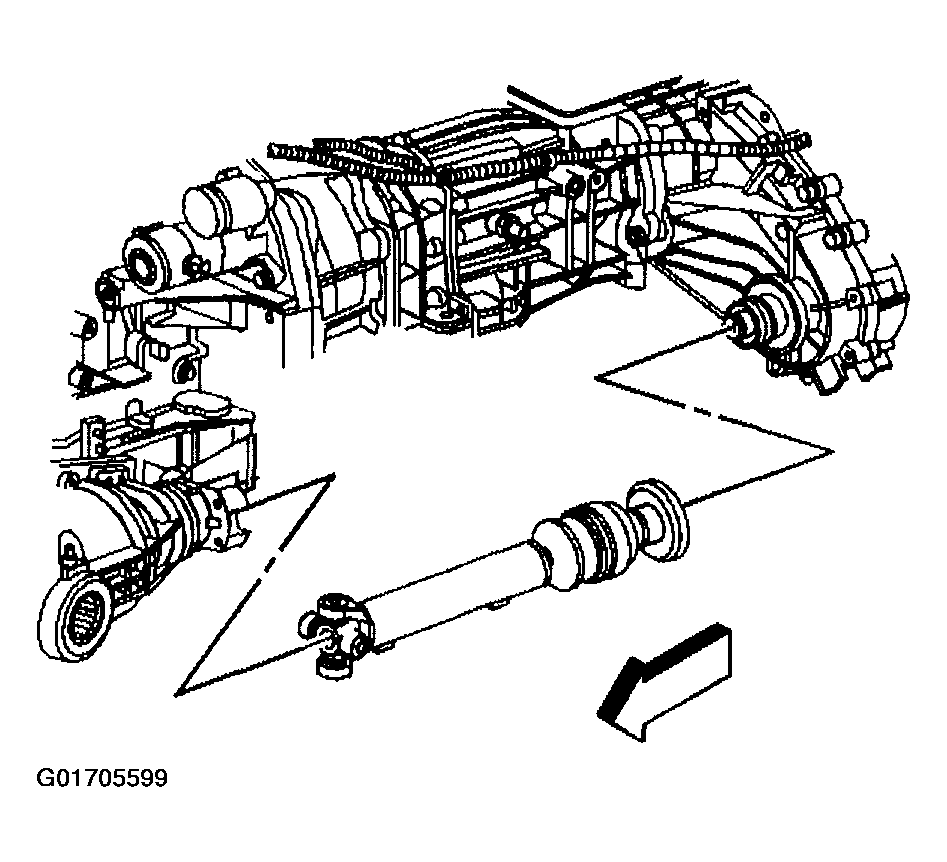

    7. Fig 4: Installing Front Propeller Shaft
    G01705599Courtesy of GENERAL MOTORS CORP.
  7. Inspect the transfer case fluid level. Refer to Transfer Case Fluid Replacement .
  8. Install the fuel tank shield.

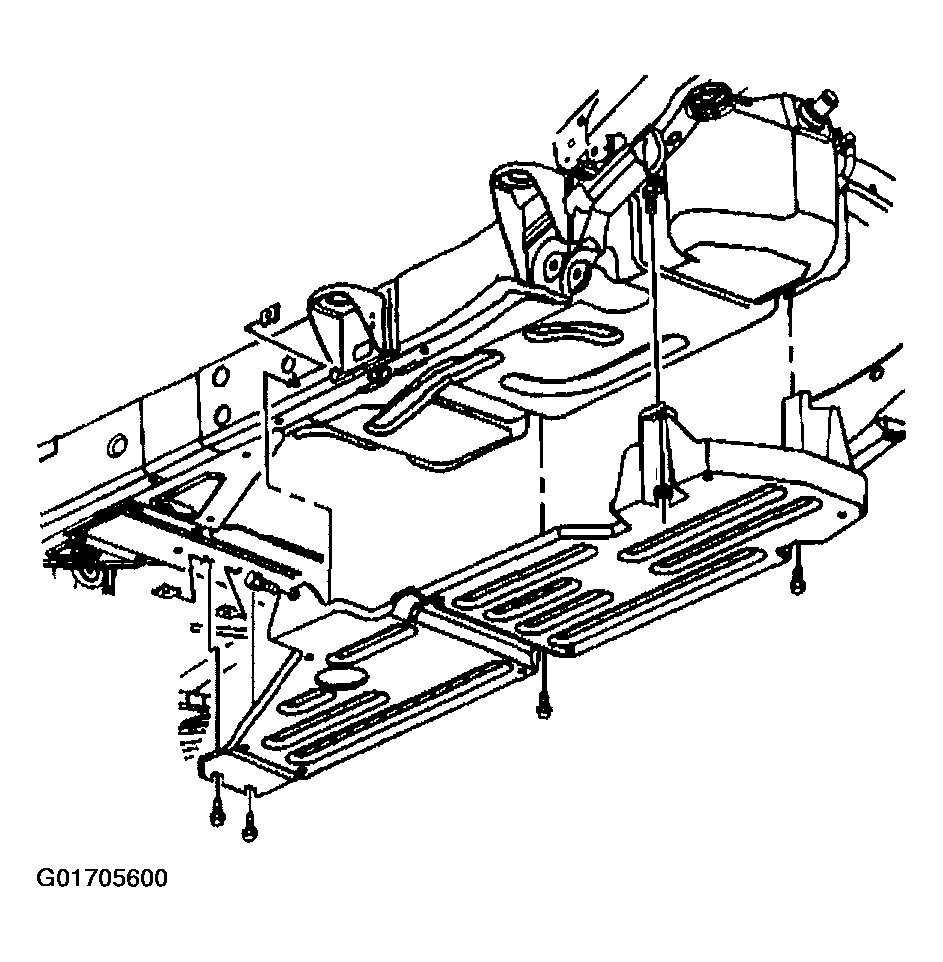

    9. Fig 5: Installing Fuel Tank Shield
    G01705600Courtesy of GENERAL MOTORS CORP.
  9. Install the fuel tank mounting bolts.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Tighten

    Tighten the fuel tank mounting bolts to 25 N.m (18 lb ft).

  10. Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
