Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the fuel tank shield mounting bolts.
  3. Remove the fuel tank shield.

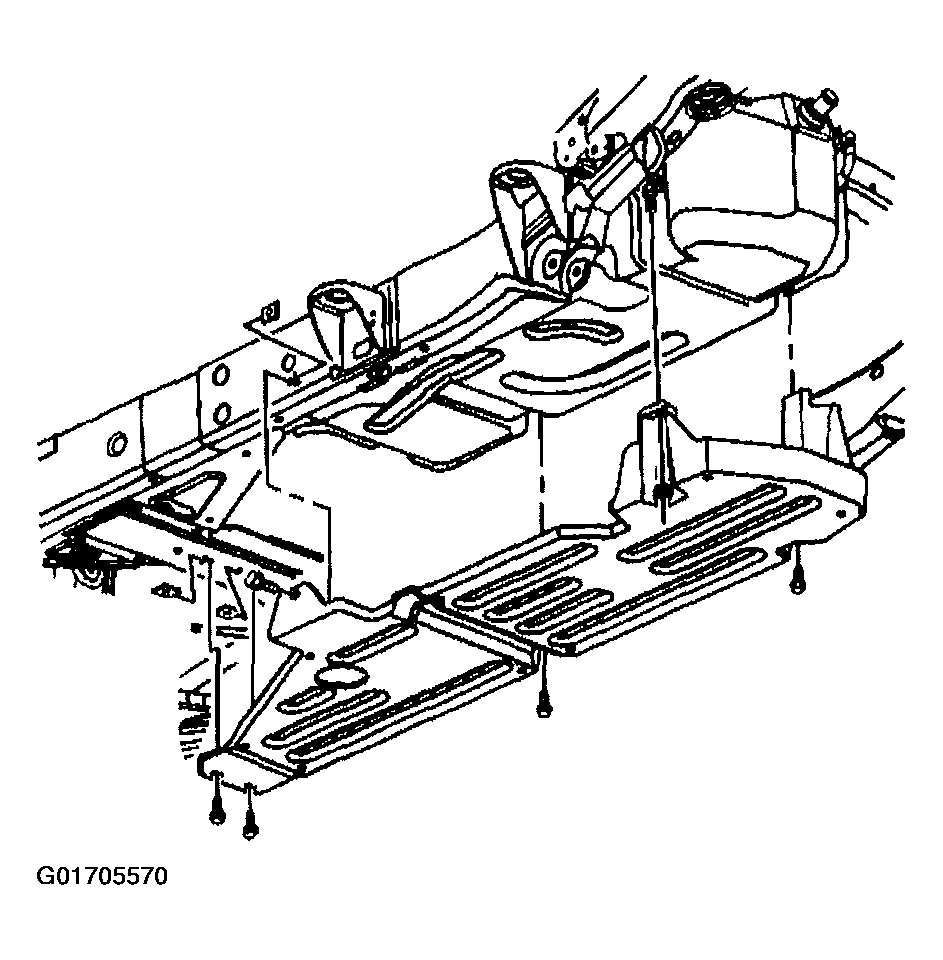

    4. Fig 1: Removing Fuel Tank Shield
    G01705570Courtesy of GENERAL MOTORS CORP.
  4. Remove the motor/encoder electrical connector.
  5. Remove the motor/encoder mounting bolts.

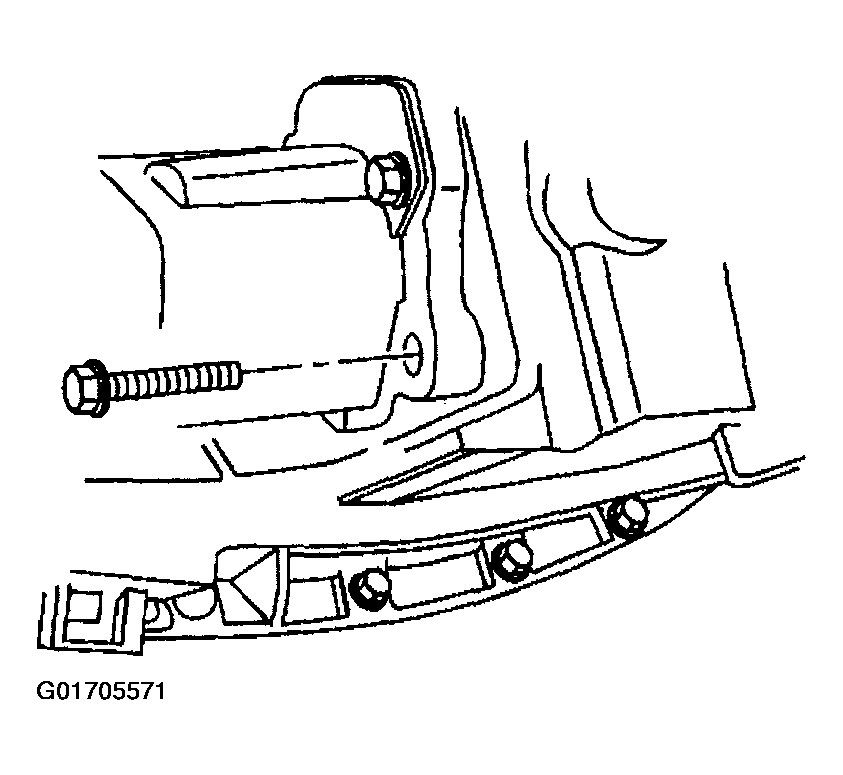

    6. Fig 2: Removing Motor/Encoder Mounting Bolts
    G01705571Courtesy of GENERAL MOTORS CORP.
  6. Remove the motor/encoder assembly.

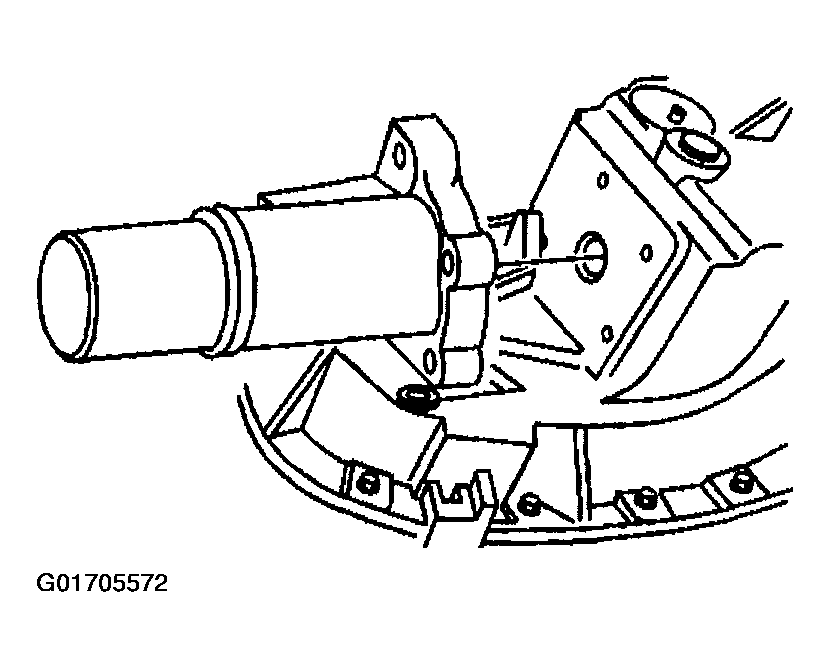

    7. Fig 3: Removing Motor/Encoder Assembly
    G01705572Courtesy of GENERAL MOTORS CORP.
