Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the fuel tank shield mounting bolts.
  3. Remove the fuel tank shield.

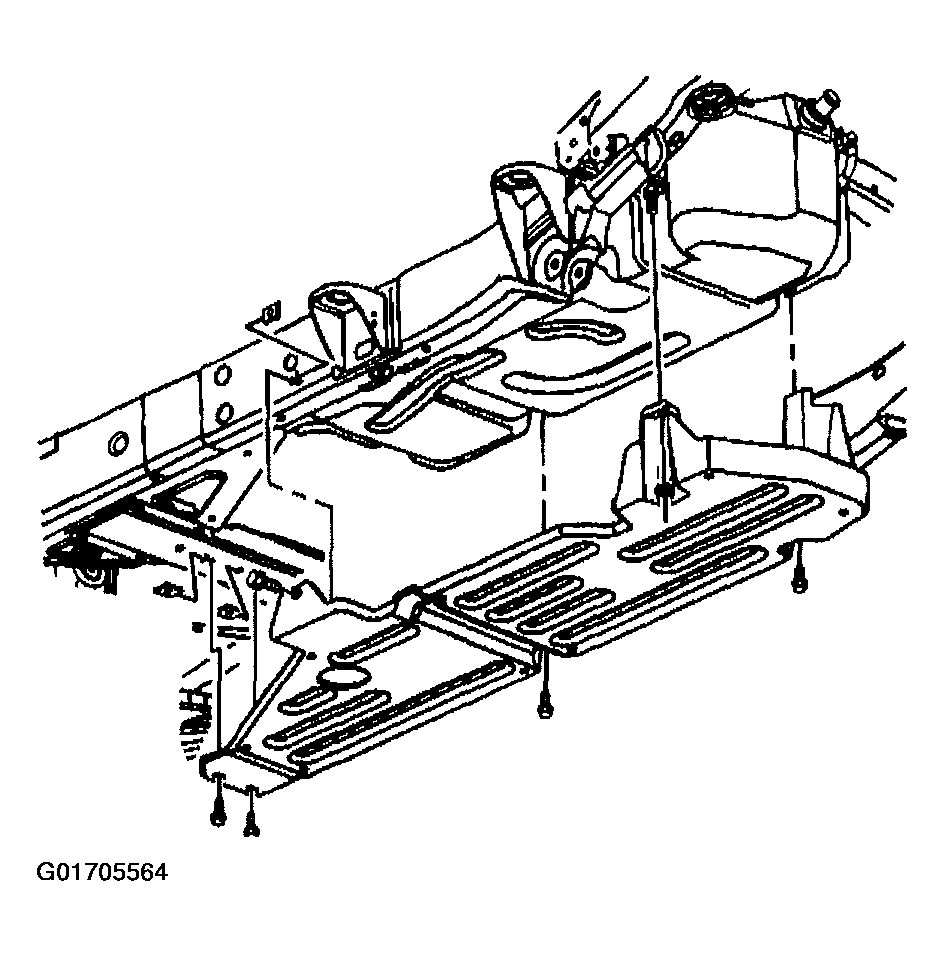

    4. Fig 1: Removing Fuel Tank Shield
    G01705564Courtesy of GENERAL MOTORS CORP.
  4. Remove the fill plug.
    5. Fig 2: Removing Fill Plug
    G01705565Courtesy of GENERAL MOTORS CORP.
  5. Remove the drain plug.

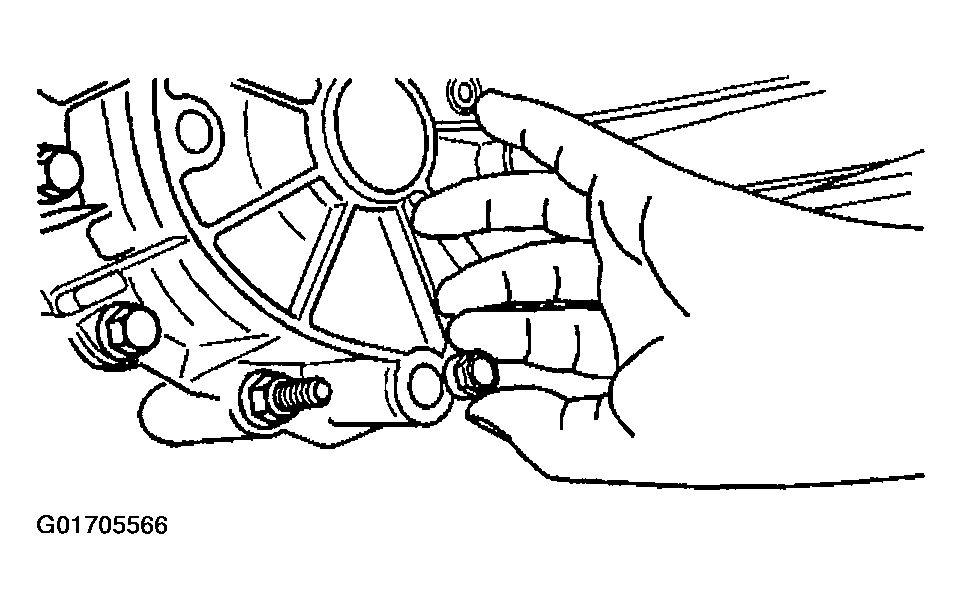

    6. Fig 3: Removing Drain Plug
    G01705566Courtesy of GENERAL MOTORS CORP.
