Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drain plug.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Tighten

    Tighten the drain plug to 34 N.m (25 lb ft)

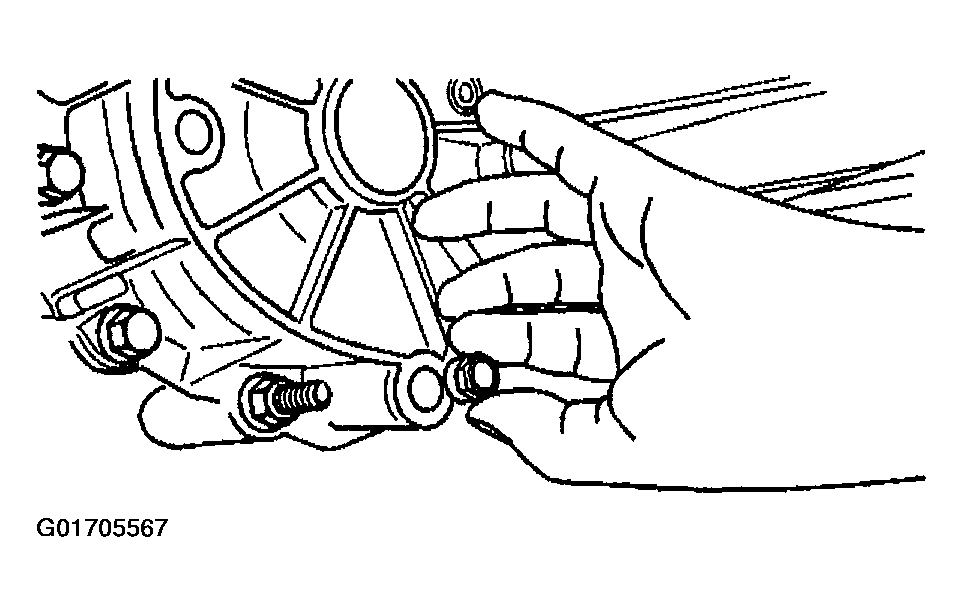

    2. Fig 1: Installing Drain Plug
    G01705567Courtesy of GENERAL MOTORS CORP.
  2. Fill the transfer case with the proper fluid. Refer to Capacities - Approximate Fluid .
  3. Install the fill plug.

    Tighten

    Tighten the fill plug to 34 N.m (25 lb ft).

    4. Fig 2: Installing Fill Plug
    G01705568Courtesy of GENERAL MOTORS CORP.
  4. Install the fuel tank shield.

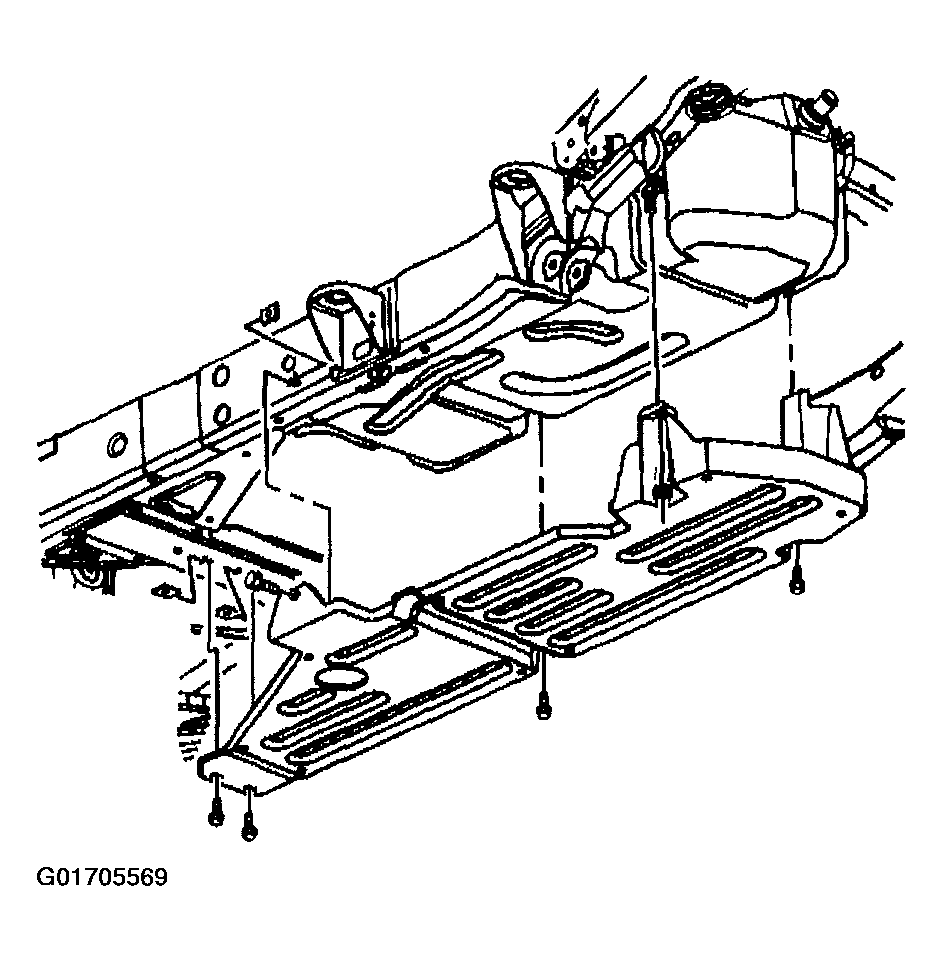

    5. Fig 3: Installing Fuel Tank Shield
    G01705569Courtesy of GENERAL MOTORS CORP.
  5. Install the fuel tank shield mounting bolts.

    Tighten

    Tighten the fuel tank mounting bolts to 25 N.m (18 lb ft).

  6. Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
