Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the transfer case assembly from the vehicle. Refer to Transfer Case Assembly Replacement .

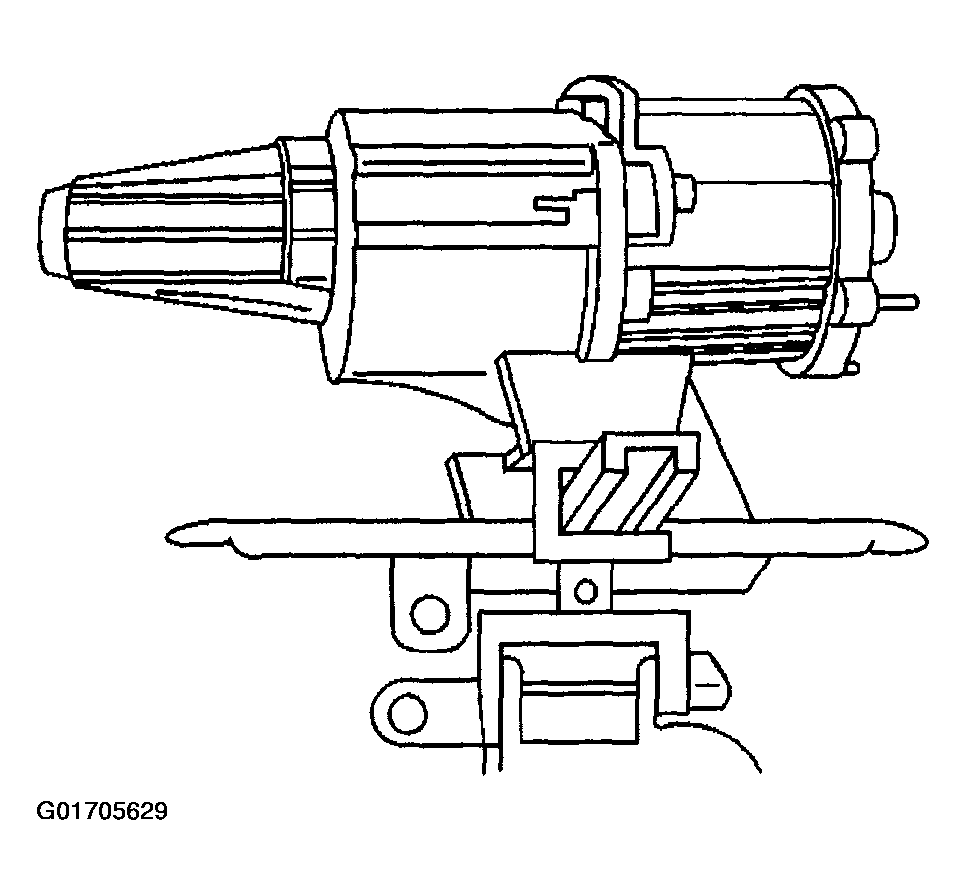

    Fig 1: Removing Transfer Case Assembly From Vehicle
    G01705629Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The transmission mount DOES NOT have to be removed to perform the following service procedure.
  3. Remove the transmission mount bolts.
    4. Fig 2: Removing Transmission Mount Bolts
    G01705630Courtesy of GENERAL MOTORS CORP.
  4. Install a transmission jack under the transmission.
  5. Lift the transmission just high enough to remove the transfer case adapter.

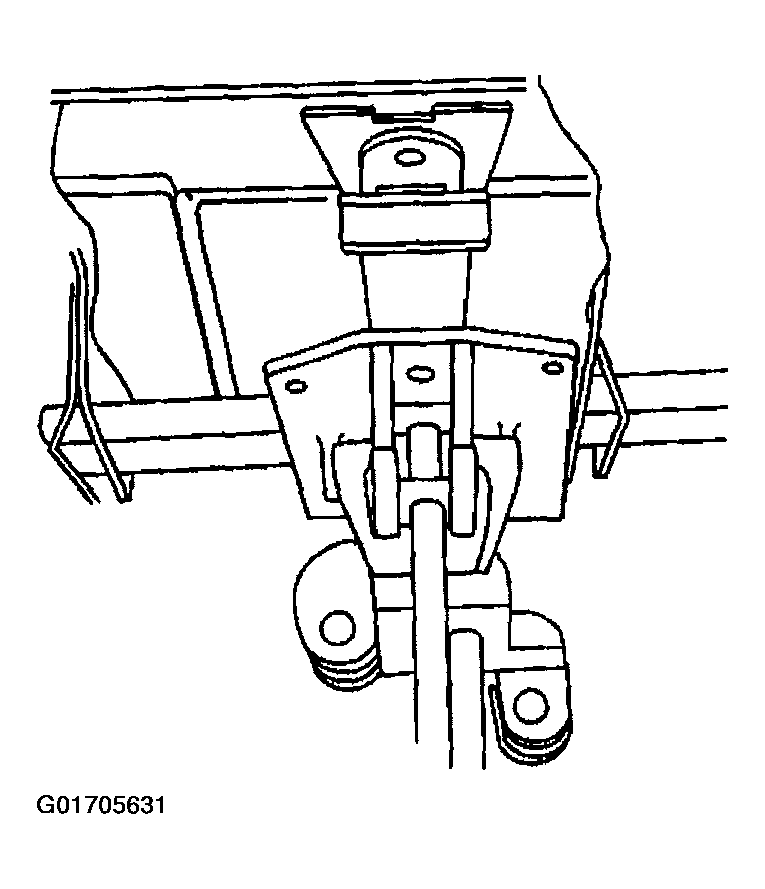

    6. Fig 3: Removing Transfer Case Adapter
    G01705631Courtesy of GENERAL MOTORS CORP.
  6. Remove the transfer case adapter mounting bolts from the transmission.

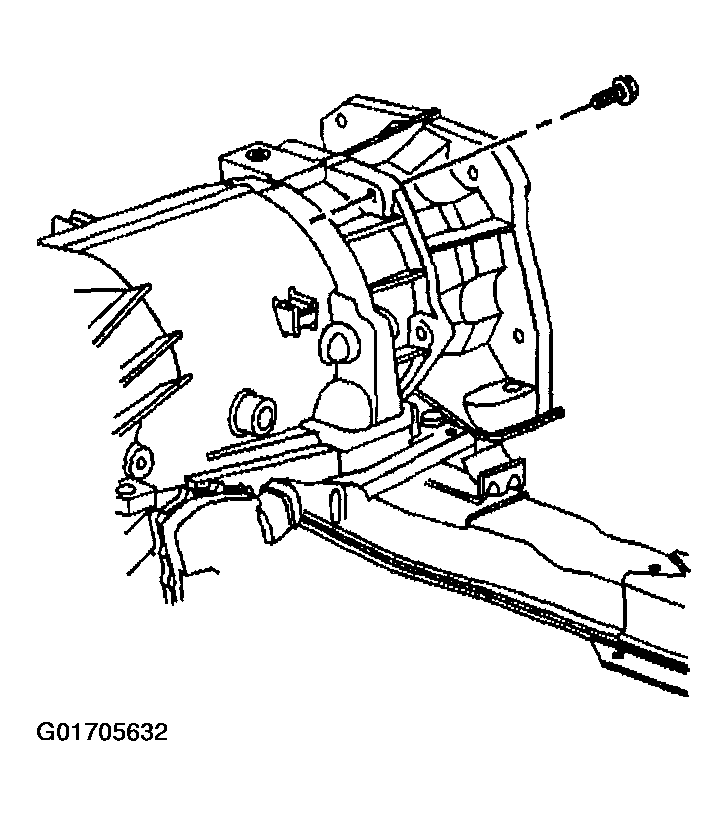

    7. Fig 4: Removing Transfer Case Adapter Mounting Bolts From Transmission
    G01705632Courtesy of GENERAL MOTORS CORP.
  7. Remove the transfer case adapter from the transmission.

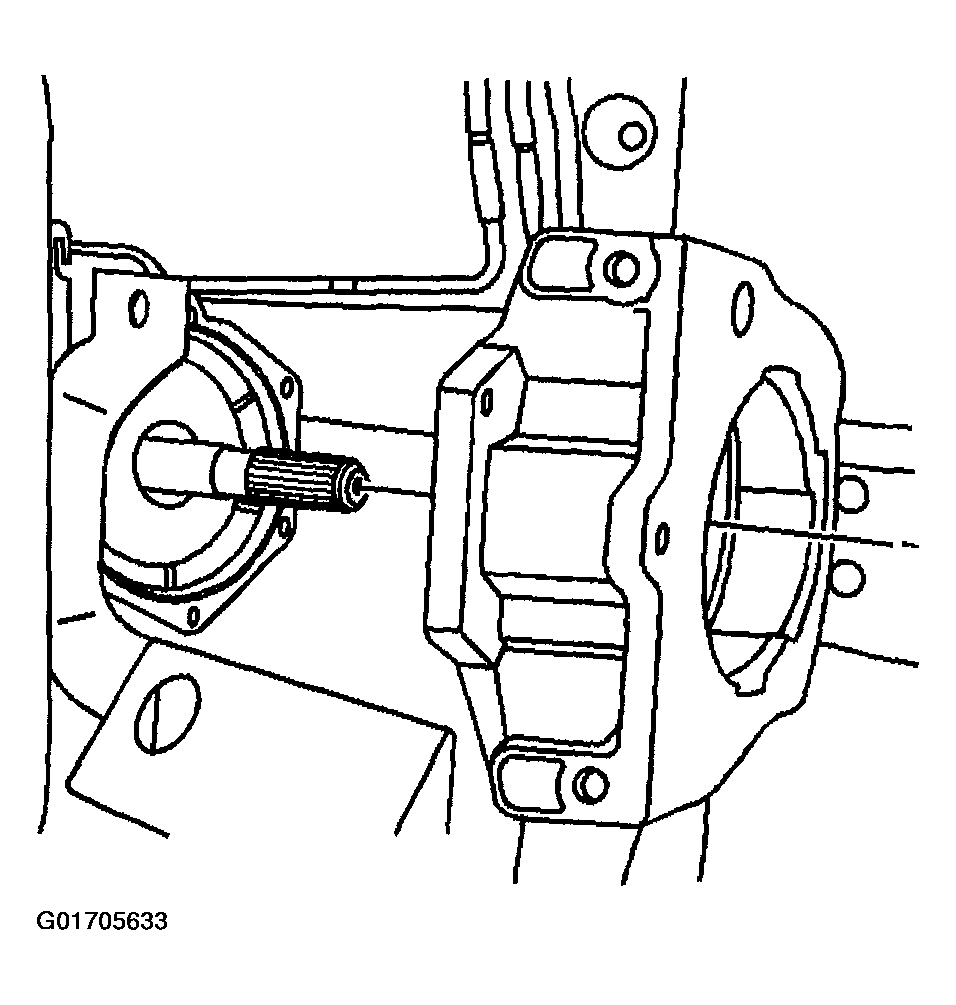

    8. Fig 5: Removing Transfer Case Adapter From Transmission
    G01705633Courtesy of GENERAL MOTORS CORP.
  8. Remove the transfer case adapter seal.

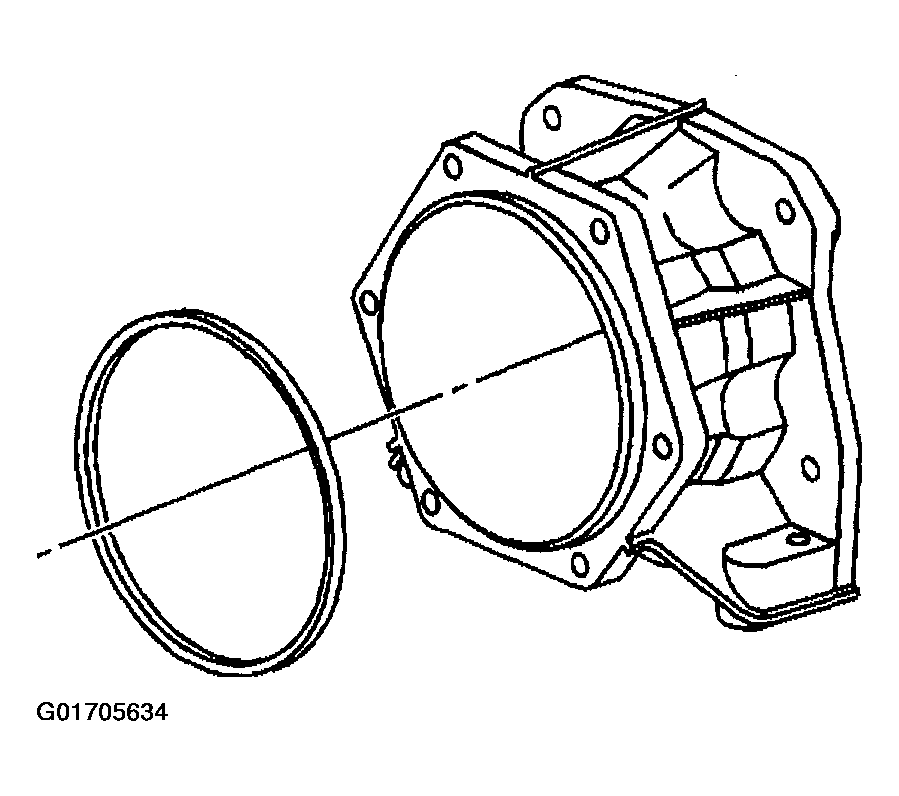

    9. Fig 6: Removing Transfer Case Adapter Seal
    G01705634Courtesy of GENERAL MOTORS CORP.
