Transfer Case Control Component Views

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Instrument Carrier Support (Lower Left)

Courtesy of GENERAL MOTORS CORP.

1. Transfer Case Shift Control Module

2. Instrument Carrier Support, Left Side

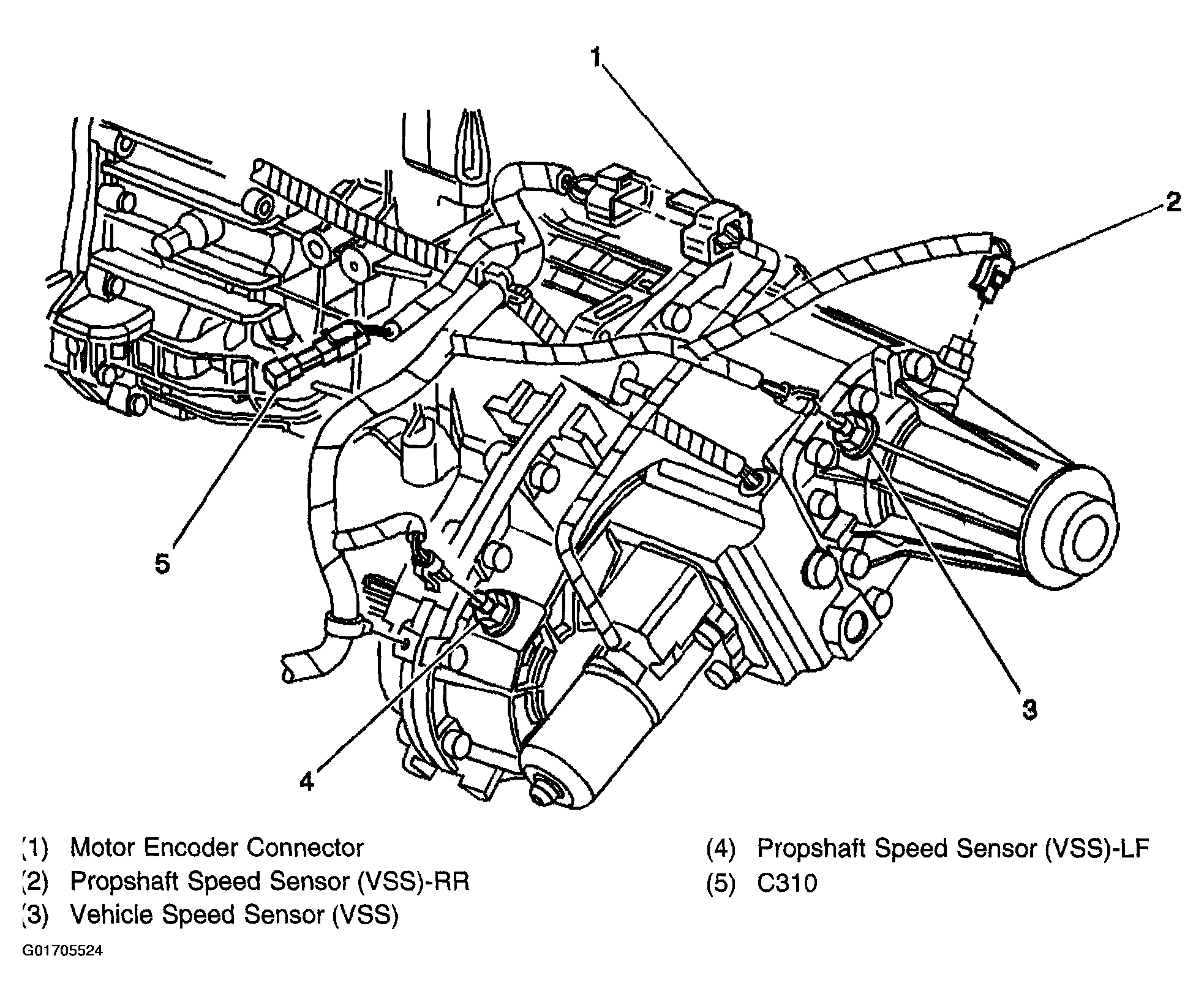

Fig 2: Transfer Case Electrical Components

Courtesy of GENERAL MOTORS CORP.
