Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Drain the rear axle. Refer to Lubricant Change .
  3. Remove the rear axle housing cover bolts (1).
    IMPORTANT: Do not nick or cut the rear axle housing cover gasket.

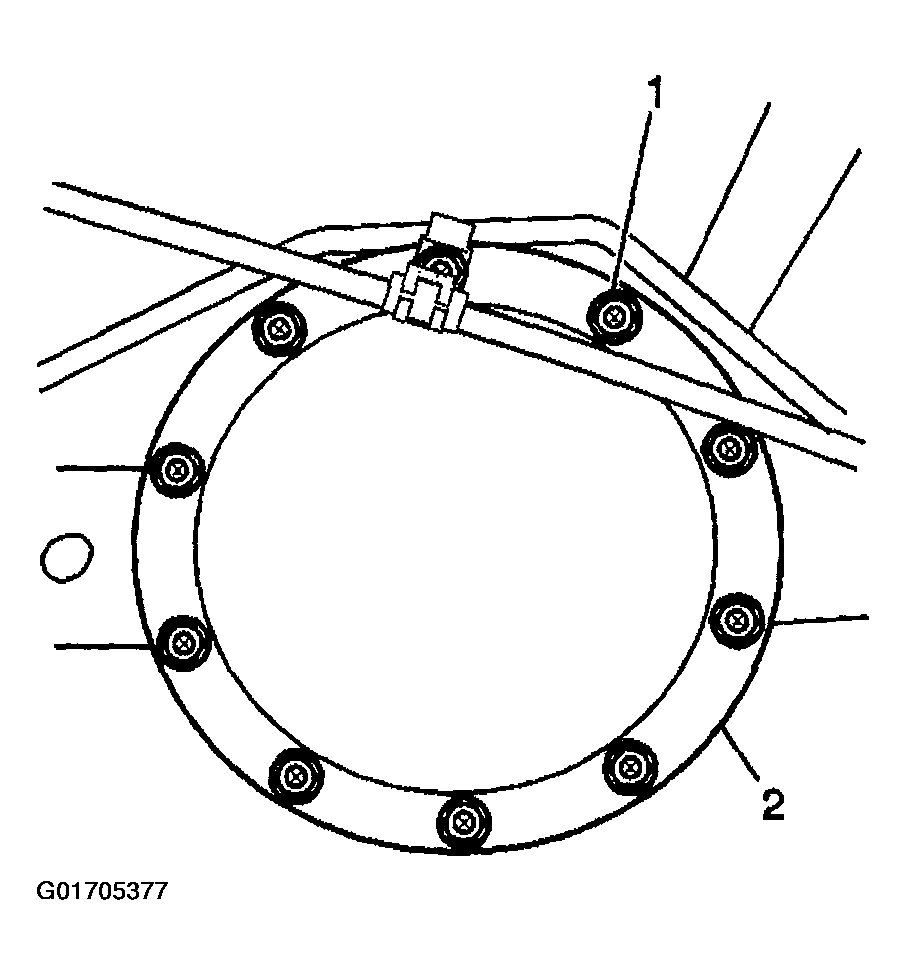

    Fig 1: Removing Rear Axle Housing Cover Bolts
    G01705377Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear axle housing cover (2) from the axle housing.
  5. Drain the axle lubricant into a suitable container.
