Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the rear axle cover gasket for nicks, cuts or damage that may cause the gasket to not seal properly. If any of these conditions exist, replace the gasket.
  2. If the gasket is to be reused, clean the rear axle housing cover gasket a suitable cleaner.
  3. Clean the rear axle housing cover gasket surface and the rear axle housing gasket surface with a suitable cleaner.
  4. Install the rear axle housing cover gasket and the rear axle housing cover (2).

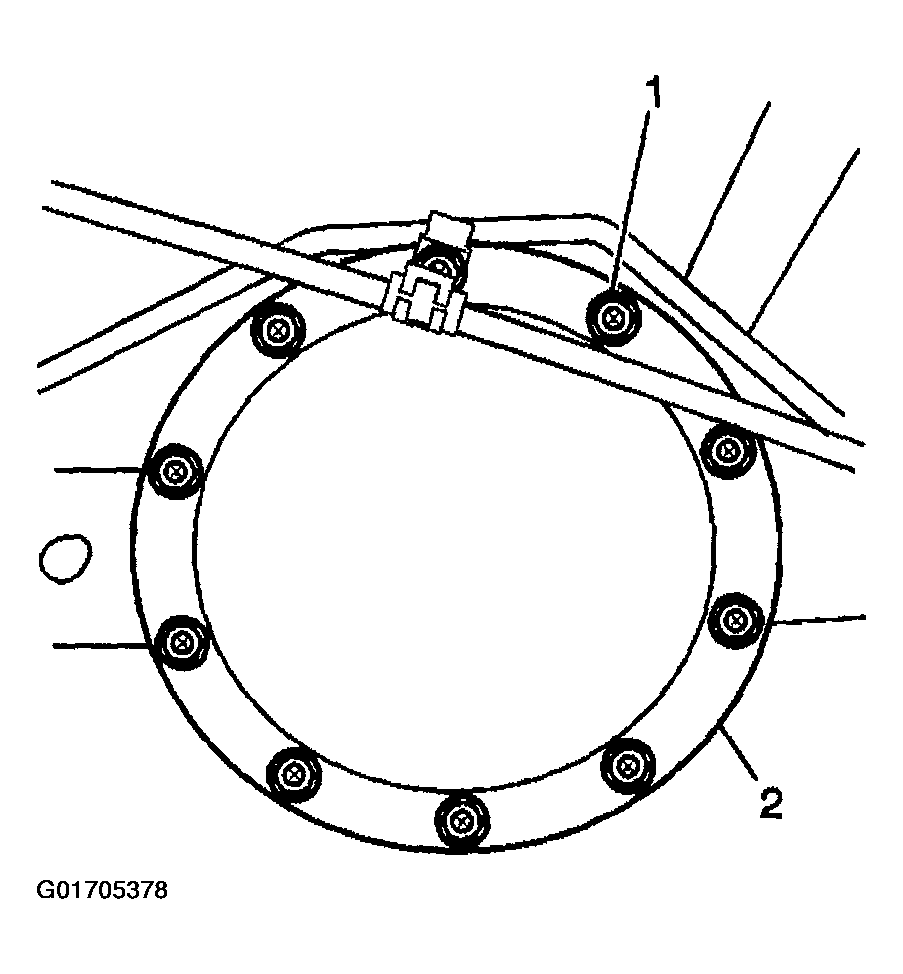

    5. Fig 1: Installing Rear Axle Housing Cover
    G01705378Courtesy of GENERAL MOTORS CORP.
  5. Install the rear axle housing cover bolts (1).
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Tighten

    Tighten the rear axle housing cover bolts in a crosswise pattern to 30 N.m (20 lb ft).

  6. Fill the rear axle with axle lubricant. Use the proper fluid. Refer to Capacities - Approximate Fluid and Fluid and Lubricant Recommendations in Maintenance and Lubrication.
  7. Lower the vehicle.
