Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear axle drain plug.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Tighten

    Tighten the rear axle drain plug to 48 N.m (35 lb ft).

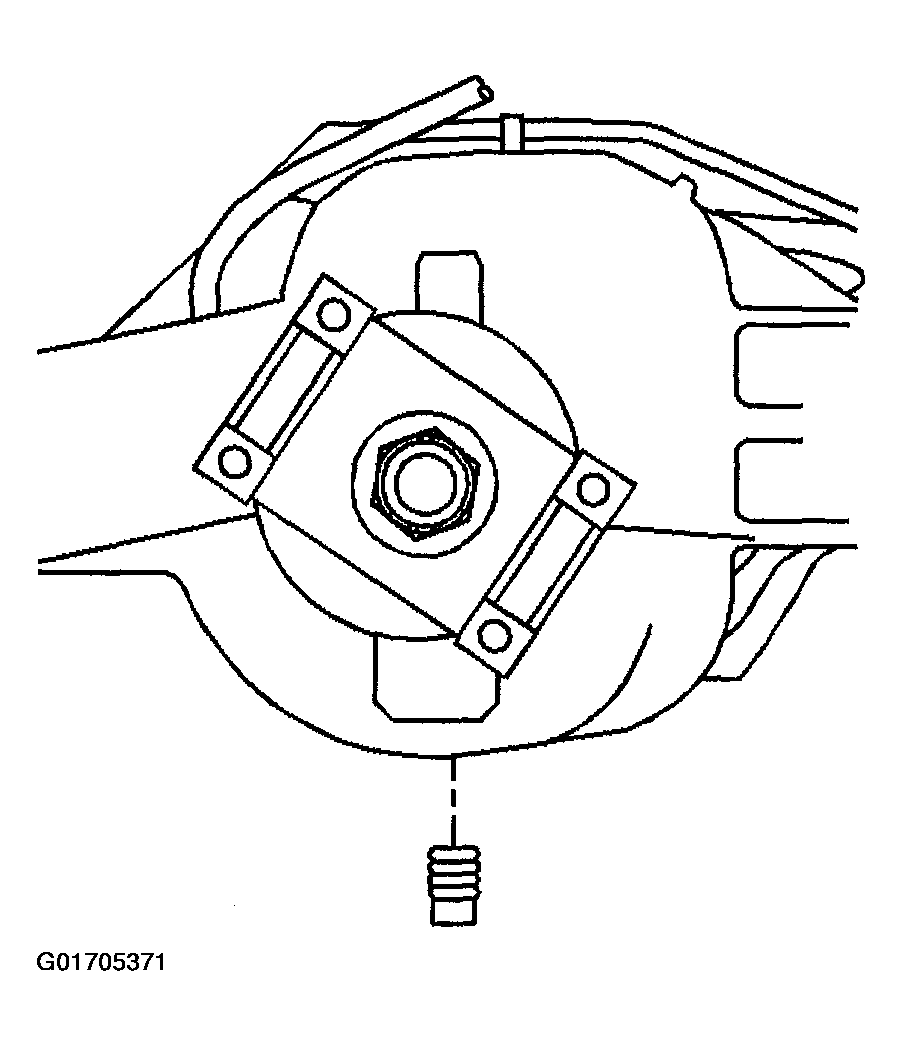

    2. Fig 1: Installing Rear Axle Drain Plug
    G01705371Courtesy of GENERAL MOTORS CORP.
  2. Fill the rear axle with axle lubricant. Use the proper fluid. Refer to Capacities - Approximate Fluid and Fluid and Lubricant Recommendations in Maintenance and Lubrication.
  3. Install the rear axle fill plug.

    Tighten

    Tighten the rear axle fill plug to 33 N.m (24 lb ft).

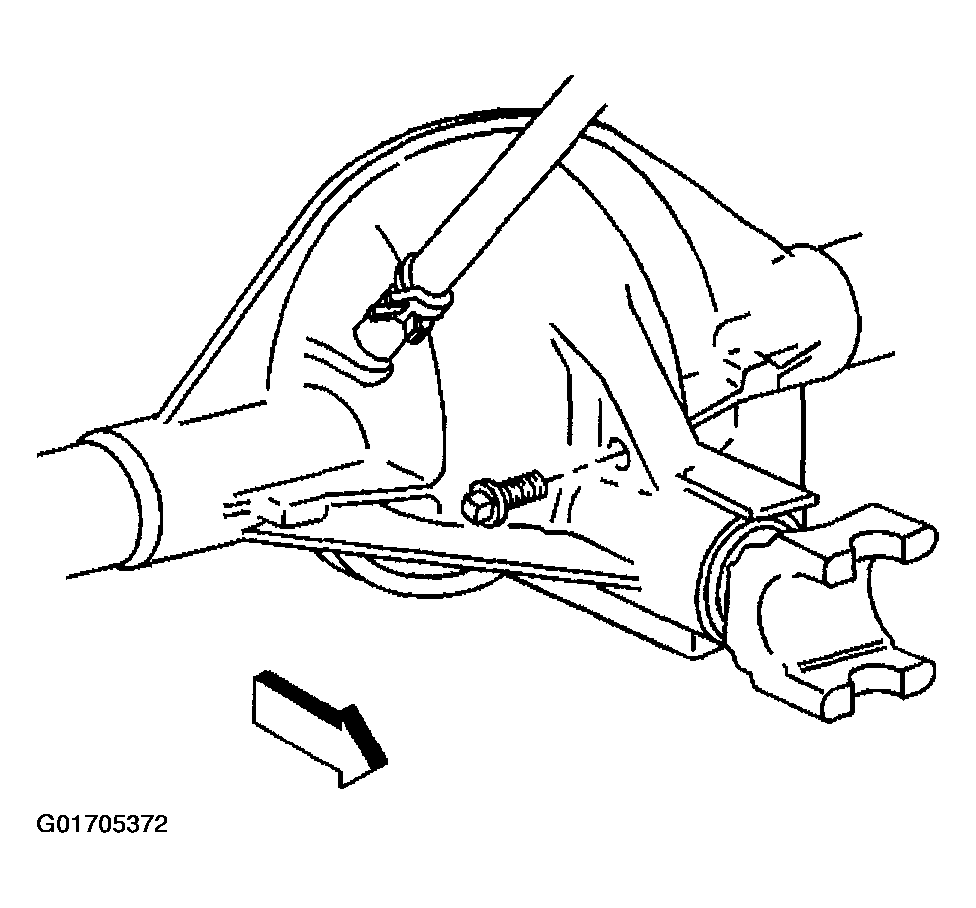

    4. Fig 2: Installing Rear Axle Fill Plug
    G01705372Courtesy of GENERAL MOTORS CORP.
  4. Lower the vehicle.
