Low Flank Contact Pattern: Condition

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

The pinion depth is incorrect. The pinion gear is too close to the ring gear.

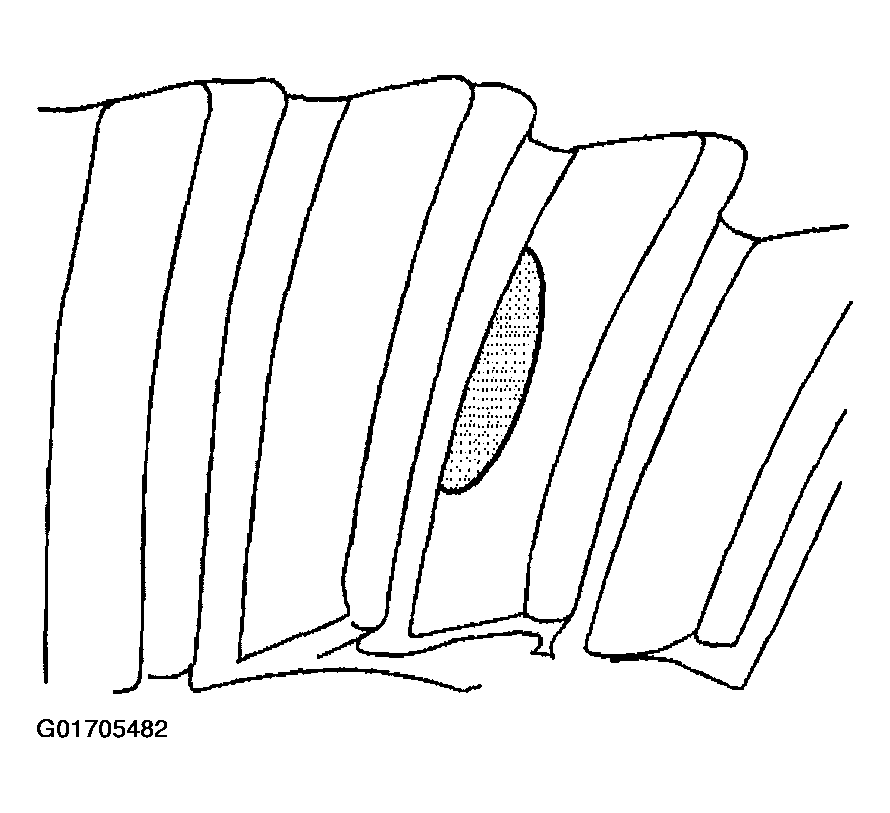

Fig 1: Low Flank Contact Pattern
G01705482Courtesy of GENERAL MOTORS CORP.
