Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the differential side bearings by doing the following:
    1. 1.1. In order to protect the differential case, install the J 8107-2 in the case on the side opposite the bearing installation.
    2. 1.2. Install the J 45231 (2) and the J 8092 (1) onto the differential case bearing as shown.

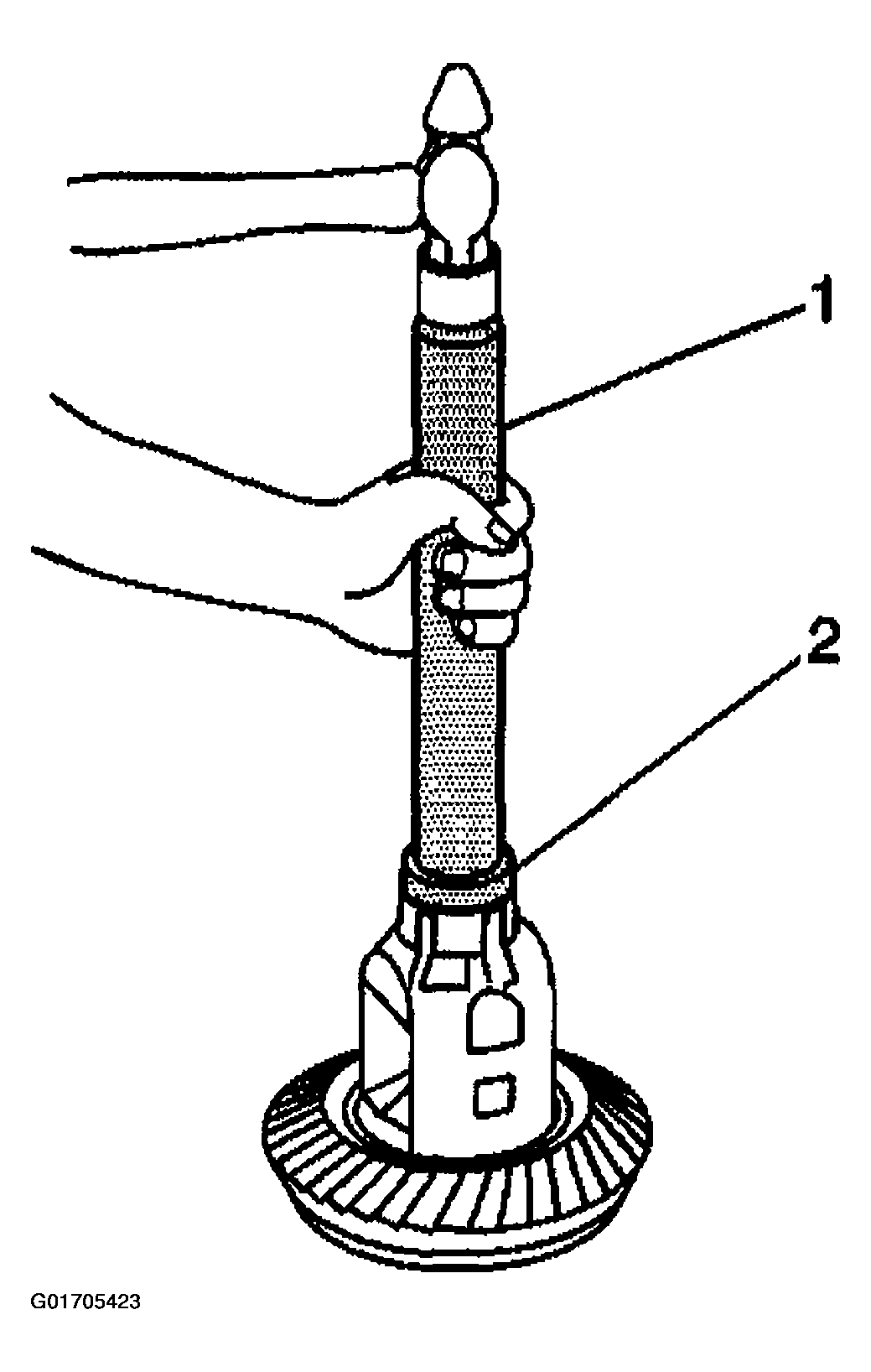

      3. Fig 1: Installing J 45231 And J 8092 Onto Differential Case Bearing
      G01705423Courtesy of GENERAL MOTORS CORP.
    3. 1.3. Drive the bearing onto the case using the J 45231 (2) and the J 8092 (1).
  2. Install the differential. Refer to Differential Replacement .
