Wheel Bearing Wear - Rear Drive Axle (Tapered): Indentations

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Surface depressions on the race and the rollers caused by hard particles of foreign matter. Clean all the parts and the housings. Check the seals. Replace rough or noisy bearings.

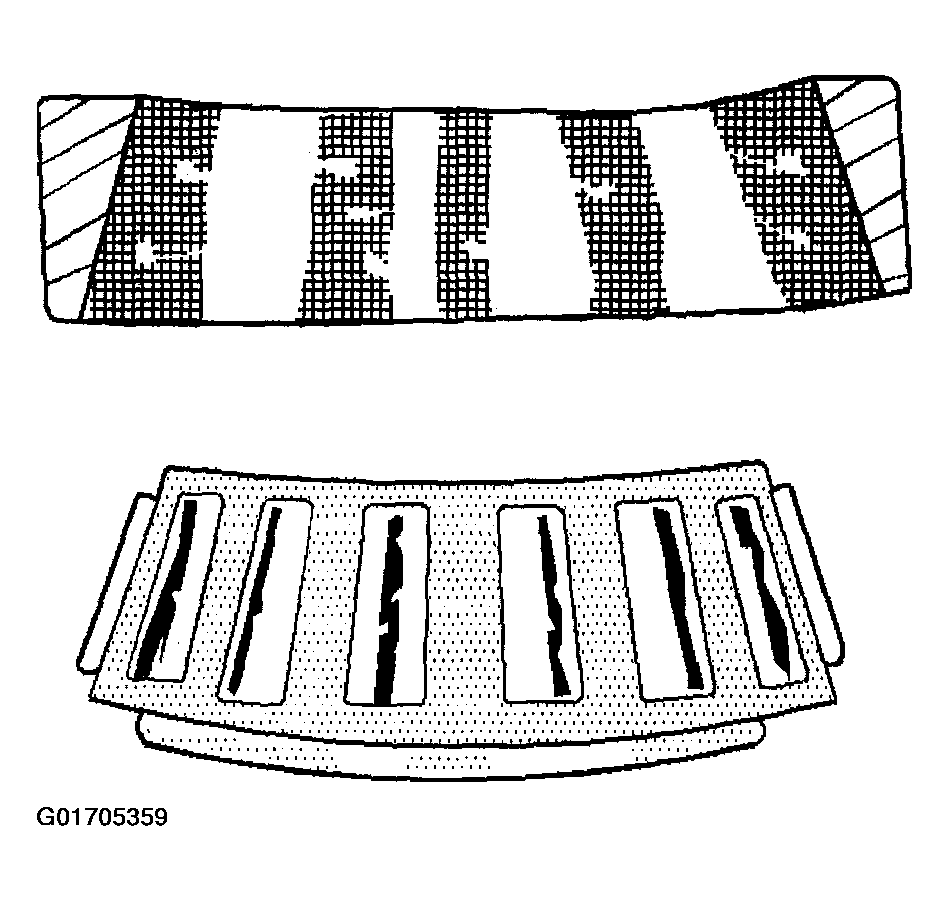

Fig 1: Wheel Bearing Indentations

Courtesy of GENERAL MOTORS CORP.
