Wheel Bearing Wear - Rear Drive Axle (Tapered): Galling

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Metal smears on the roller ends due to overheating, lubricant failure, or lubricant overload. Replace the bearing. Check the seals. Check for proper lubrication.

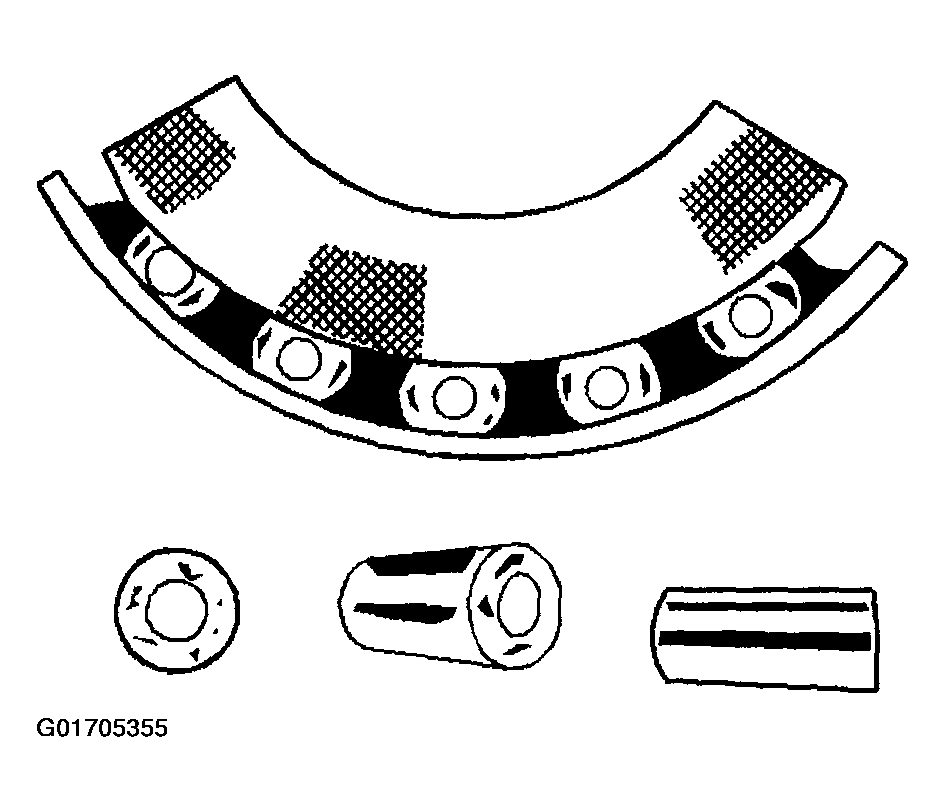

Fig 1: Wheel Bearing Galling
G01705355Courtesy of GENERAL MOTORS CORP.
