Wheel Bearing Wear - Rear Drive Axle (Tapered): Etching

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Bearing surfaces appear gray or grayish black in color, with related etching away of material usually at roller spacing. Replace the bearings. Check the seals. Check for proper lubrication.

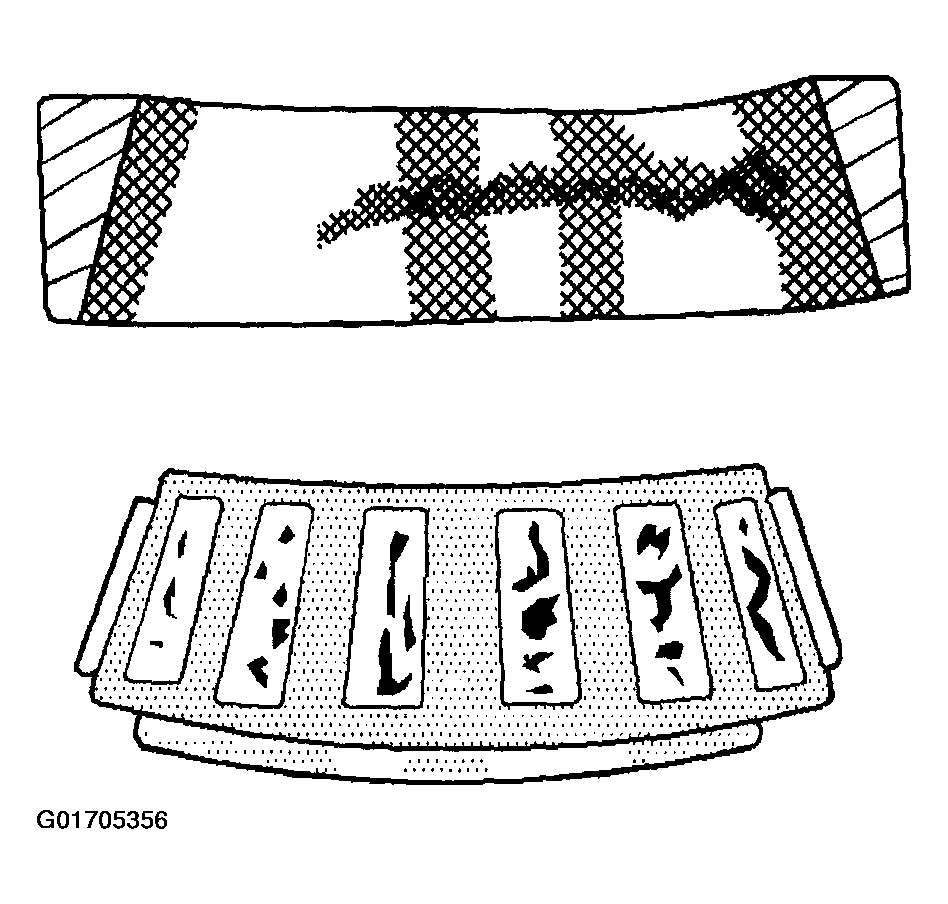

Fig 1: Wheel Bearing Etching

Courtesy of GENERAL MOTORS CORP.
