Wheel Bearing Wear - Rear Drive Axle (Tapered): Brinelling

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Surface indentations in the race way caused by the rollers under impact loading or caused from vibration while the bearing is not rotating. Replace a rough or noisy bearing.

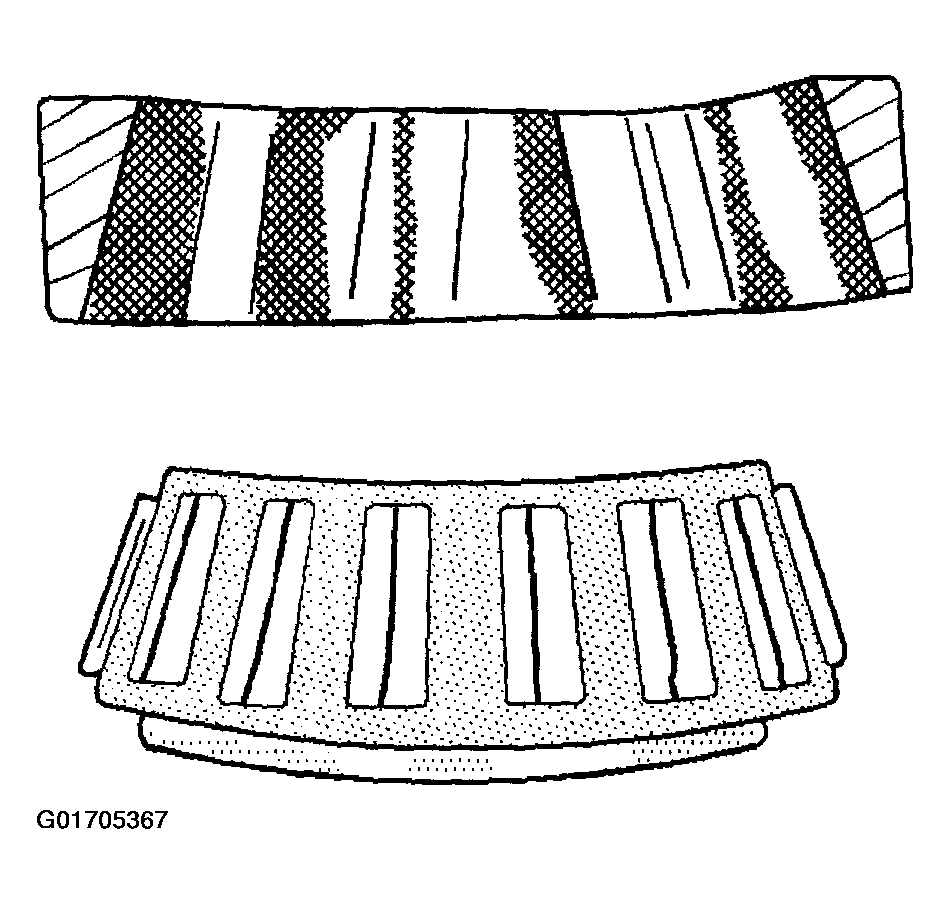

Fig 1: Wheel Bearing Brinelling
G01705367Courtesy of GENERAL MOTORS CORP.
