Bent Cage

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

A damaged cage due to improper handling or improper tool usage. Replace the bearing.

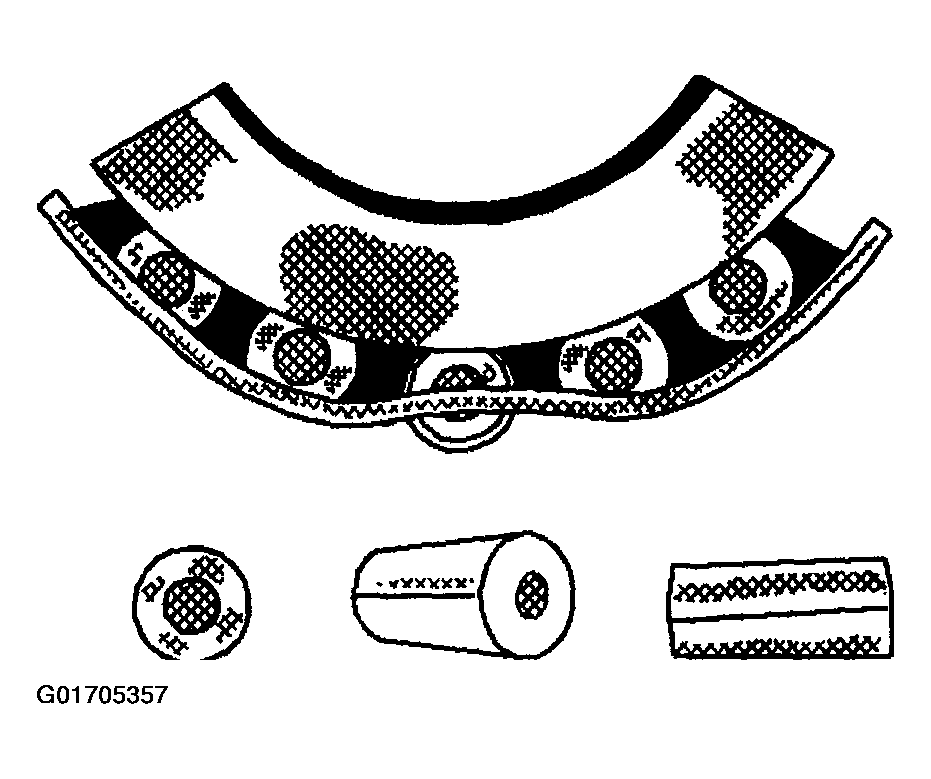

Fig 1: Wheel Bearing Bent Cage
G01705357Courtesy of GENERAL MOTORS CORP.
