Wheel Bearing Wear - Rear Drive Axle (Straight): Brinelling

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Surface indentations in the raceway can be caused by roll either under impact loading or vibration while the bearing is not rotating. Replace the bearing if rough or noisy. Replace the shaft if damaged.

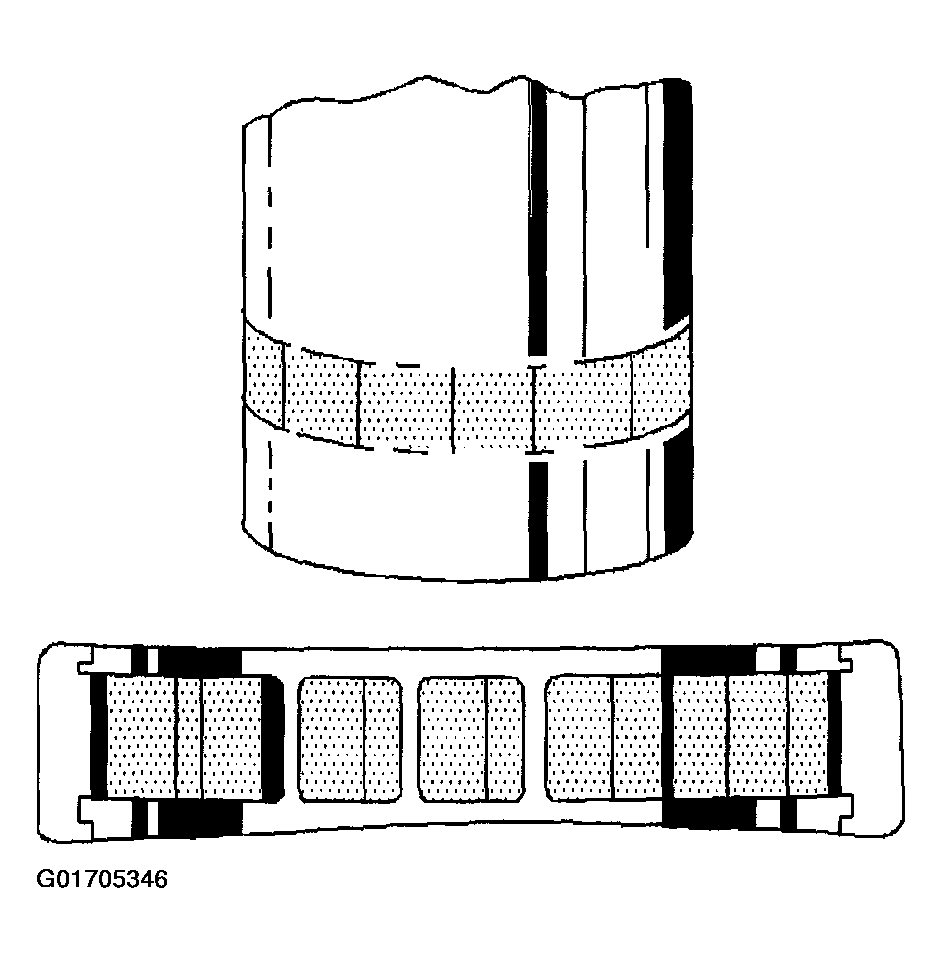

Fig 1: Wheel Bearing Brinelling

Courtesy of GENERAL MOTORS CORP.
