Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the splines of the slip yoke for a sufficient coating of grease. If the splines of the slip yoke does not have a sufficient coating of grease, lubricate the shaft with grease (GM P/N 12377985 or equivalent).
  2. Install the propeller shaft into the transmission or transfer case.

    Align the reference marks made during removal.

  3. Install the propeller shaft to the rear axle pinion yoke.

    Align the reference marks made during removal.

    4. Fig 1: Installing Propeller Shaft To Rear Axle Pinion Yoke
    G01705088Courtesy of GENERAL MOTORS CORP.
  4. Install the yoke retainers and the bolts.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

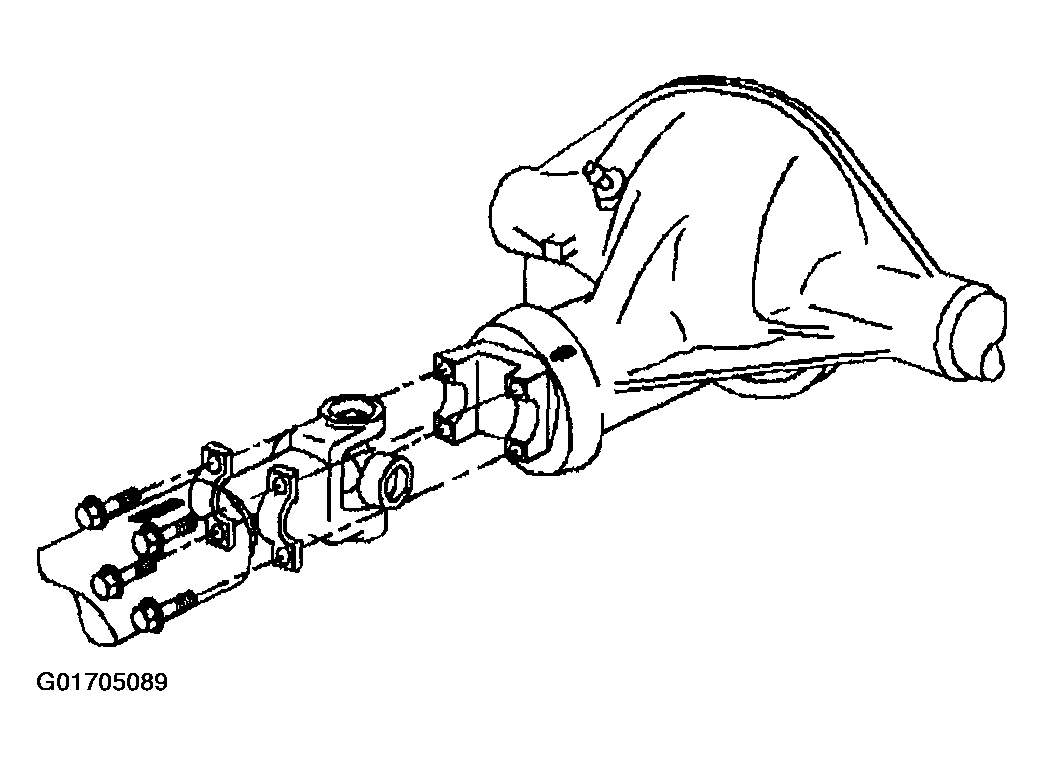

    5. Fig 2: Installing Yoke Retainers & Bolts
    G01705089Courtesy of GENERAL MOTORS CORP.
  5. Lower the vehicle.
