Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the EBCM from the vehicle. Refer to Electronic Brake Control Module (EBCM) Replacement .
    IMPORTANT: In the following service procedures, insert rubber plugs or caps on the exposed brake pipe fittings to prevent brake fluid loss and contamination.
  3. Remove the left front brake pipe.

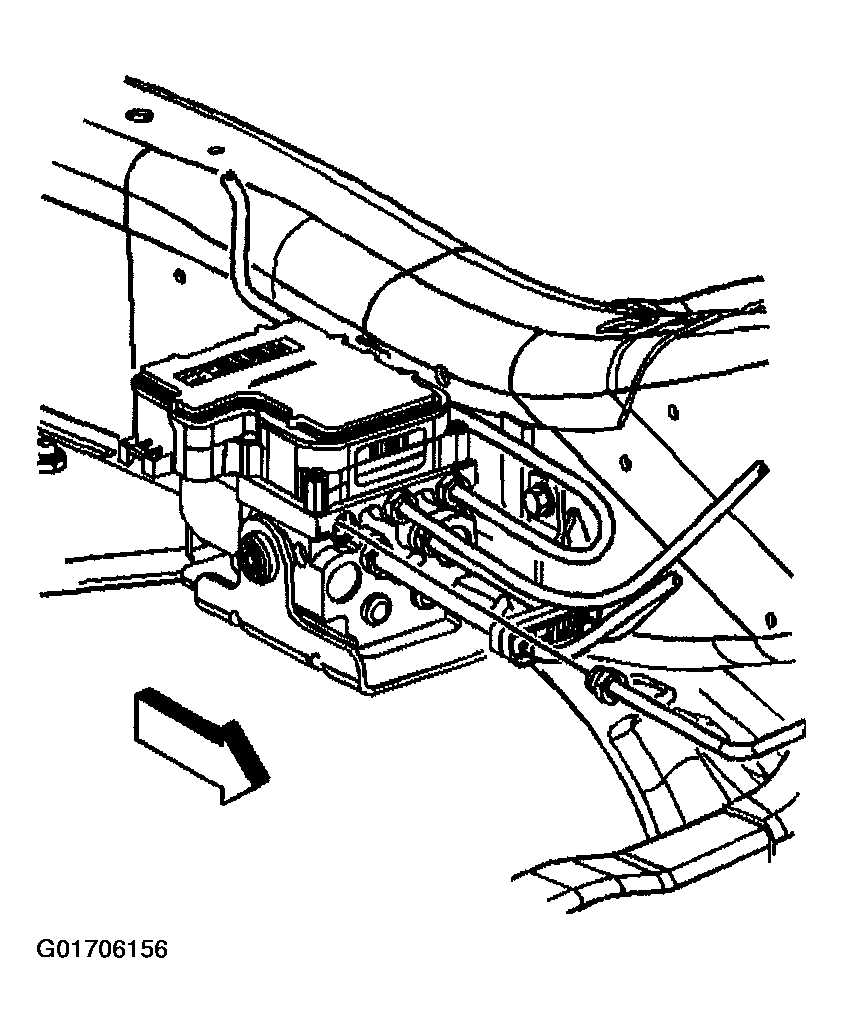

    4. Fig 1: Removing Left Front Brake Pipe
    G01706156Courtesy of GENERAL MOTORS CORP.
  4. Remove the right front brake pipe.

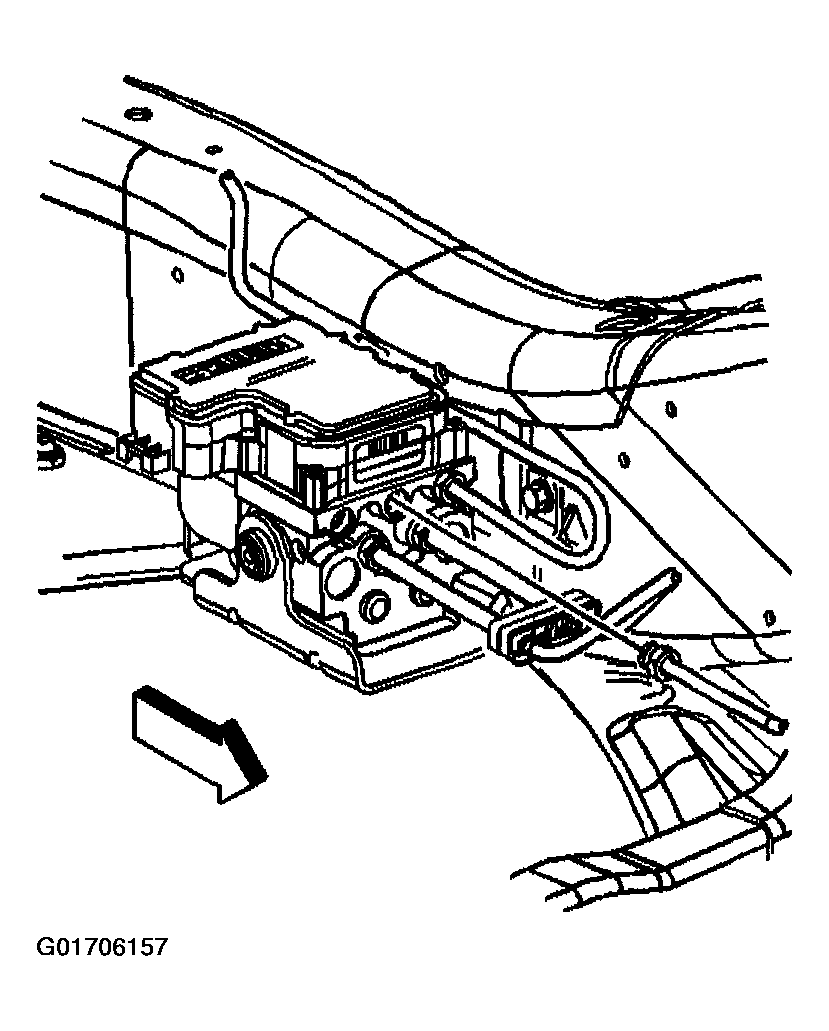

    5. Fig 2: Removing Right Front Brake Pipe
    G01706157Courtesy of GENERAL MOTORS CORP.
  5. Remove the rear brake pipe.

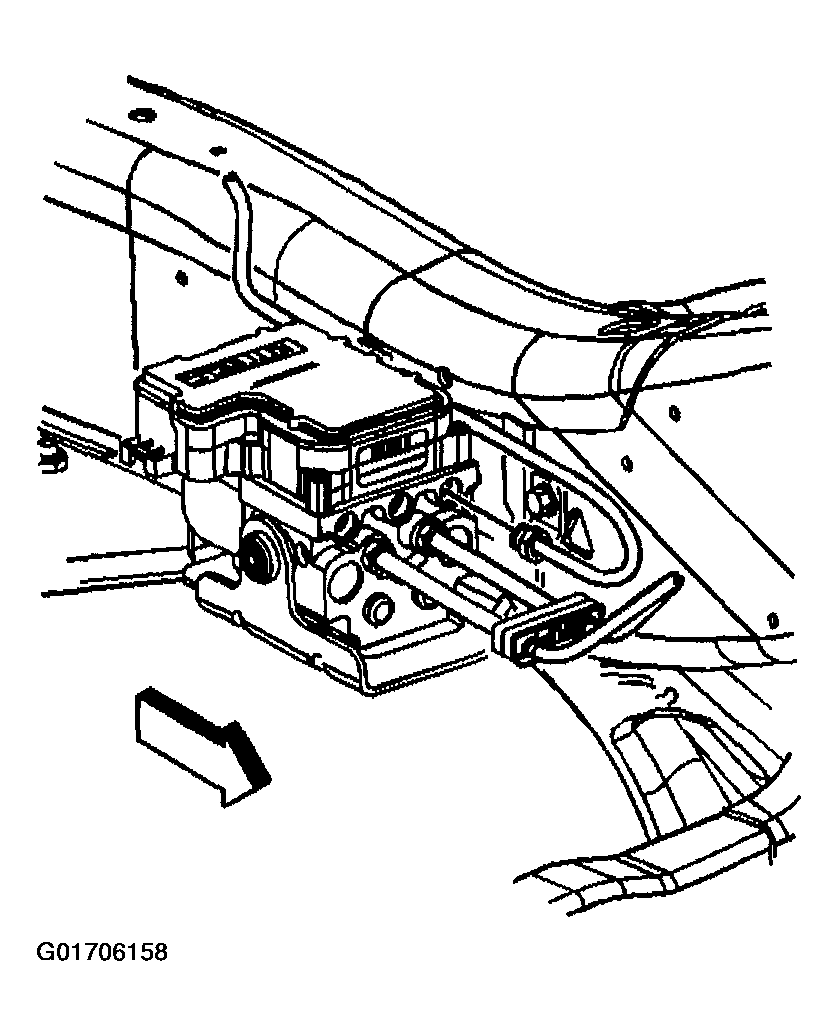

    6. Fig 3: Removimg Rear Brake Pipe
    G01706158Courtesy of GENERAL MOTORS CORP.
  6. Remove the brake pipe to the brake master cylinder.

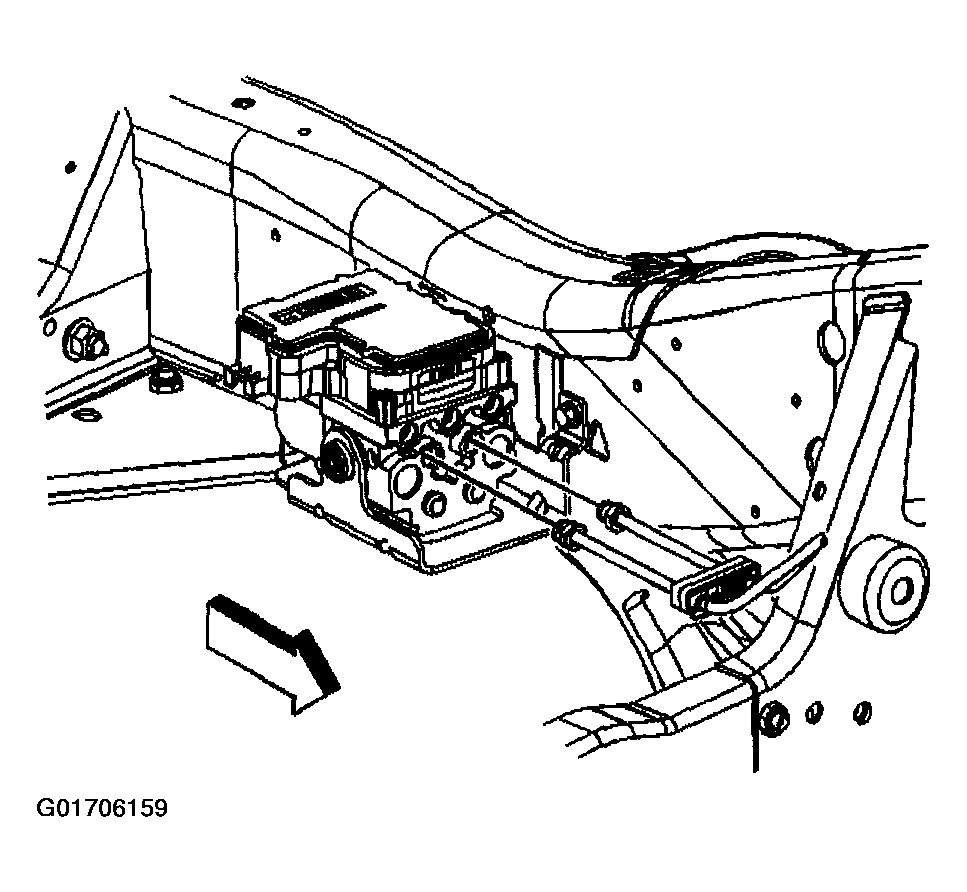

    7. Fig 4: Removing Brake Pipe To Brake Master Cylinder
    G01706159Courtesy of GENERAL MOTORS CORP.
