Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers in the diagnostic table.

  1. 2.  Lack of communication may be due to partial or total malfunction of the class 2 serial data circuit. The specified procedure will determine the particular condition.
  2. 4.  The presence of DTCs that begin with a "U" indicates that some other module is not communicating. The specified procedure will compile all of the available information before tests are performed.

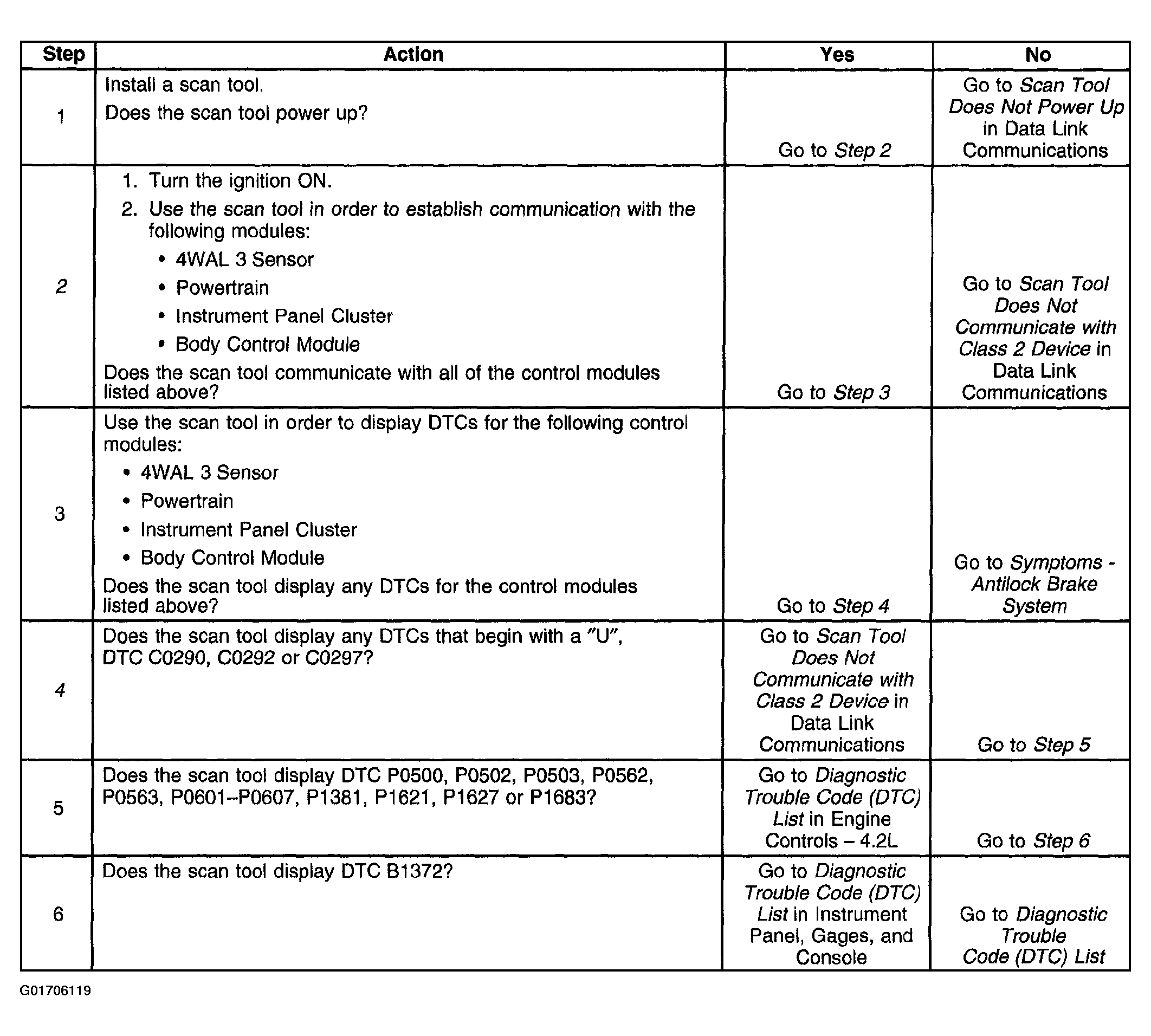

Fig 1: Diagnostic System Check - ABS
G01706119Courtesy of GENERAL MOTORS CORP.
