Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 4.  This step tests the traction control switch circuitry. If the fuse opens when you perform this test, the traction control switch signal circuit is shorted to ground.

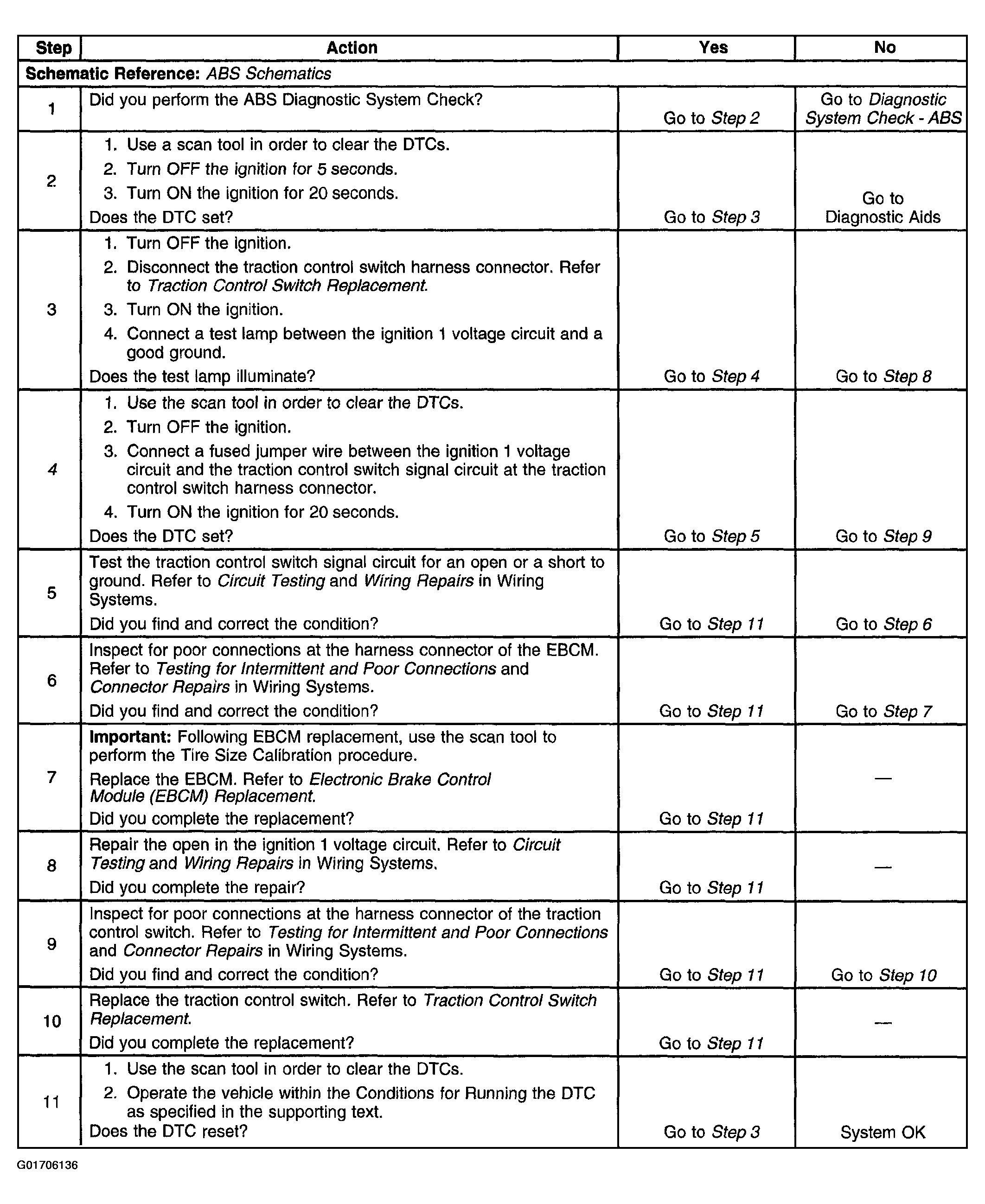

Fig 1: DTC C0283 (w/NW7) Table
G01706136Courtesy of GENERAL MOTORS CORP.
