Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table:

  1. 2.  Performing solenoid tests determines if there is a mechanical malfunction inside the BPMV. Perform dump valve solenoid tests for DTC C0269 or isolation valve solenoid tests for DTC C0274.

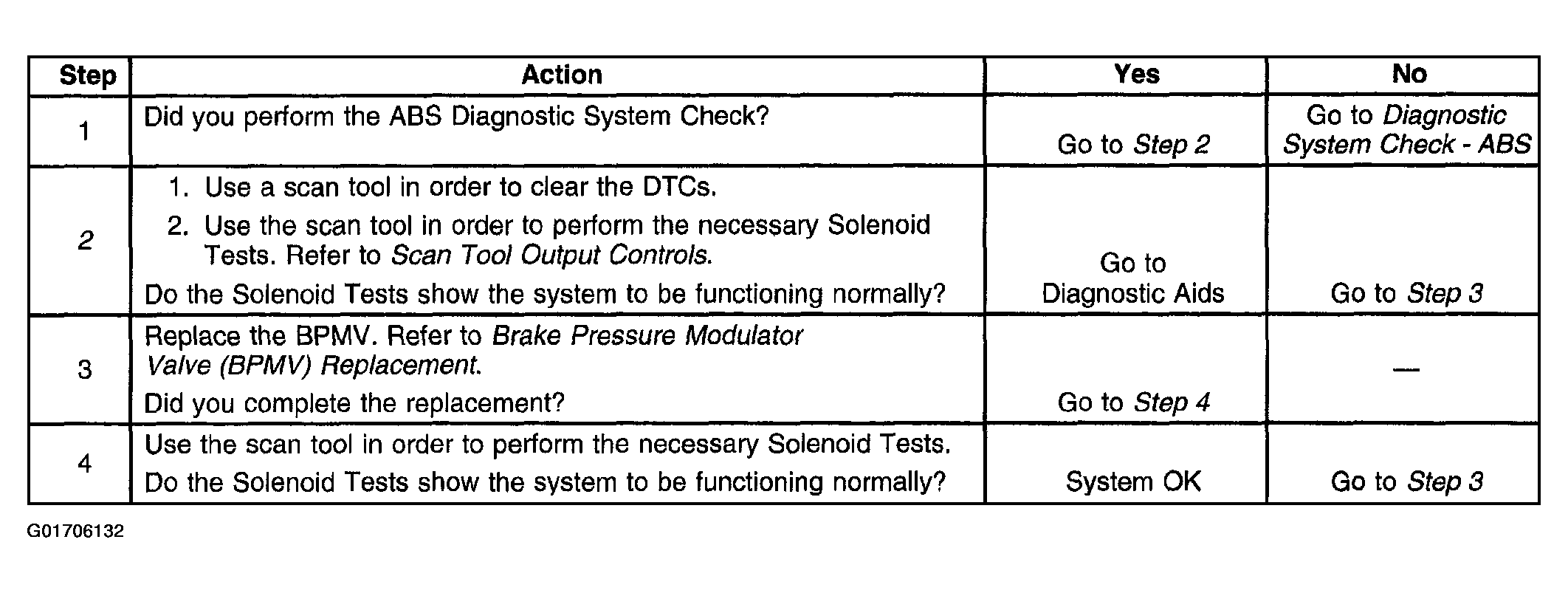

Fig 1: DTC C0269 Or C0274 Table
G01706132Courtesy of GENERAL MOTORS CORP.
