Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat assembly. Refer to SEAT REPLACEMENT-REAR (2-DOOR UTILITY) or SEAT REPLACEMENT-REAR (4-DOOR UTILITY) or SEAT REPLACEMENT-REAR (CREW CAB) in Seats.
  2. Remove the lower seat belt anchor plate from the rear seat bolt.

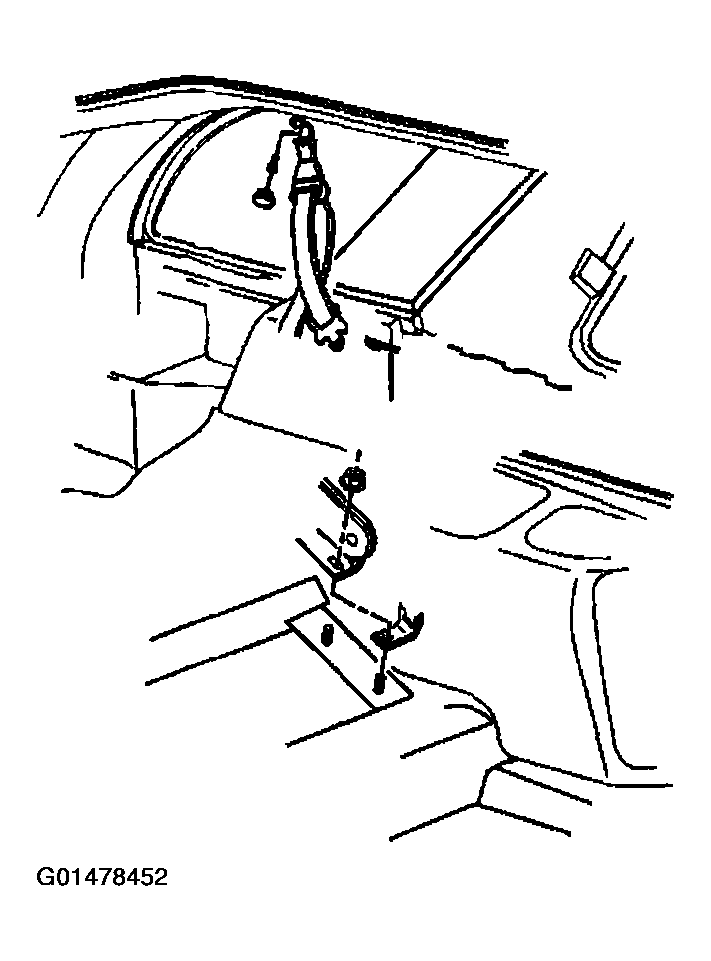

    Fig 1: Removing Lower Seat Belt Anchor Plate (Utility)
    G01478452Courtesy of GENERAL MOTORS CORP.
  3. Remove the upper seat belt anchor bolt cover.

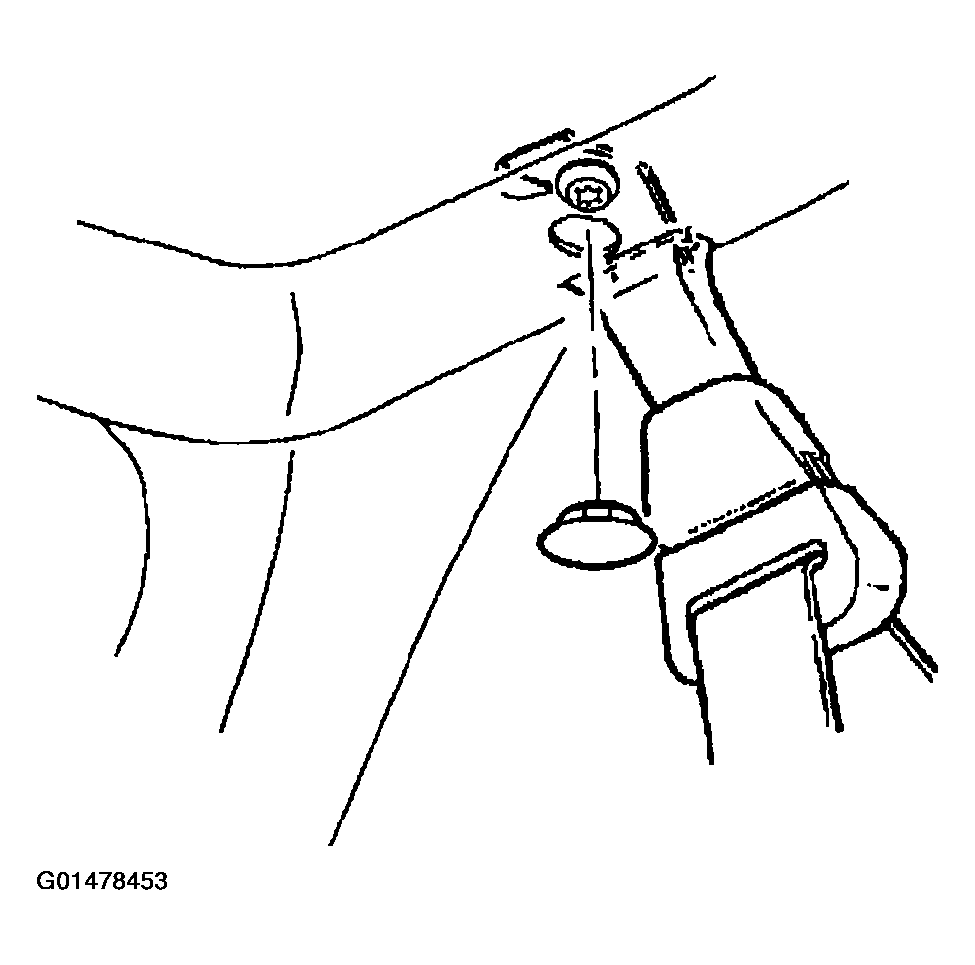

    Fig 2: Removing Upper Seat Belt Anchor Bolt Cover (Utility)
    G01478453Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolt that retains the upper seat belt anchor plate.
  5. Remove the body side trim panel. Refer to TRIM PANEL REPLACEMENT-BODY SIDE (STANDARD CAB PICKUP) or TRIM PANEL REPLACEMENT-BODY SIDE (EXTENDED CAB PICKUP) or TRIM PANEL REPLACEMENT-BODY SIDE (2-DOOR UTILITY) or TRIM PANEL REPLACEMENT-BODY SIDE (4-DOOR UTILITY) or TRIM PANEL REPLACEMENT-BODY SIDE (CREW CAB) in Interior Trim.
  6. Guide the seat belt through the opening in the body side trim panel.

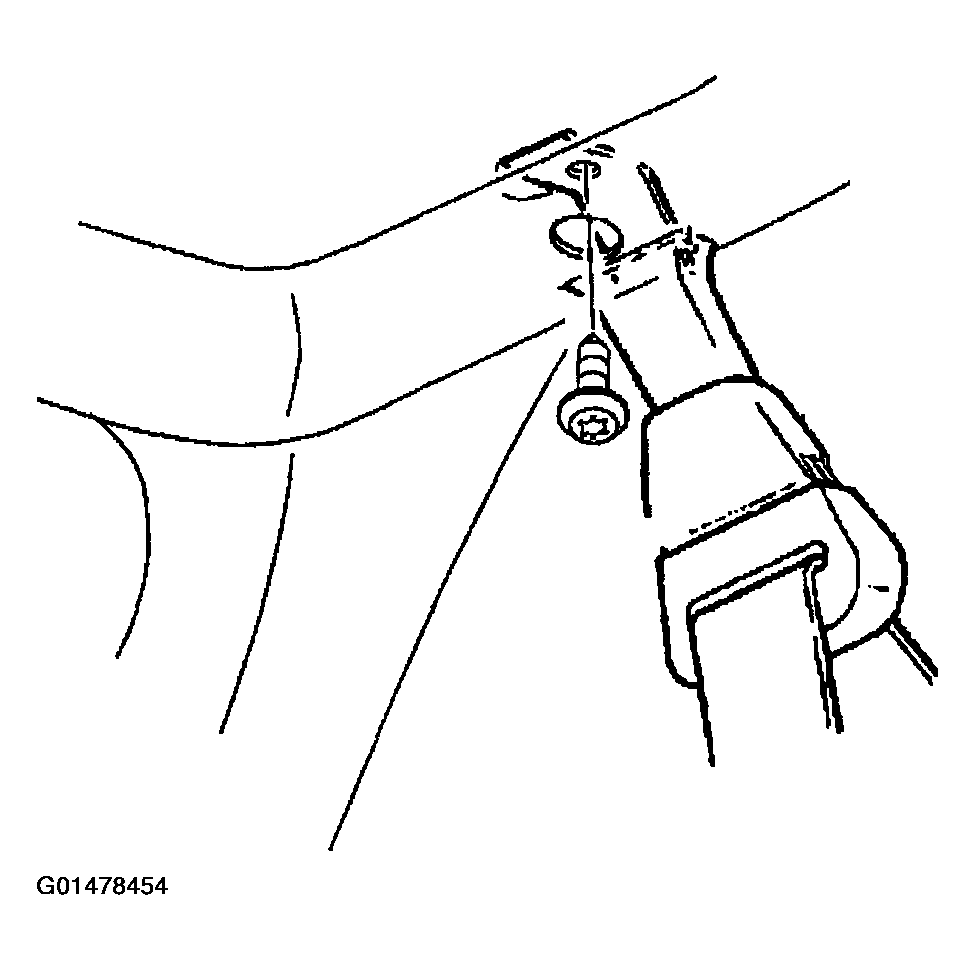

    Fig 3: Removing Upper Seat Belt Anchor Plate Bolt (Utility)
    G01478454Courtesy of GENERAL MOTORS CORP.
  7. Remove the bolt that retains the seat belt retractor assembly to the vehicle.
  8. Remove the seat belt retractor assembly from the vehicle.

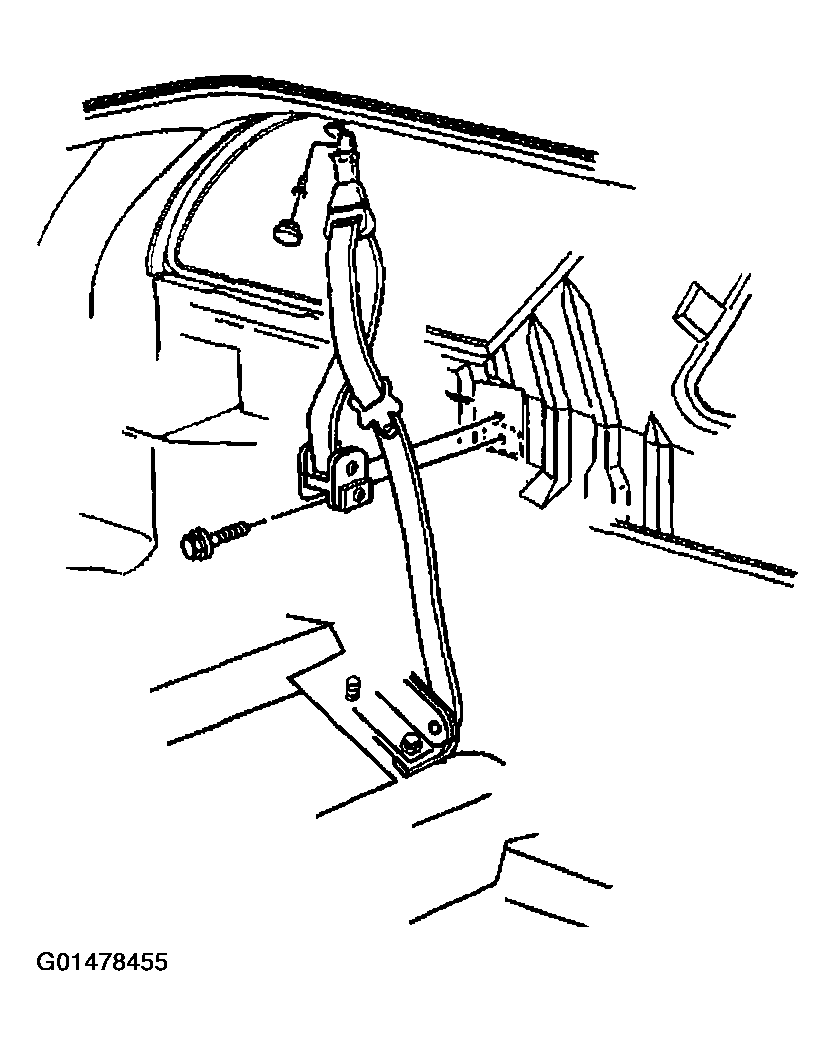

    Fig 4: Removing Rear Seat Belt Retractor Assembly (Utility)
    G01478455Courtesy of GENERAL MOTORS CORP.
