Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fold the jumpseat seat back down to access the jumpseat seat belt.
  2. Remove the jumpseat seat belt retaining bolt.
  3. Remove the jumpseat seat belt.

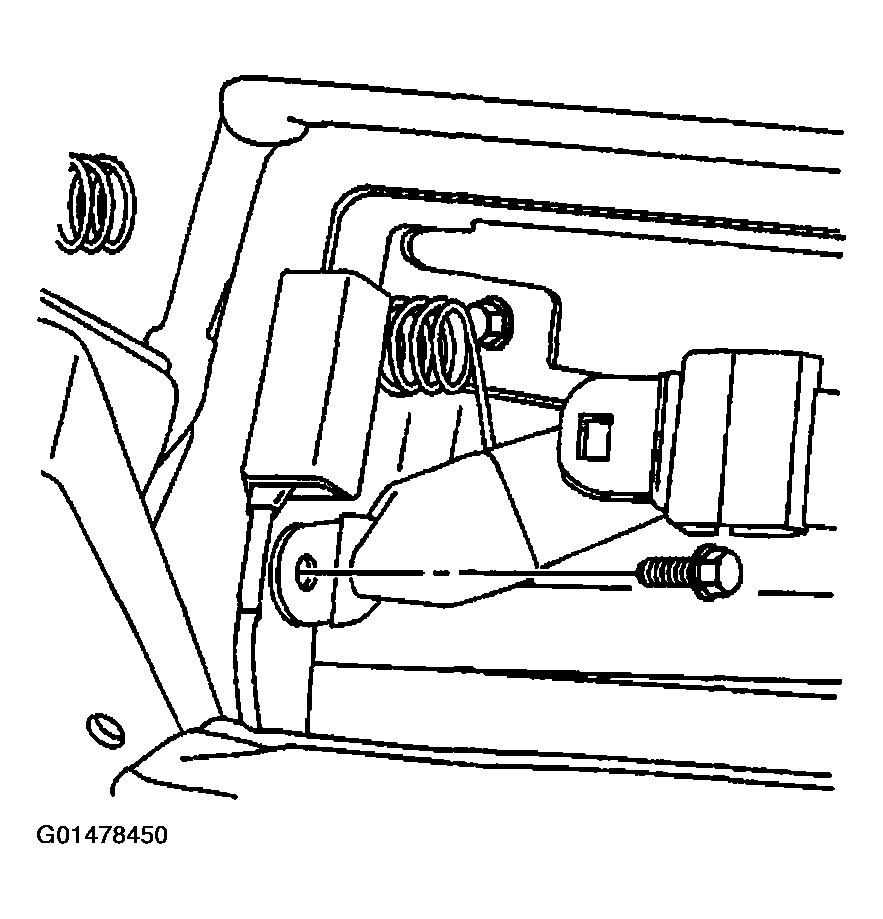

    Fig 1: Removing Jumpseat Seat Belt Retaining Bolt
    G01478450Courtesy of GENERAL MOTORS CORP.
