Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the seat belt retractor assembly to the vehicle.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the bolt that retains the seat belt retractor assembly to the vehicle.
Tighten

Tighten the seat belt retractor assembly bolt to 70 N.m (52 lb ft).

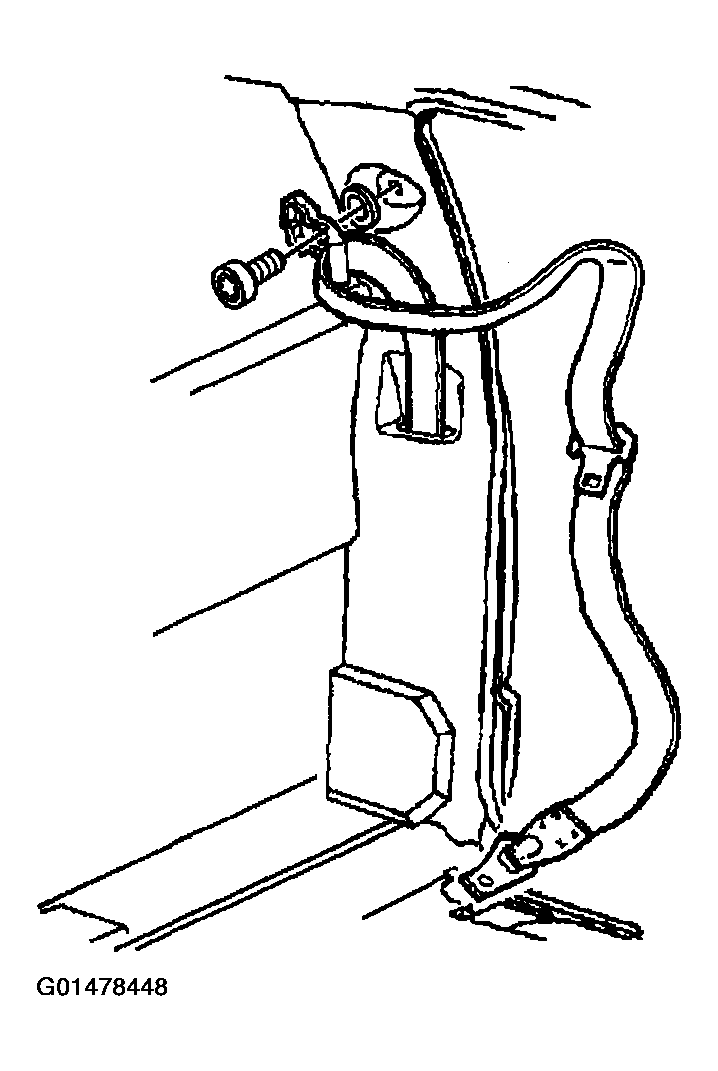

Fig 1: Installing Seat Belt Retractor Assembly
Courtesy of GENERAL MOTORS CORP.
Guide the seat belt through the opening in the body side trim cover.
Install the body side trim panel. Refer to TRIM PANEL REPLACEMENT-BODY SIDE (STANDARD CAB PICKUP) or TRIM PANEL REPLACEMENT-BODY SIDE (EXTENDED CAB PICKUP) or TRIM PANEL REPLACEMENT-BODY SIDE (2-DOOR UTILITY) or TRIM PANEL REPLACEMENT-BODY SIDE (4-DOOR UTILITY) or TRIM PANEL REPLACEMENT-BODY SIDE (CREW CAB) in Interior Trim.
Install the seat belt opening trim cover by firmly pressing the cover into place.

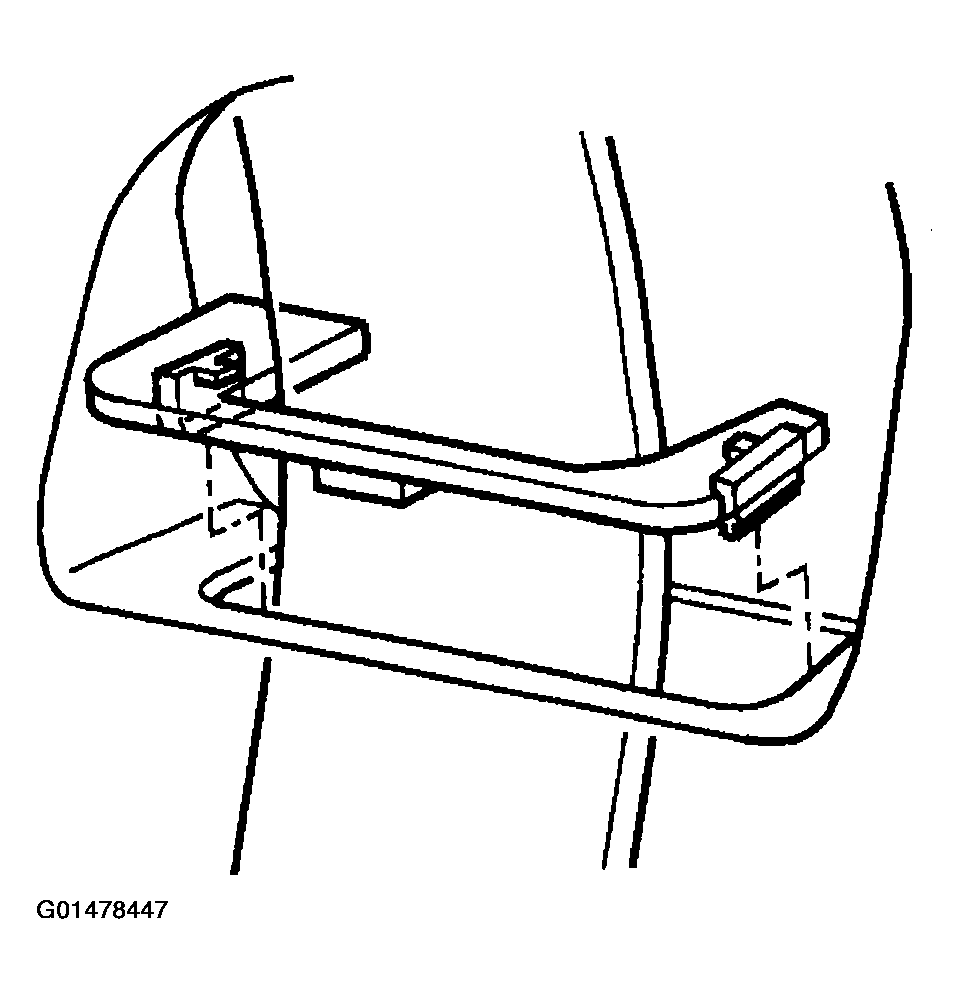

Fig 2: Installing Seat Belt Opening Trim Cover
Courtesy of GENERAL MOTORS CORP.
Install the upper seat belt anchor plate and bolt to the vehicle.
Tighten

Tighten the upper seat belt anchor plate bolt to 70 N.m (52 lb ft).
Close the upper seat belt anchor plate cover.

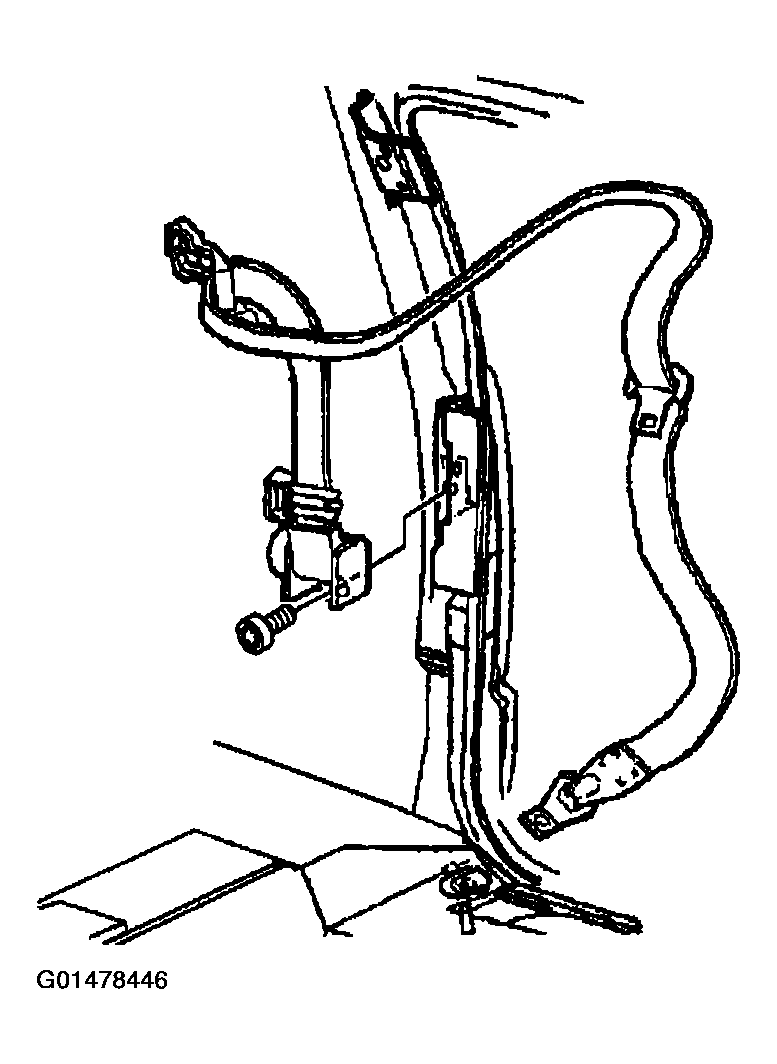

Fig 3: Installing Upper Seat Belt Anchor Plate & Bolt
Courtesy of GENERAL MOTORS CORP.
Install the lower seat belt anchor plate and bolt to the vehicle.
Tighten

Tighten the lower seat belt anchor plate bolt to 70 N.m (52 lb ft).

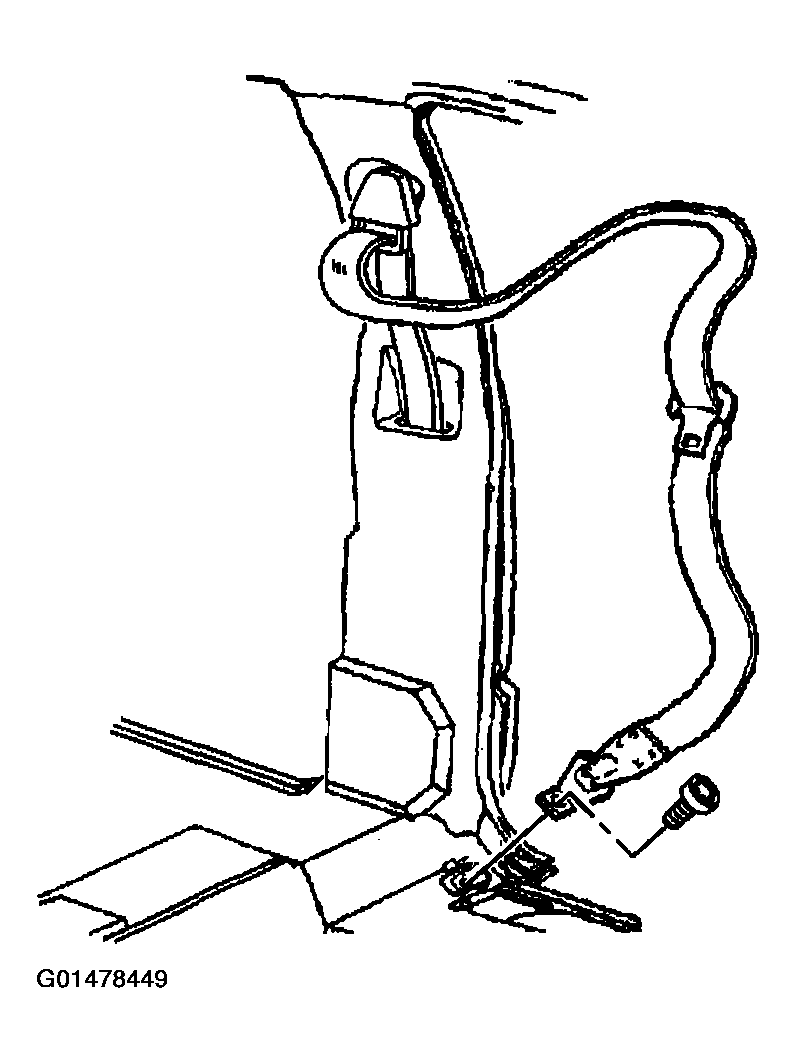

Fig 4: Installing Lower Seat Belt Anchor Plate & Bolt
Courtesy of GENERAL MOTORS CORP.
