Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 2 bolts securing the rear seat bottom cushion to the floor.
  2. Carefully pull on the rear seat cushion ears to release the retainers from the rear seat back mounting bracket.
  3. Remove the rear seat bottom cushion.

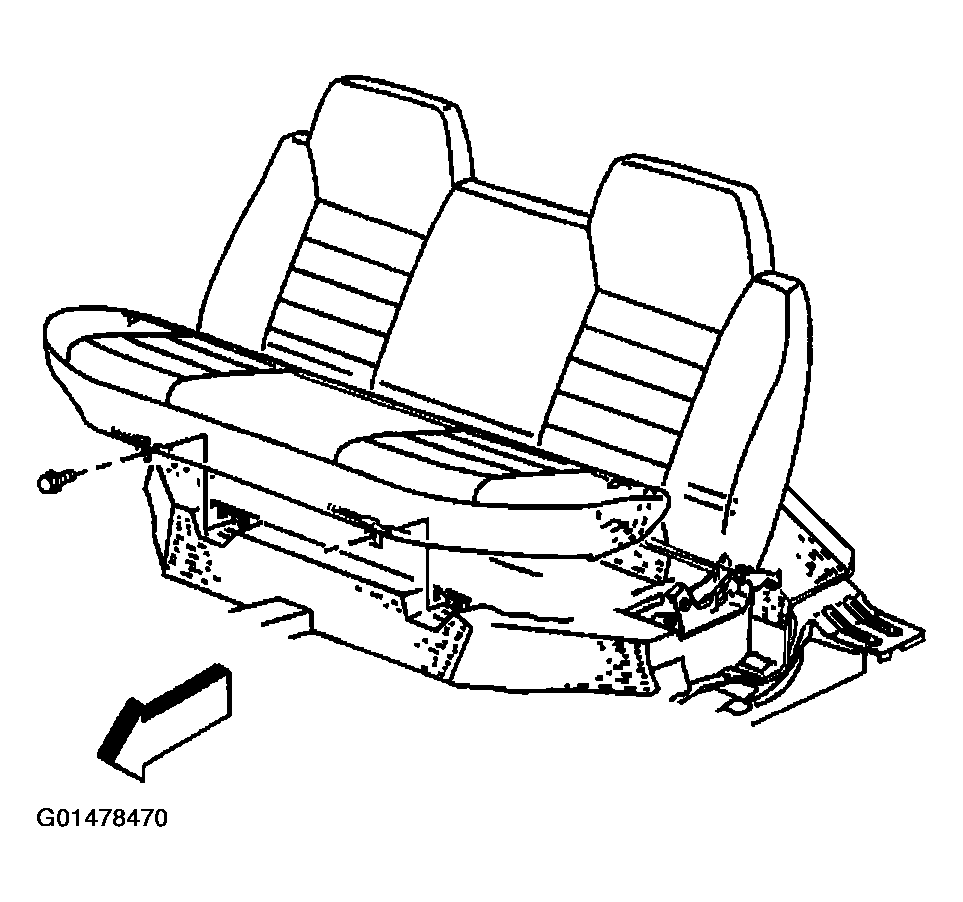

    Fig 1: Removing Rear Seat Bottom Cushion (Crew Cab)
    G01478470Courtesy of GENERAL MOTORS CORP.
  4. Remove the center rear seat belt assembly retaining nuts from the vehicle.
  5. Remove the center rear seat belt assembly from the vehicle.

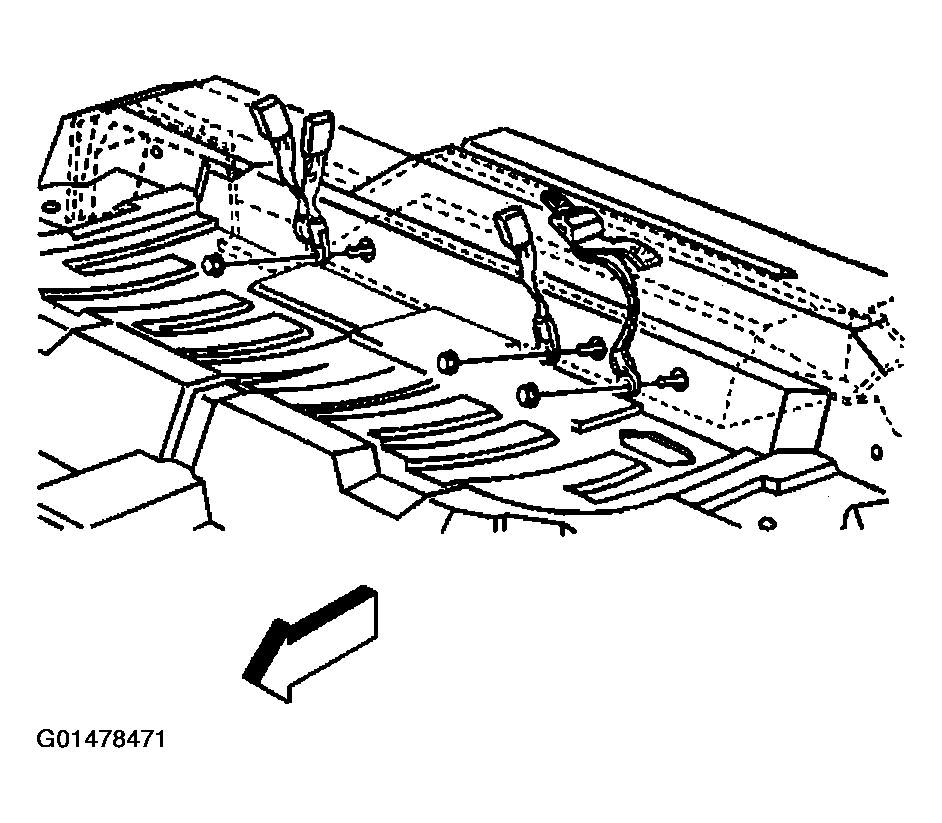

    Fig 2: Removing Center Rear Seat Belt Assembly (Crew Cab)
    G01478471Courtesy of GENERAL MOTORS CORP.
